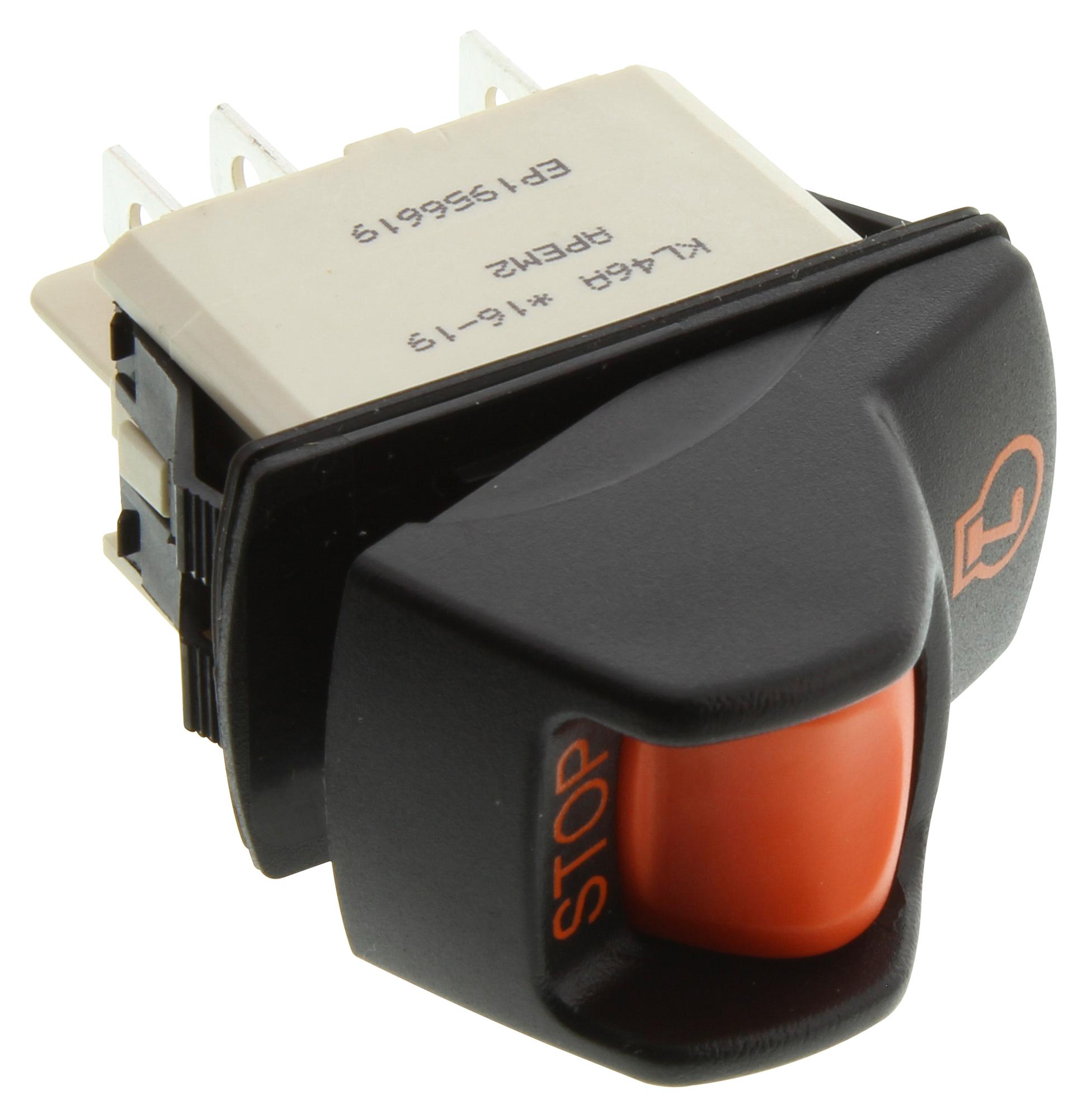

Apem KL462AKXA129N067Z9 Locking Power Switch
The KL series locking power rocker switches combine distinctive ergonomic design, laser-etched symbols, and optional sealing up to IP69K for enhanced water and dust resistance. They feature protected ON/OFF positions, high electrical ratings, and mechanical durability with a life cycle of at least 150,000 cycles. Made with robust materials like PA 6-6 and ABS, they support various mounting configurations, panel thicknesses, and sealing options, making them suitable for demanding industrial or vehicle applications. These switches include illuminated and non-illuminated options with multiple contact configurations and customizable wiring connectors. Their environmental resilience and high current ratings ensure long-lasting, reliable operation in harsh conditions.
Apem KL462AKXA129N067Z9 Locking Power Switch Specifications:
- Electrical Ratings: 5 A 24 VDC resistive, 10 A 24 VDC, 20 A 12 VDC; Gold plated contacts (D) rated for 20 mA 12 V, 150,000 cycles; Silver contacts rated for 5 A 24 VDC, 10 A 24 VDC, 20 A 12 VDC.
- Mechanical Life: Minimum 150,000 cycles.
- Operating Temperature: -40°C to +85°C.
- Mounting: Panel thickness 0.8 mm to 4.6 mm, recommended 2 mm to 3.5 mm.
- Sealing Options: None, IP68 (front panel only), IP69K (full panel sealing). Ultrasonic welding standard; optional sealing available.
- Materials: Case – PA 6-6, Actuator – ABS, Bezel – PA 6-6, Contacts & Terminals – Brass silver grain or gold plated.
- Dimensions: Standard panel cut-out varies per configuration, plug-in connectors include 6 and 10 terminal versions with barrier or non-barrier types.
- Standards & Resistance: Water and petrol resistant per EN61058-1, UV resistant per ISO 4892-2, tear resistance NF ISO 2409: class 0.
- Environmental: Salt spray resistant for 96 hours, suitable for demanding industrial environments.
- Electrical Connections: Screw, solder lug, quick-connect, normalized quick-connect options, compatible with various terminal types (6.35x0.8 mm, 28x0.8 mm).
- Symbol Markings: Laser etched symbols per ISO 7000, UV and water resistant, available in illuminated versions with LED options.
Buy the APEM Series Locking Power Rocker Switch: KL462AKXA129N067Z9
Order the APEM Locking Power Switch KL462AKXA129N067Z9 online today for durable, high-current operation in industrial and transportation applications. Featuring IP69K sealing, robust materials, and illuminated options, this switch guarantees long-lasting performance even in severe environments. Whether you need a single or double-pole switch, it supports panel thicknesses from 0.8 mm to 4.6 mm and includes various wiring and connector options for easy installation. Experience dependable control in demanding conditions with this versatile, high-quality switch.
Get APEM KL462AKXA129N067Z9 today—built for precision, reliability, and harsh environment durability.
