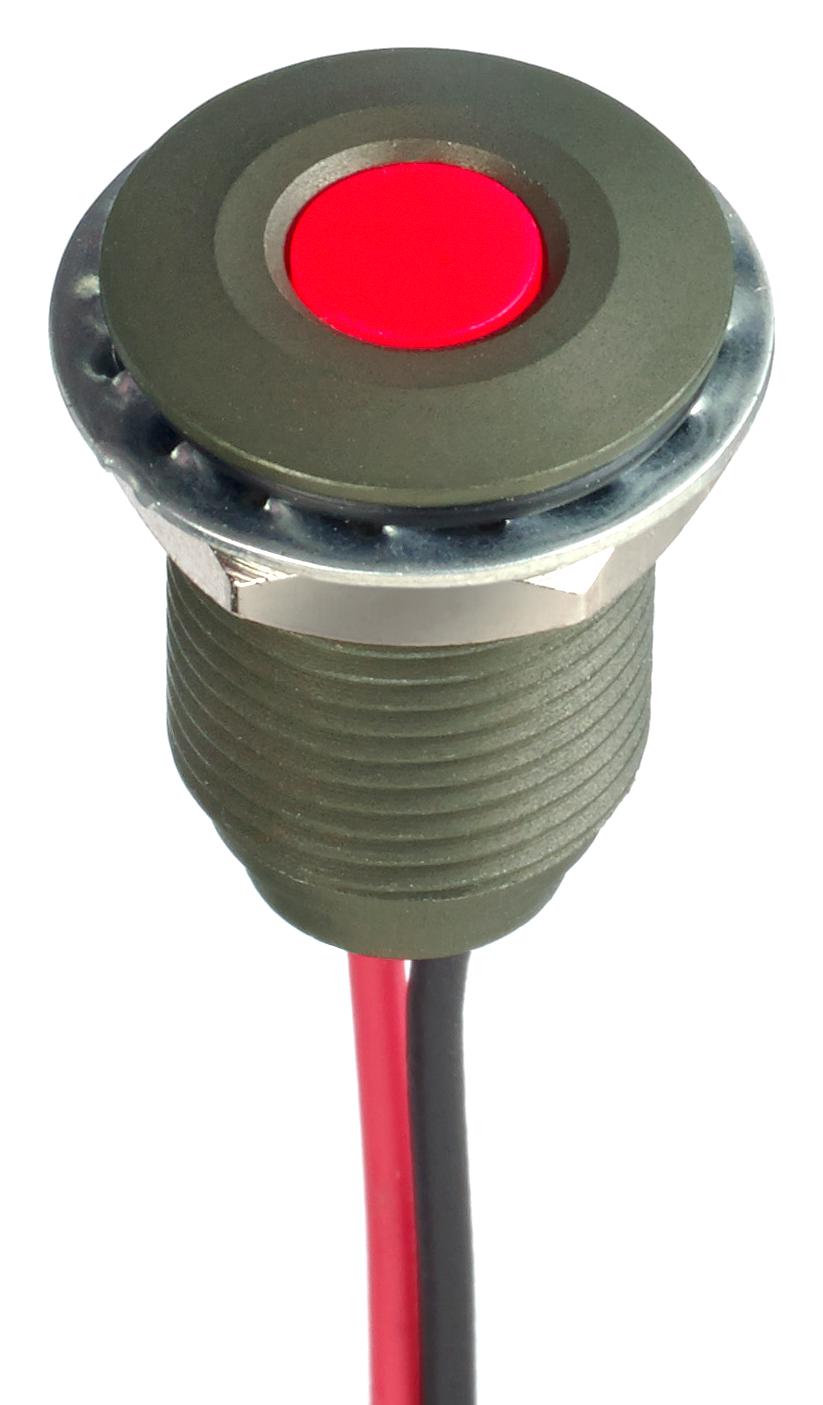

Apem Q10F5AKXXR02E Panel Mount LED Indicator
The Q10 series 10 mm panel mount LED indicators feature a flush diffused LED with options for hyper bright, water clear, or standard brightness. These LEDs are available in RGB, bi-color, and tri-color configurations, with a flush chamfered bezel style and 200 mm wire terminations. Suitable for environments requiring IP67 sealing, they operate across a temperature range of -40°C to +85°C, with a lifespan of 100,000 hours. Constructed from stainless steel or anodized aluminum, these indicators are designed for reliable performance in industrial settings, with viewing angles of approximately 60° and maximum panel thickness of 7 mm.
Apem Q10F5AKXXR02E Panel Mount LED Indicator Specifications:
- Size: 10 mm panel mount
- LED Types: Diffused, Hyper Bright, Water Clear
- Color Options: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Voltage Range: 1.8V to 28V DC, depending on configuration
- Viewing Angle: Approximately 60°
- Lifespan: 100,000 hours
- Sealing: IP67 option available
- Operating Temperature: -40°C to +85°C
- Material: Stainless Steel 316L or Anodized Aluminum
- Panel Thickness: Max 7 mm
- Wire Length: 200 mm standard
- Current: 20 mA max
- Reverse Voltage: 5 V
- Mounting: Flush bezel style with mounting hole
- Bezel Finish: Metal or Anodized
- Wire Terminations: Rear epoxy wires
- Additional Features: Water resistant, suitable for harsh environments
Buy the Buy Industrial LED Indicators Part Number Q10F5AKXXR02E Online
Order the Q10 series 10 mm panel mount LED indicators online today. Designed for industrial applications, these LEDs offer IP67 sealing, long lifespan, and excellent brightness options including hyper bright, RGB, bi-color, and tri-color configurations. Constructed from durable materials like stainless steel and anodized aluminum, they ensure reliable operation in harsh environments with operating temperatures from -40°C to +85°C. With a standard 200 mm wire termination and flush bezel design, these indicators are ideal for panel mounting in complex control and automation projects.
Get Q10 series LED indicators today—built for durability and reliable performance in industrial environments.
