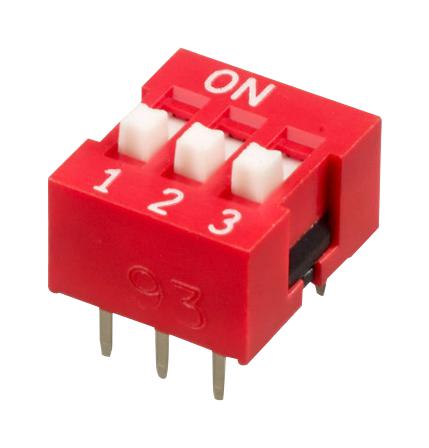

Apem NDS03V dual in line switch
The NDS series consists of standard profile dual in line switches with 1 to 12 ways featuring self-cleaning wiping contacts, gold-plated terminals, and washable construction with tape seal. Designed for reliable performance, these switches operate within a temperature range of -40 °C to +85 °C, handling up to 25 mA at 24 VDC and 100 mA at 50 VDC. Made from durable PBT and PA66 materials, they ensure long-lasting mechanical and electrical functionality suitable for various industrial and electronic applications.
Apem NDS03V dual in line switch Specifications:
- Number of ways: 1 to 12
- Self-cleaning wiping contacts
- Gold-plated terminals and contact material
- Operating Temperature: -40 °C to +85 °C
- Switching Max. Current/Voltage: 25 mA 24 VDC
- Contact Rating: 100 mA 50 VDC
- Initial Contact Resistance: 50 mΩ max
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VAC min.
- Electrical Life: 2,000 cycles
- Operating Force: 1,000 gf max
- Case & Actuator: PBT, Base: PA66
- Terminal: Gold plated brass
- Protection Tape: Polyimide
- Environment: Washable with tape seal
Buy the Buy NDS Series Dual In Line Switch Part Number NDS03V Online
Secure the NDS series dual in line switch online to enhance your project reliability. These switches feature self-cleaning contacts, gold-plated terminals, and a washable design, suitable for demanding electronic environments. With a temperature range of -40 °C to +85 °C and electrical ratings up to 25 mA at 24 VDC, they are ideal for industrial, automation, and control applications. Durable materials like PBT and PA66 ensure longevity, making these switches a dependable choice for your electronic systems now available for convenient online purchase.
Order your NDS series 3-way switch today and ensure dependable performance for your electronic projects with robust design and high durability.
Frequently Asked Questions
Where can I buy Apem NDS03V?
You can click on the BUY or RFQ button to purchase NDS03V from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part NDS03V?
You can download the NDS03V datasheet or visit the Apem website for support.
Who is the manufacturer of NDS03V?
Apem
