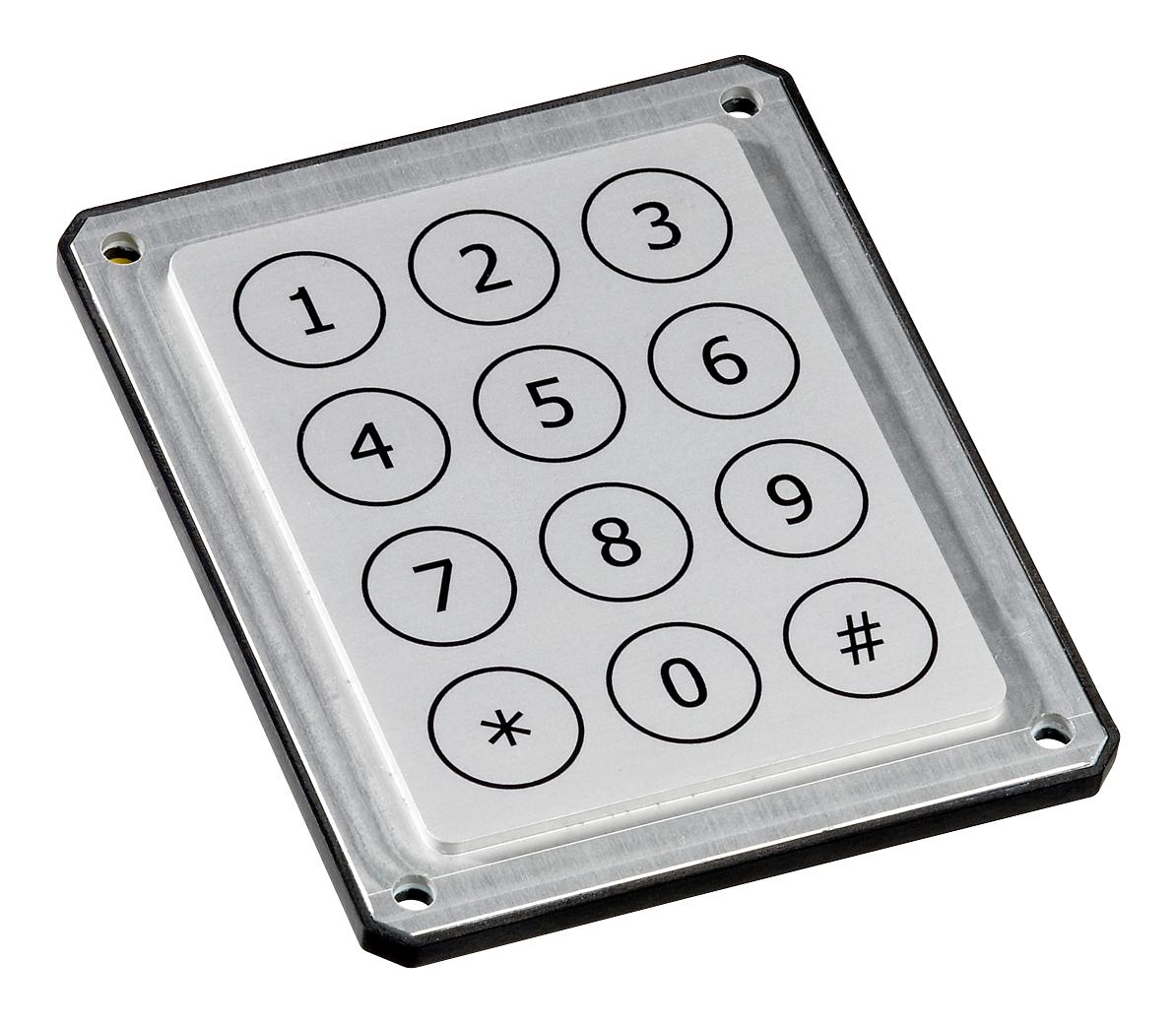

Apem PZ120RS Piezoelectric Keypad
The PZ series Piezoelectric keypads are durable, sealed front or rear mounting switches featuring 12 keys, suitable for harsh environments. They offer long life, with mechanical endurance of at least 10 million cycles, and are resistant to shocks up to 90 G, vibration, abrasion, and salt spray. Made of anodized aluminum and thermoplastic resin, these keypads have a sealed IP68 rating, ensuring operational reliability in extreme temperatures from -40°C to +85°C. The electrical specifications include a 4x3 matrix output, switching voltage up to 24 VDC, and a contact bounce time of less than 1 ms.
Apem PZ120RS Piezoelectric Keypad Specifications:
- Sealing: IP68 front and rear according to IEC 60529
- Operating and storage temperature: -40°C to +85°C
- Shock resistance: up to 90 G
- Mechanical life: minimum 10 million cycles
- Contact bounce time: ≤ 1 ms
- Switching Voltage: 24 VDC max.
- Switching Current: 200 mA max.
- Electrical life: at least 10 million cycles
- Materials: anodized aluminum front panel, thermoplastic resin case
- Actuating contact force: 2 to 4 N
- Connection: 8-pin male connector
- Dimensions: Customer panel cut-out 62.5 x 81.5 mm, radius 3.5 mm
- Marking: chemically structured anodized silk screen
- Certificate: UL94 HB horizontal flame resistance
Buy the Buy Innovative Piezoelectric Keypad Part Number PZ120RS Online
Order the PZ120RS piezoelectric keypad today and enjoy a reliable, durable switch designed for extreme environments. With sealed IP68 protection, shock resistance up to 90 G, and a long mechanical life of over 10 million cycles, this keypad is ideal for industrial, outdoor, and safety applications. Made from anodized aluminum and thermoplastic resin, it ensures durability and corrosion resistance. Its compact design with a 12-key matrix output makes it easy to install in various panels, providing consistent performance over years of service.
Get PZ120RS piezoelectric keypad today—designed for harsh environments with sealed IP68 protection and long-lasting durability.
Frequently Asked Questions
Where can I buy Apem PZ120RS?
You can click on the BUY or RFQ button to purchase PZ120RS from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part PZ120RS?
You can download the PZ120RS datasheet or visit the Apem website for support.
Who is the manufacturer of PZ120RS?
Apem
