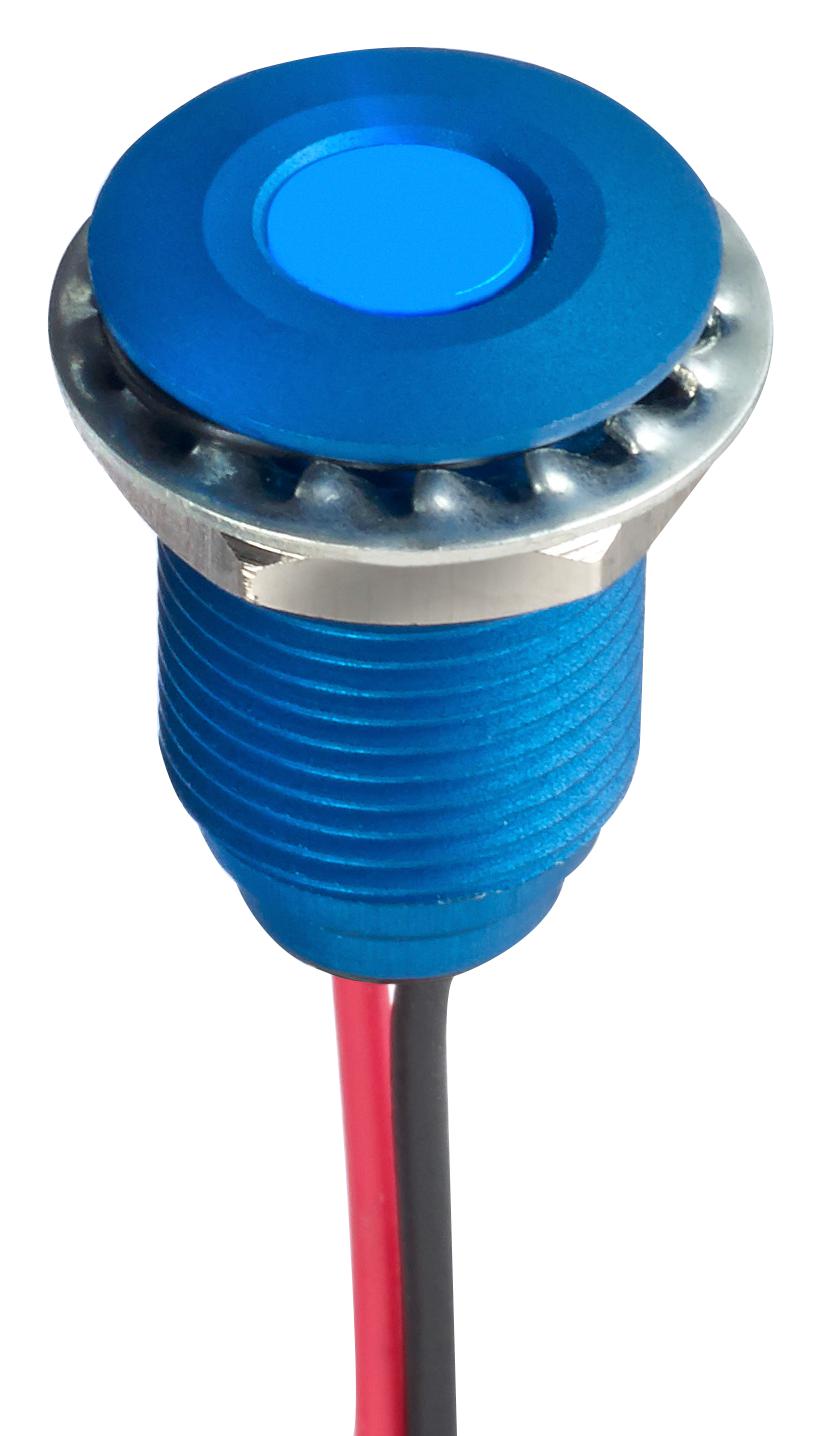

Apem Q10F5ABXXB24E Panel Mount LED Indicator
The Q10 series is a 10 mm panel mount LED indicator designed for various applications requiring high visibility and durability. It features a flush diffused LED with optional hyper bright or water clear illumination, housed in a stainless steel or anodized aluminum bezel with IP67 sealing. Suitable for panel thickness up to 7 mm, it offers a long life expectancy of 100,000 hours, and operates within -40°C to +85°C temperatures. Its wide viewing angle of 60° and multiple color options, including RGB, make it versatile for industrial and control environments.
Apem Q10F5ABXXB24E Panel Mount LED Indicator Specifications:
- Display Size: 10 mm
- Bezel Style: Flush chamfered
- Housing Material: Stainless Steel 316L or Anodized Aluminum
- Sealing: IP67 (optional)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Max Panel Thickness: 7 mm
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Reverse Voltage: 5 V max
- Torque: 20-25 cNm
- Wire Length: 200 mm standard
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Tricolor, Hyper Bright versions
- Electrical Voltage Range: 1.8V to 33V DC, with optional resistors for specific voltage and current
- Connection Type: Rear epoxy wires, 24 AWG, 200 mm length
- Operation Modes: Fixed, flashing, bi-color, tri-color, hyper bright
Buy the Buy APEM Q10 Series Panel Mount LED Indicator Part Number Q10F5ABXXB24E Online
Order the APEM Q10 Series panel mount LED indicator online today to enhance your control panels with durable, high-brightness illumination. Featuring IP67 sealing options, this indicator is suitable for harsh environments, supporting various colors including RGB and bi-color options. Its robust stainless steel or anodized aluminum housing guarantees long-term reliability, delivering a lifespan of over 100,000 hours. With 200 mm wire terminations, easy installation, and multiple illumination modes, it is ideal for industrial, automation, and machinery applications. Purchase now for unmatched performance and visibility.
Buy APEM Q10 Series panel mount LED indicator now and experience unmatched durability with long lifespan and high visibility in industrial environments.
