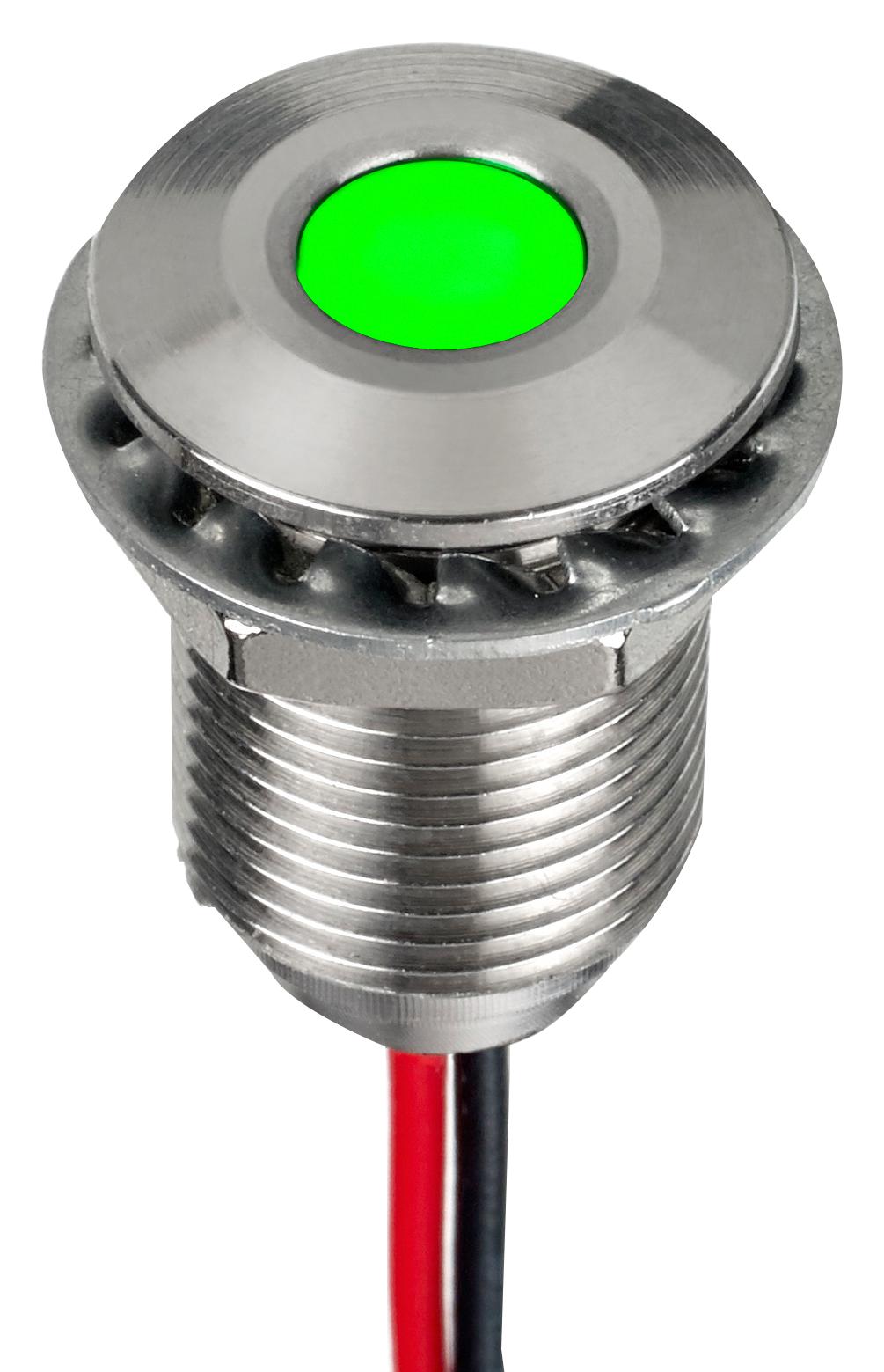

Apem Q10F5SXXHG02E Panel Mount LED Indicator
The Q10 series consists of 10 mm panel mount LED indicators featuring a flush diffused LED and optional IP67 sealing for harsh environments. Available in various colors such as red, green, yellow, blue, white, and orange, these indicators offer high reliability with a lifespan of 100,000 hours and a viewing angle of 60°. They are constructed with stainless steel or anodized aluminum, with wire terminations of 200 mm length, suitable for panel thickness up to 7 mm. Options include super bright, hyper bright, RGB, and tricolor LEDs, making them versatile for industrial control panels and status indicators.
Apem Q10F5SXXHG02E Panel Mount LED Indicator Specifications:
- Diameter: 10 mm
- Mounting hole size: 10 mm
- Panel thickness: Max 7 mm
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C
- Lifespan: 100,000 hours
- Viewing Angle: 60°
- Materials: Stainless Steel 316L or Anodized Aluminum
- Wire Length: 200 mm
- Wire Gauge: 24 AWG
- Operating Voltage Range: 1.8 to 33 VDC
- LED Types: Standard, Super Bright, Hyper Bright, RGB, Tri-color
- Forward Voltage: Red 2V, Green 3V, Yellow 2V, Blue 3.3V, White 3.3V, Orange 2V
- Max Reverse Voltage: 5V
- Electrical Current: 20 mA max
- Connections: Rear epoxy wires
- Sealing Classification: Unsealed or IP67 depending on model
Buy the APEM Q10F5SXXHG02E – Reliable 10 mm Panel Mount LED Indicators for Industrial Applications
Order the APEM Q10F5SXXHG02E panel mount LED indicator online today to ensure reliable, long-lasting illumination for industrial control panels. Built with high-quality materials like stainless steel or anodized aluminum, these indicators are available in multiple colors and brightness options, including super bright and hyper bright LEDs. With IP67 sealing, a lifespan of 100,000 hours, and a compact 10 mm diameter, they are ideal for harsh environments, providing clear status indication and enhanced safety in automation, manufacturing, and control systems.
Get APEM Q10F5SXXHG02E today—built for precision, durability, and excellent visibility in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q10F5SXXHG02E?
You can click on the BUY or RFQ button to purchase Q10F5SXXHG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q10F5SXXHG02E?
You can download the Q10F5SXXHG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q10F5SXXHG02E?
Apem
