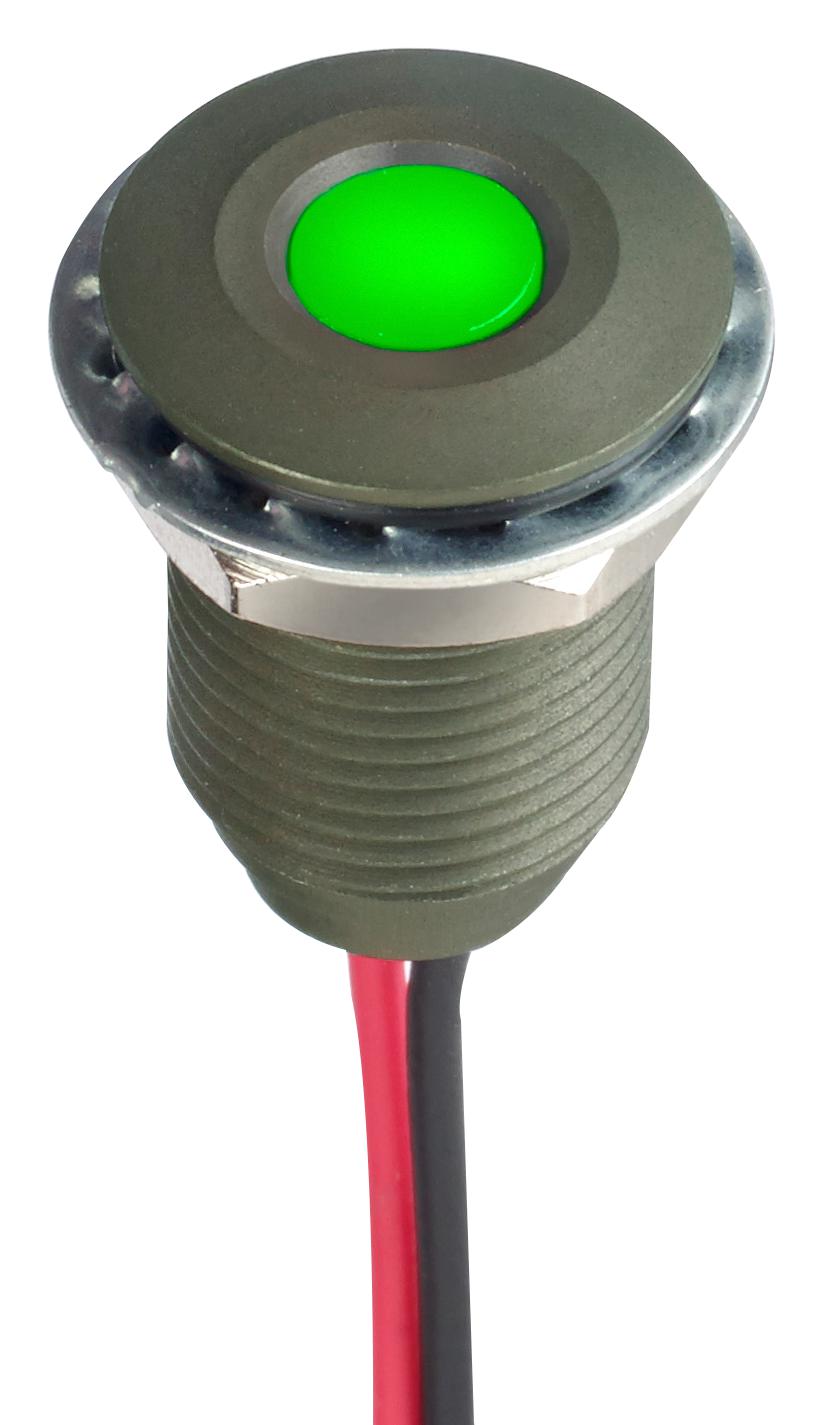

Apem Q10F5AKXXG12E Panel Mount LED Indicators
The Q10 series panel mount LED indicators feature 5 mm flush diffused LEDs available in multiple colors including red, green, yellow, blue, white, and orange, with optional RGB and tricolor configurations. Designed for durability, they have a splash-resistant sealed version with IP67 rating, operate within -40°C to +85°C, and offer a long life expectancy of 100,000 hours. Suitable for panel thickness up to 7 mm, they include stainless steel or anodized aluminum bezels, and are equipped with 200 mm wire terminations for easy connection and installation.
Apem Q10F5AKXXG12E Panel Mount LED Indicators Specifications:
- LED Size: 5 mm flush diffused
- Available Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Tricolor, Hyper Bright variants
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67 (sealing option available)
- Max Panel Thickness: 7 mm
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Material: Stainless Steel 316L or Anodized Aluminium
- Mounting Style: Flush bezel
- Wire Length: 200 mm
- Operating Voltage: 1.8V to 28VDC or VAC, depending on LED type
- Reverse Voltage Max: 5 V
- Current: 20 mA typical, resistor required for specific voltage
- Bezel Finish: Metal, Anodized or Stainless Steel
Buy the APEM Series Q10 LED Indicators: Q10F5AKXXG12E
Order the APEM Q10F5AKXXG12E LED indicators online today and enjoy fast delivery, reliable performance, and versatile color options. Perfect for industrial equipment, control panels, and automation systems, these durable LEDs offer excellent visibility with long life expectancy, IP67 sealing, and easy connection with 200 mm wire terminations. Whether you need standard, super bright, or hyper bright LEDs, purchase now for dependable, high-performance indicators designed for demanding environments and easy integration into your control solutions.
Buy APEM Q10F5AKXXG12E LED indicators now and experience unmatched durability with long lifespan and easy wiring for industrial applications.
