Apem Q12F1CXXB12E LED Indicator Light

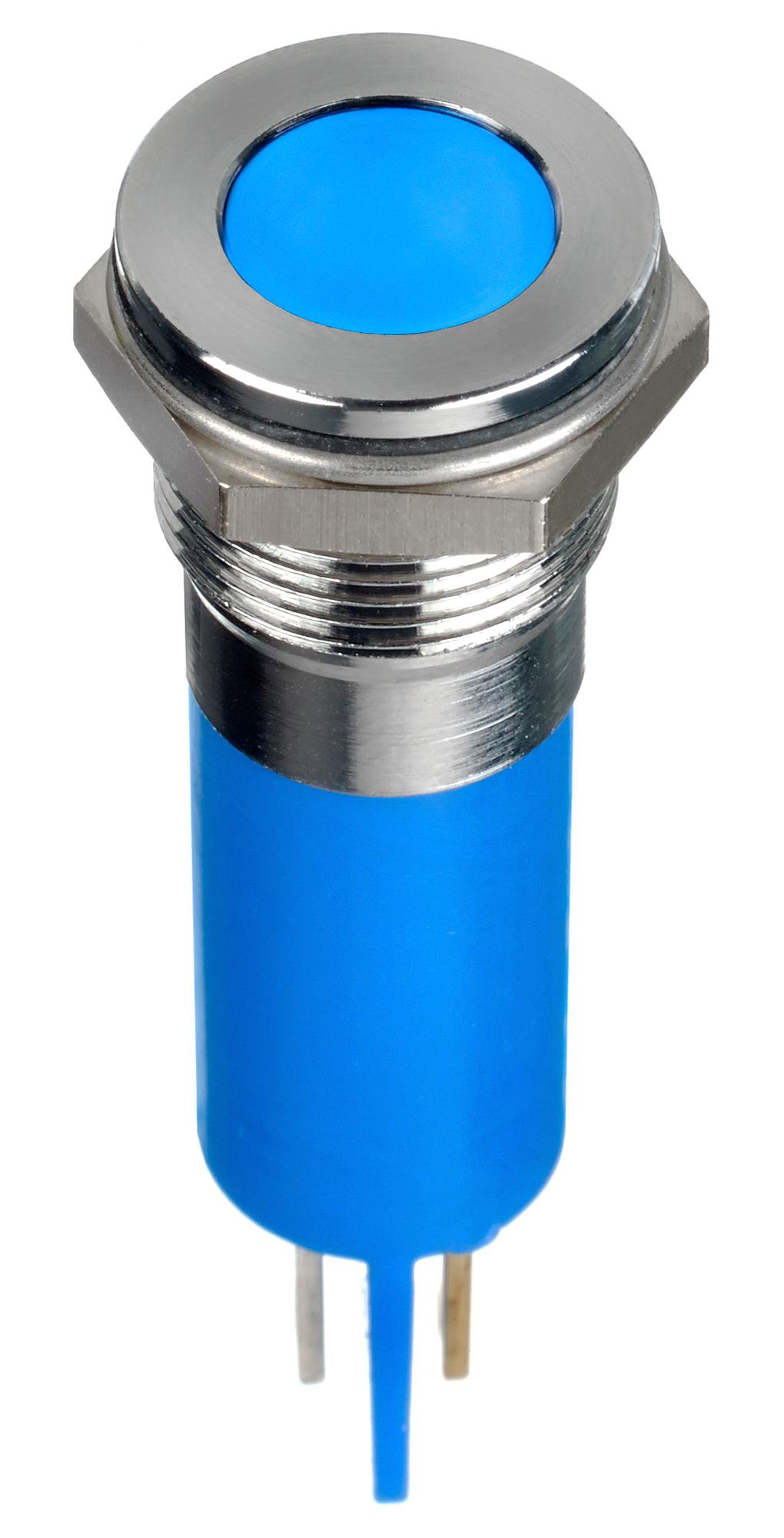

The Q12 series comprises 12 mm panel mount LED indicators designed for industrial and electronic applications. These indicators feature high brightness LEDs with various color options including red, green, yellow, white, and blue, with both super bright and hyper bright intensity levels. They support voltages from 2VDC up to 220VAC, with multiple terminal and bezel options such as prominent and recessed styles. They are sealed with IP67 options, operate across -40°C to +85°C, and are suitable for mounting on panels up to 7 mm thick, making them ideal for status indication in control panels and industrial machinery.
Apem Q12F1CXXB12E LED Indicator Light Specifications:
- LED Colors: Red, Green, Yellow, White, Blue, Orange, Bi-color, Tri-color
- Brightness Levels: Super Bright, Hyper Bright
- Voltage Range: 2VDC to 220VAC
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67 sealing option
- Viewing Angle: 30-100°
- LED Life Expectancy: 100,000 hours
- Terminals: Solder lug, faston, pins, wires, array lengths 200 mm
- Panel Thickness: Max 7 mm
- Bezel Material: Plated brass finished in chrome, black, satin grey
- Environmental Compliance: EN60529 for IP67
- Soldering Temperature: approx. 300°C for 3 seconds
- Max Reverse Voltage: 5 V
- Operating & Storage Temp: -40°C to +85°C depending on body type
Buy the Brand Q12 – Reliable LED Indicator for Industrial Applications
Improve your industrial control systems with our Q12 series LED indicators, featuring high brightness LEDs in multiple colors, voltages from 2VDC to 220VAC, IP67 sealing, and various mounting options to ensure reliable performance in demanding environments. Perfect for panel lighting and status indication, these indicators are easy to install with solder lug, faston, or wire terminations. Their robust design withstands temperatures from -40°C to +85°C, offering long life expectancy of up to 100,000 hours. Get your high-quality LED indicators now online!
Order your Q12 series LED indicator today and enhance your control panels with durable, bright, and reliable illumination solutions for industrial projects.
Frequently Asked Questions
Where can I buy Apem Q12F1CXXB12E?
You can click on the BUY or RFQ button to purchase Q12F1CXXB12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1CXXB12E?
You can download the Q12F1CXXB12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1CXXB12E?
Apem
