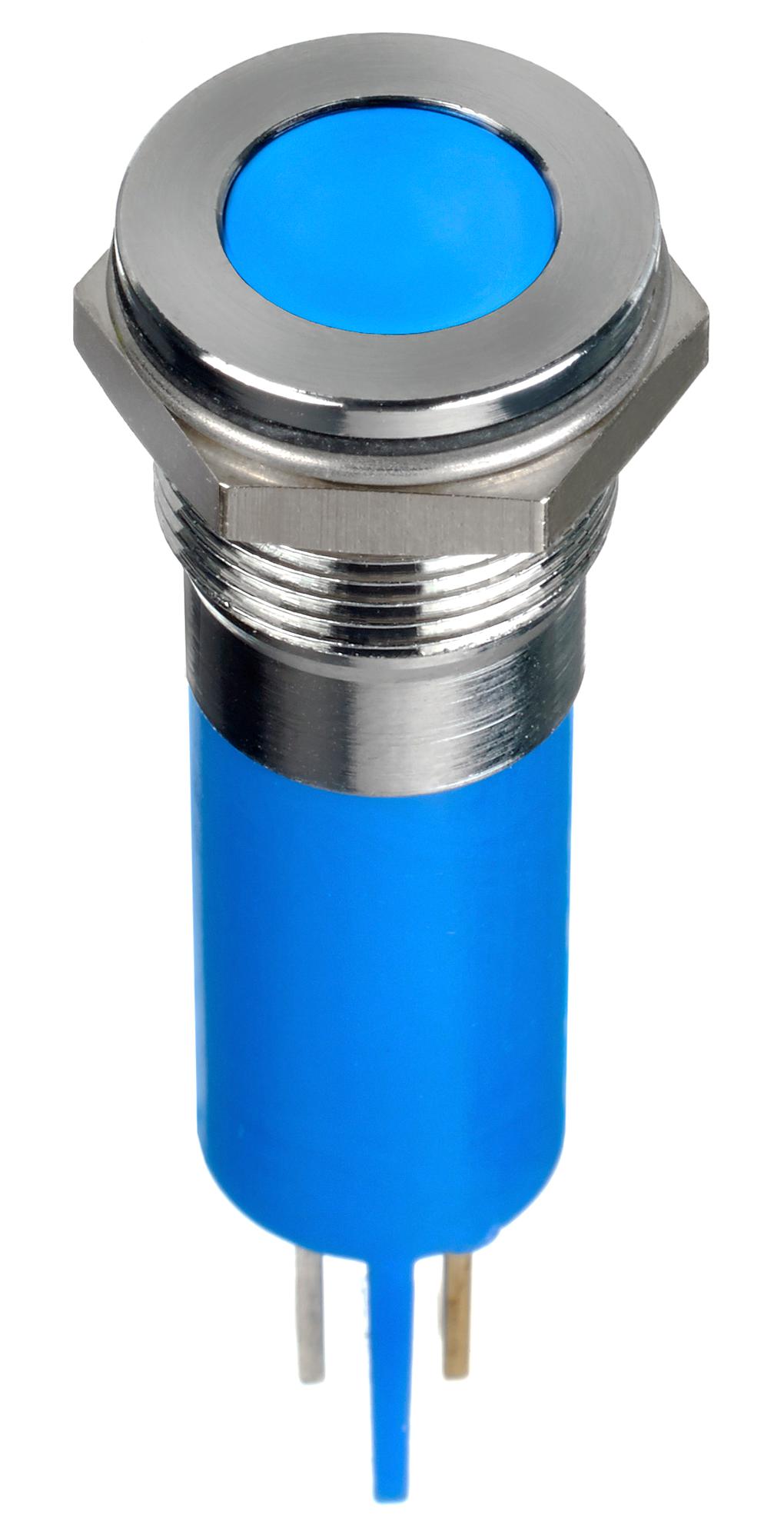

Apem Q12F1CXXB24E LED Indicator
The Q12 series is a range of 12 mm panel mount LED indicators featuring high brightness LEDs with diffuse epoxy lenses. Available in multiple colors such as red, green, yellow, blue, white, and orange, these indicators operate on a voltage range from 2VDC up to 220VAC. They offer options for sealed IP67 waterproof versions, various bezel styles, and termination types including solder lug, faston, pins, or wire leads. Designed for durability, they have a lifespan of 100,000 hours, with robust materials like plated brass and molded polycarbonate suitable for industrial and control panel applications.
Apem Q12F1CXXB24E LED Indicator Specifications:
- Size: 12 mm panel mount
- Color options: Red, Green, Yellow, Blue, White, Orange, Bi-color, tri-color
- Voltage range: 2VDC to 220VAC
- Ingress Protection: IP67 sealing option available
- Lifespan: 100,000 hours
- Viewing Angle: 30-100°
- Materials: Plated brass bezel, molded polycarbonate rear body
- Operating temperature: -30°C to +65°C (rear plastic), -40°C to +85°C (rear epoxy)
- Max Reverse Voltage: 5V
- Connection: Solder lug, faston terminals, pins, or 200 mm wire leads
- Maximum panel thickness: 7 mm
- Torque: 75 cNm
Buy the LED Series Q12 Panel Mount Indicator: Q12F1CXXB24E
Enhance your control panels with the high-brightness LED indicators of the Q12 series. Available in multiple colors and waterproof IP67 options, these indicators are ideal for industrial and automation applications. They feature various mounting and terminal options, ensuring versatility and easy installation. With a lifespan of 100,000 hours, these indicators provide reliable long-term operation. Purchase online today to benefit from quick delivery, competitive prices, and proven quality for your control and instrumentation needs.
Buy LED Series Q12 panel mount indicators now and experience durable performance with high brightness and waterproof features designed for industrial environments.
Frequently Asked Questions
Where can I buy Apem Q12F1CXXB24E?
You can click on the BUY or RFQ button to purchase Q12F1CXXB24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1CXXB24E?
You can download the Q12F1CXXB24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1CXXB24E?
Apem
