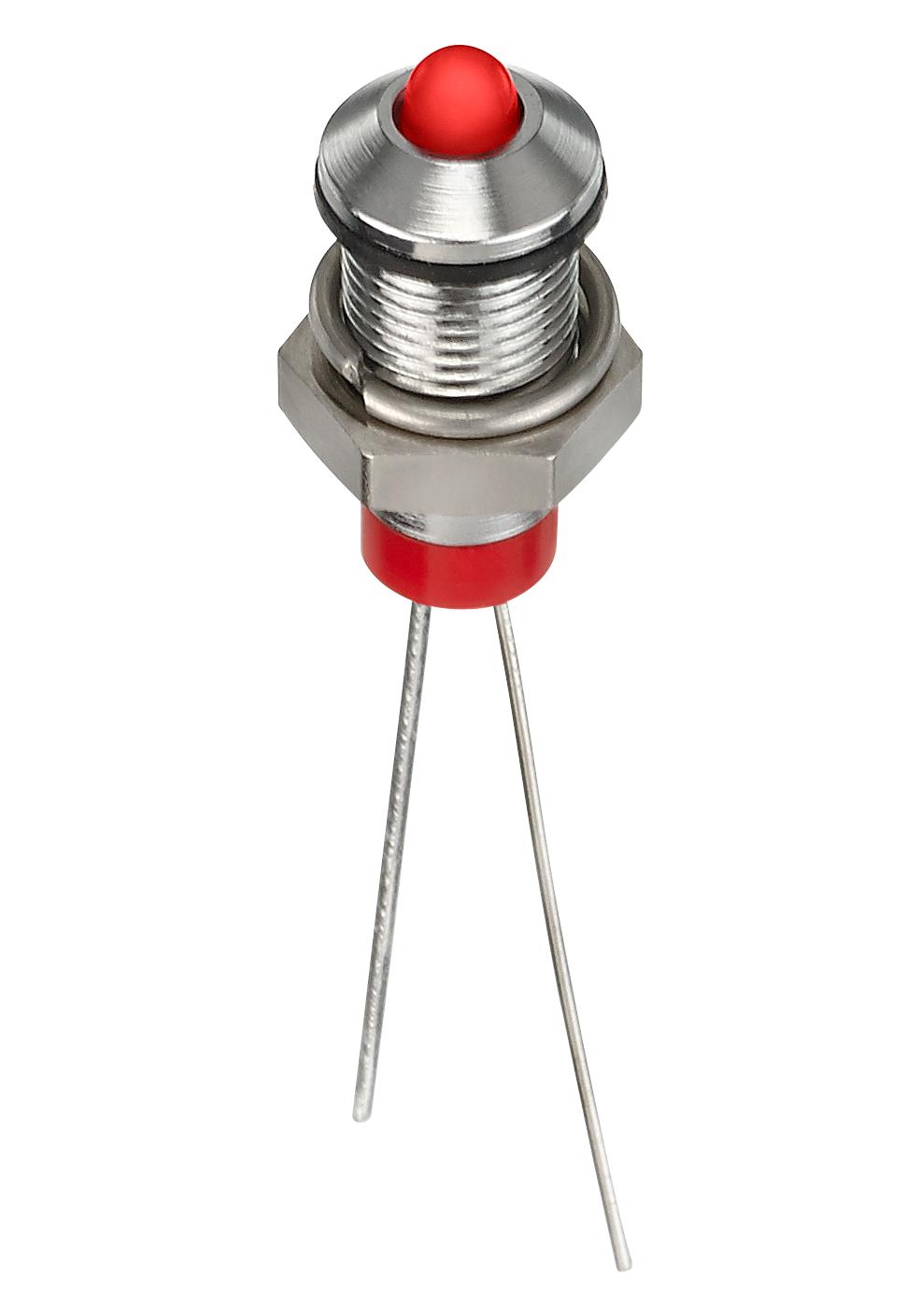

Apem Q6P6CXXR02E Panel Mount LED Indicators
The Q6 Series panel mount LED indicators are compact, 6mm diameter, designed for industrial applications requiring reliable illumination. Available in various LED colors including red, green, yellow, blue, white, and orange, these indicators feature diffusion or high-brightness LEDs with luminous intensities up to 10,000 med. They support 2VDC to 28VDC operating voltages, with IP67 sealing for rugged environments. Mounting options include recessed or flush bezels with plated brass finishes in chrome, black chrome, or satin grey. Terminals are solder lug, pins, or wire, all supplied with fixing nuts and washers for secure installation. The LEDs are rated for 100,000 hours life expectancy, optimized for visibility in demanding conditions, ensuring long-term durability and performance.
Apem Q6P6CXXR02E Panel Mount LED Indicators Specifications:
- Diameter: 6mm
- Lens: 3mm diffused epoxy or high-bright LEDs
- Voltage Range: 2VDC to 28VDC
- Operating Current: 20mA
- Luminous Intensity: up to 10,000 med for hyper bright LEDs
- Viewing Angle: 30-100°
- Operating Temperature: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Finish: Bright chrome, black chrome, satin grey
- Sealing: IP67 option
- Mounting: Recessed or flush bezel, M6 x 0.5 thread
- Terminals: Solder lug, pins, or wire (200mm, 24AWG)
- Compatibility: Suitable for industrial signaling and indicator applications
- Reverse Voltage Max: SV (not specified)
- Forward Voltage: Red 2.0V, Green 2.2V, Yellow 2.1V, Blue 3.3V, White 3.3V, Orange 2.0V
Buy the APEM Q6P6CXXR02E – Reliable LED Indicators for Industrial Applications
Enhance your control panels with APEM's high-quality 6mm LED indicators. Featuring bright, diffused, and hyper-bright options, these indicators deliver excellent visibility in tough environments. Designed for easy installation with various terminal options, they support voltages up to 28VDC and have IP67 sealing for water and dust resistance. With a life expectancy of 100,000 hours, they ensure durability and long-term performance. Ideal for industrial, automation, and control system applications, these LED indicators guarantee reliability and superior illumination for your equipment displays.
Buy APEM Q6P6CXXR02E LED indicator now and experience long-lasting, bright illumination perfect for industrial signaling and machine status.
