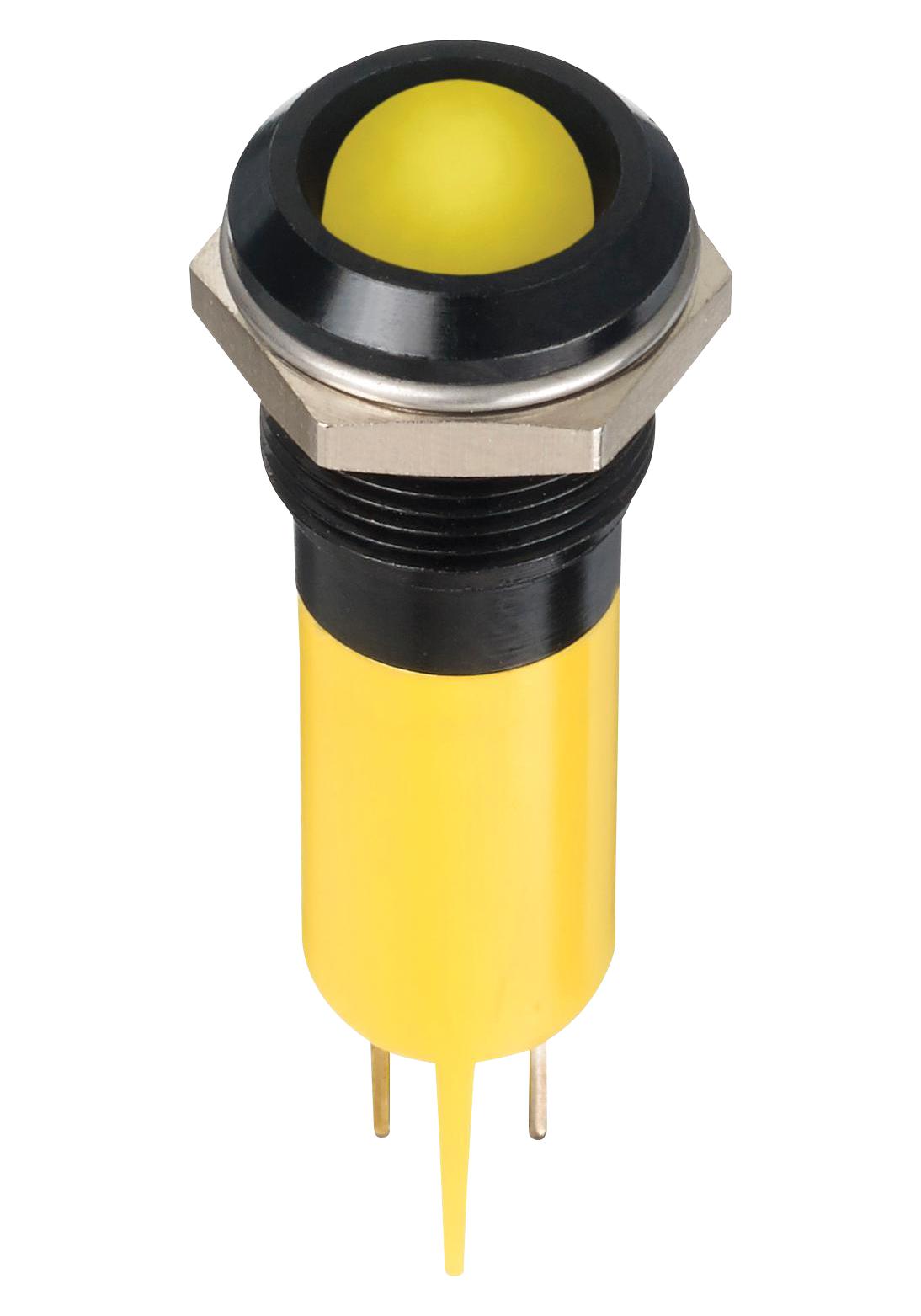

Apem Q12P1BXXHY12E LED Indicator
The Q12P1BXXHY12E from APEM is a durable 12mm panel mount LED indicator featuring a black chrome plated brass bezel and molded polycarbonate rear body. It offers high brightness yellow illumination with 1600mcd intensity, suitable for process control, electrical appliances, transportation, and industrial systems. Operating within 10.8 to 13.2V DC at 20mA, it has a lifespan of 100,000 hours and up to IP67 sealing, ensuring environmental protection. The indicator uses diffused epoxy or water-clear LEDs, with a viewing angle of 30° to 100°, and includes solder lug and faston terminal options, with a maximum reverse voltage of 5V, ideal for signaling and control applications in harsh environments.
Apem Q12P1BXXHY12E LED Indicator Specifications:
- Lens Diameter: 12 mm (0.472 inch)
- Material: Plated brass bezel, molded polycarbonate rear body
- Sealing: Up to IP67
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Voltage Range: 10.8V to 13.2V DC
- Operating Current: 20mA
- Luminous Intensity: 1600mcd
- LED Type: Hyper-bright water-clear or diffused epoxy lens
- Viewing Angle: approximately 30° to 100°
- Maximum Reverse Voltage: 5V
- Life Expectancy: 100,000 hours
- Terminals: Solder lug or faston (2.8 x 0.8mm)
- Fixing: Nut and spring washer included
Buy the APEM Q12P1BXXHY12E – Reliable LED Indicator for Industrial Applications
Purchase the APEM Q12P1BXXHY12E LED indicator online today and enjoy reliable, high-brightness yellow illumination perfect for process control, communication panels, and industrial equipment. With IP67 sealing and a lifespan of 100,000 hours, this durable device suits outdoor and harsh environment applications. Its compact 12mm size, high-quality construction, and easy terminal connections ensure quick installation and long-term performance. Enhance your signaling and control systems with this waterproof, vibration-resistant indicator that guarantees visibility and reliability in demanding industrial settings.
Get APEM Q12P1BXXHY12E today—built for precision and long-lasting durability in harsh industrial environments.
Frequently Asked Questions
Where can I buy Apem Q12P1BXXHY12E?
You can click on the BUY or RFQ button to purchase Q12P1BXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1BXXHY12E?
You can download the Q12P1BXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1BXXHY12E?
Apem
