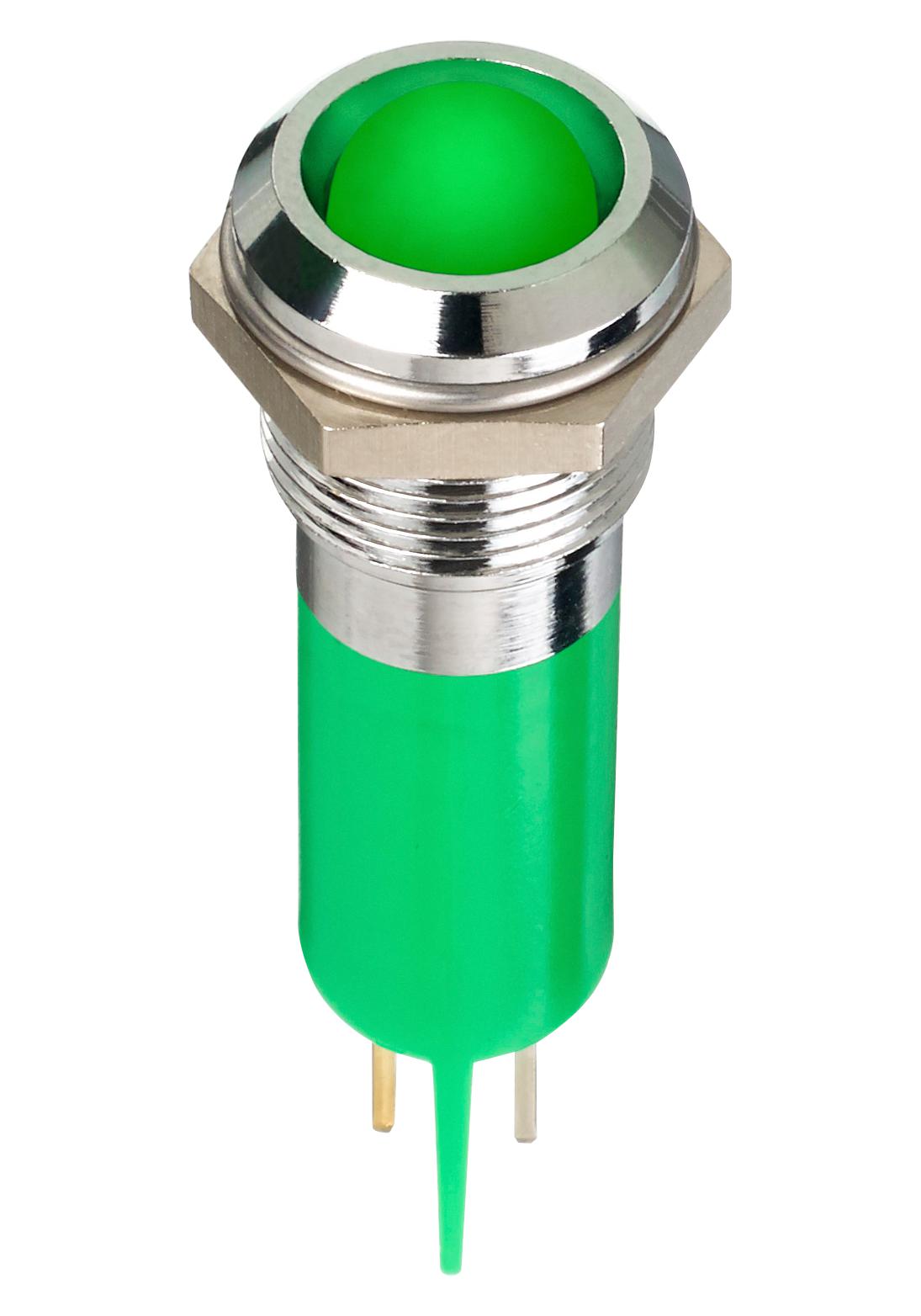

Apem Q12P1CXXG12 LED Indicator
The Q12 Series panel mount LED indicators feature a 12mm diameter with prominent bezel styles, suitable for industrial applications requiring visual signaling. They offer various LED colors, including green, yellow, blue, white, orange, red, and bi-color options. Designed for panel thickness up to 7mm, these indicators operate at voltages from 2VDC up to 220VAC, with IP67 sealing for durability in harsh environments. Constructed with plated brass bezels finished in bright chrome, satin grey, or black chrome, they ensure long life with a life expectancy of 100,000 hours, ideal for control panels, machine status indicators, and industrial equipment.
Apem Q12P1CXXG12 LED Indicator Specifications:
- Diameter: 12mm
- Bezel Material: Plated brass
- Bezel Finishes: Bright chrome, satin grey, black chrome
- Lens: 8mm diffused epoxy or water clear, super bright LEDs
- Operating Voltage Range: 2VDC to 220VAC
- Current: 20mA maximum for most LEDs
- Life Expectancy: 100,000 hours
- Operating Temperature: -40 to +85°C
- Sealing: IP67 (optional)
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Panel Cutout Diameter: 12mm
- Thread Size: 2075
- Connections: Solder lug, faston terminals, pins, or 200mm wire
- Operating Voltage Specifics: 2VDC (1.8-3.3V), 6VDC (5.4-6.6V), 12VDC (10.8-13.2V), 24VDC (21.6-26.4V), 28VDC (25.2-30.8V), 110VAC (99-121VAC), 220VAC (207-253VAC)
- Color Options: Green, yellow, blue, white, orange, red, bi-color, tri-color
- Sealing: Unsealed or IP67 sealed
- Maximum Panel Thickness: 7mm
Buy the APEM Q12P1CXXG12 – Reliable LED Indicators for Industrial Applications
Purchase the APEM LED indicator today—perfect for industrial control panels and signaling systems. Featuring a 12mm diameter, a variety of vibrant LED colors, and high IP67 sealing, these indicators are designed for harsh environments with a long operational life of 100,000 hours. They suit panel thickness up to 7mm and operate across voltages from 2VDC to 220VAC. Easy to install with multiple terminal options, these indicators enhance operational visibility and safety in manufacturing, automation, and machinery applications—order now for reliable performance.
Get APEM Q12P1CXXG12 today—built for precision, durability, and clarity in industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXG12?
You can click on the BUY or RFQ button to purchase Q12P1CXXG12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXG12?
You can download the Q12P1CXXG12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXG12?
Apem
