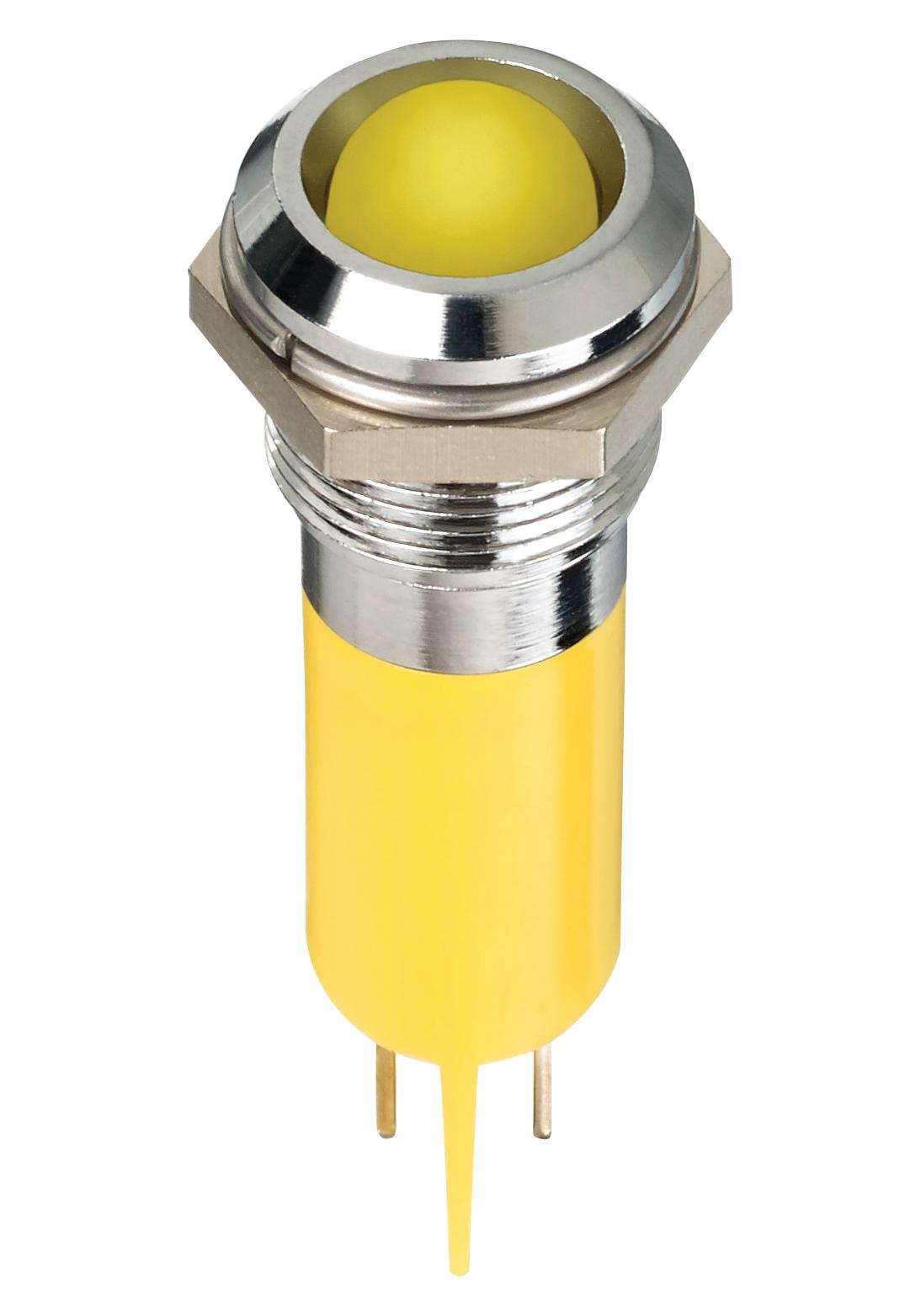

Apem Q12P1CXXHY24E LED Indicator
The Q12 Series 12mm panel mount LED indicators offer vibrant, high-brightness illumination with a prominent bezel that enhances visibility. They feature multiple color options including green, yellow, blue, white, and orange, with bi-color and tri-color variants for versatile applications. These LEDs operate across a wide voltage range from 2VDC to 220VAC, with sealed IP67 options for demanding environments. Designed with a durable plated brass bezel and molded polycarbonate rear body, they ensure long life with a life expectancy of 100,000 hours, suitable for engineering solutions and industrial control systems.
Apem Q12P1CXXHY24E LED Indicator Specifications:
- Diameter: 12mm
- Bezel Material: Plated brass
- Bezel Finish: Bright chrome, black chrome, satin grey
- Lens Type: Diffused epoxy or super bright LEDs
- Voltage Range: 2VDC to 220VAC
- Operating Current: 20mA (typical)
- Life Expectancy: 100,000 hours
- Operating Temperature: -40 to +85°C
- IP67 sealing option available
- Connection Terminals: Solder lug, faston, pins, or 200mm wire
- Maximum Panel Thickness: 7mm
- Reverse Voltage: Max 5V
- Viewing Angle: 30-100° depending on model
Buy the APEM Series Q12 LED Indicator: Q12P1CXXHY24E
Order the high-brightness LED indicator from APEM's Q12 Series online today. Designed for durability with IP67 sealing options, it features a 12mm diameter, colorful diffused lenses, and a wide voltage range from 2VDC to 220VAC. Ideal for industrial control systems, equipment, and panel indicators, this LED offers a long lifespan of 100,000 hours. Easy to install with multiple terminal options ensures quick setup and reliable operation in demanding environments. Enhance your control panels with this robust indicator today.
Buy APEM Q12P1CXXHY24E now and experience unmatched reliability and high-brightness illumination for your industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXHY24E?
You can click on the BUY or RFQ button to purchase Q12P1CXXHY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXHY24E?
You can download the Q12P1CXXHY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXHY24E?
Apem
