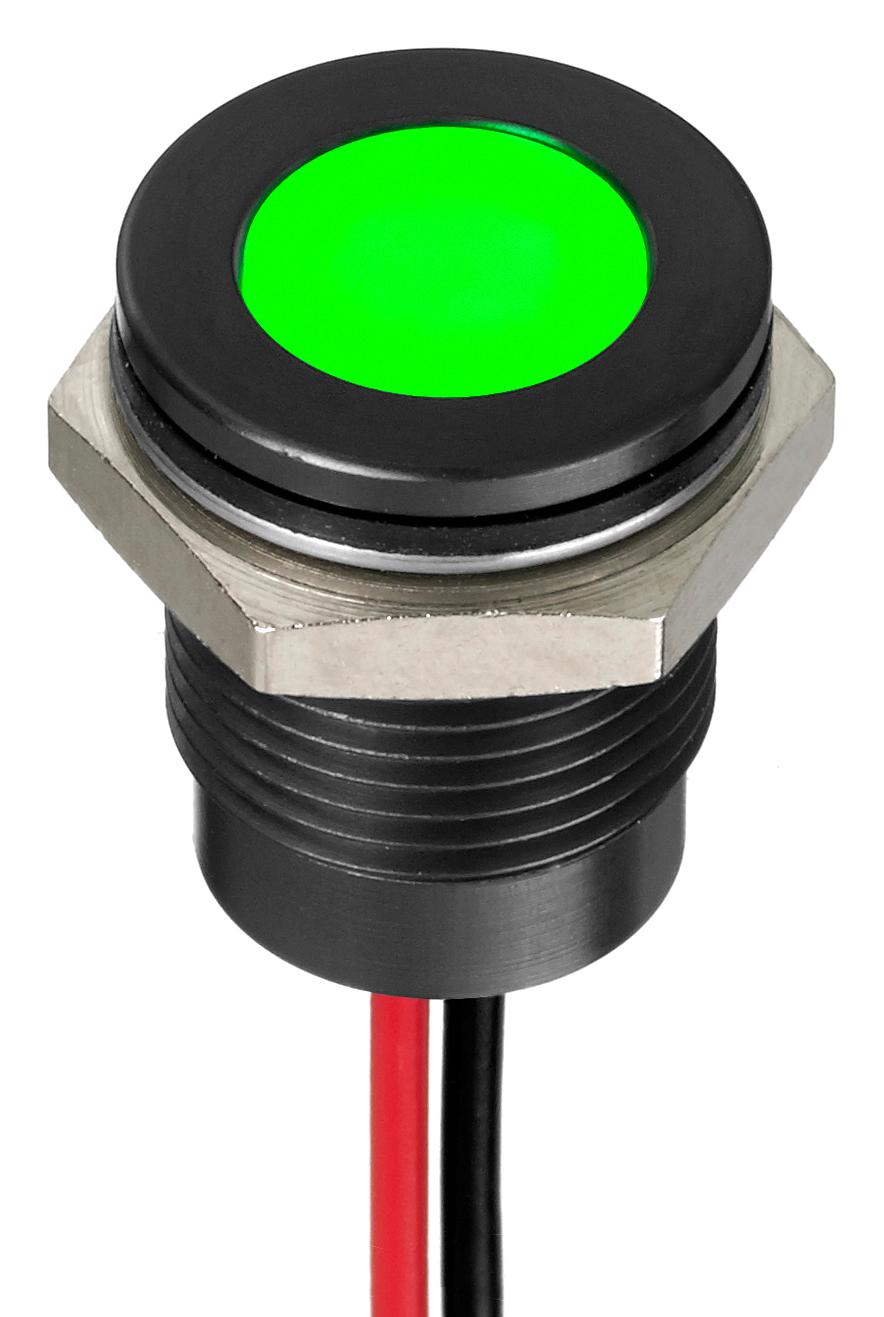

Apem Q14F5BXXHG110E LED Indicator
The Q14 series are 14 mm panel mount LED indicators designed for industrial use. Featuring water-clear or diffused epoxy lenses, these LEDs offer high brightness, prominent bezel styles, and various termination options including solder lug, faston, pins, or 200 mm wires. They support multiple colors, including RGB, and are sealed to IP67 to withstand harsh environments. Operating temperatures range from -40°C to +85°C, with a life expectancy of 100,000 hours. Suitable for control panels, signaling, and indicator applications, they combine durability with customizable design options.
Apem Q14F5BXXHG110E LED Indicator Specifications:
- Lens Material: Diffused epoxy or water-clear
- Lens Size: 10 mm
- Voltage Range: 1.8 to 33 VDC, 6 to 240 VDC, or AC options 110/220 VAC
- Operating Temperature: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Sealing: IP67 option available
- Physical Dimensions: 14 mm diameter, panel thickness max 11 mm
- Materials: Plated brass bezel, molded polycarbonate rear body
- Termination Options: Solder lug, faston, pins, 200 mm wires
- Mounting Hole: M14x1.0
- Bezel Finish: Bright chrome, black, satin grey
- LED Colors: Red, green, yellow, blue, white, orange, RGB, bi-color, tri-color
- Electrical Features: Max reverse voltage 5 V, forward voltage varies by color
Buy the HIGHLIGHT LED Indicators – Reliable Signaling for Industrial Applications
Order the Q14 series LED indicators online today to ensure reliable, high-brightness signaling solutions for industrial control panels, machinery, and equipment. These durable LEDs are sealed for harsh environments, offer customizable colors and termination options, and have a long lifespan of 100,000 hours. Whether you need RGB for color signaling or standard monochrome indicators, our online store provides convenient purchasing, fast delivery, and expert support to meet all your industrial signaling requirements efficiently.
Buy Q14 series LED indicators now and experience unmatched durability, customizable options, and high brightness for all industrial signaling needs.
