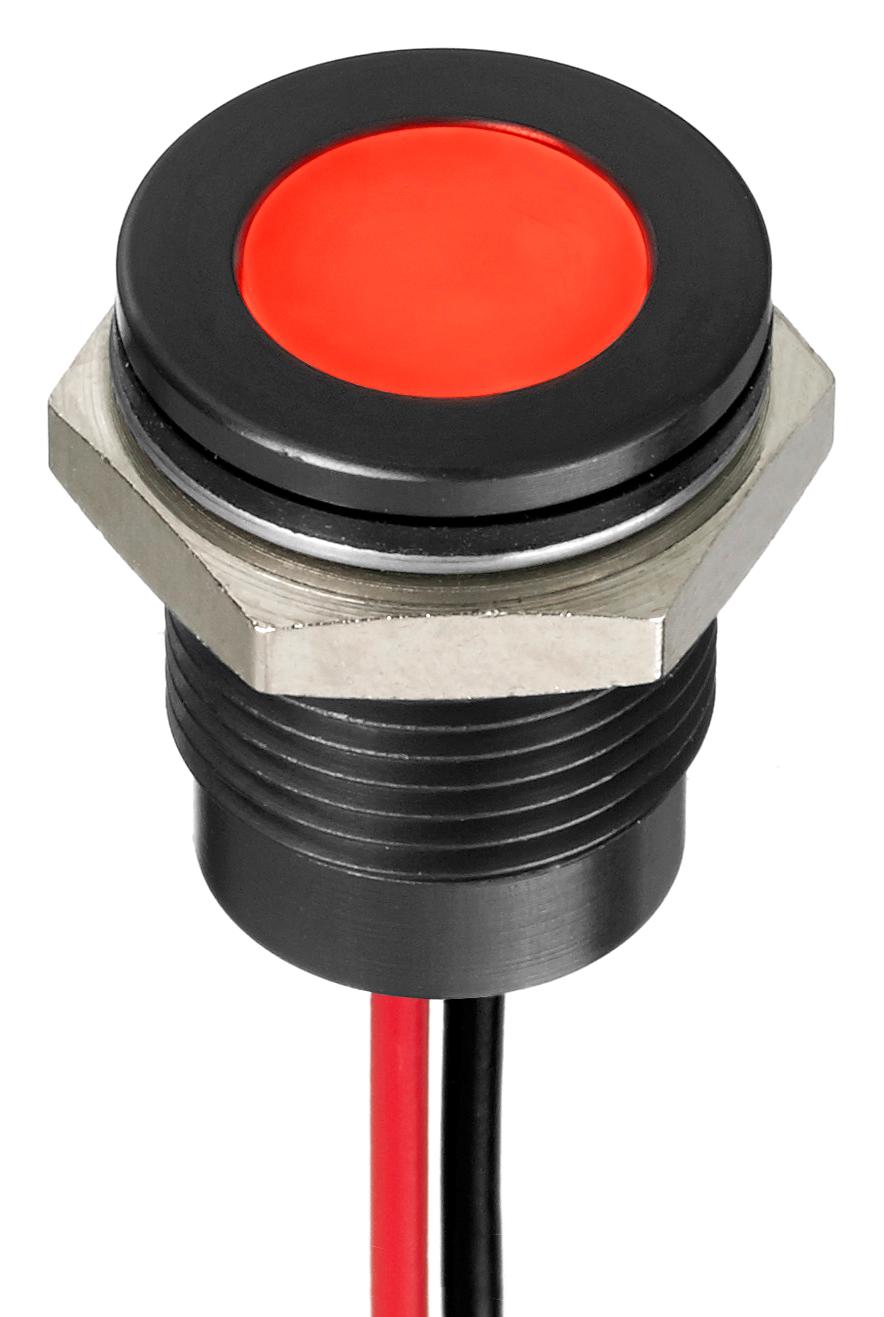

Apem Q14F5BXXHR110E LED Indicator
The Q14 series panel mount LED indicators feature 14 mm size with unique options such as diffuse epoxy or water-clear lenses, bright LEDs, and prominent bezel styles including flush or recessed designs. Suitable for various environmental conditions, they offer IP67 sealing, operating temperatures from -30°C to +85°C, and include multiple mounting and termination options like solder lug, Faston, pins, or long wire terminations. Available in multiple colors including RGB, designed for durability, high visibility, and customizable engraving for tailored applications in control panels and industrial environments.
Apem Q14F5BXXHR110E LED Indicator Specifications:
- Lens Types: Diffuse epoxy or water-clear, 10 mm diameter
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Operating Voltage: 1.8 to 33 VDC, 110 to 220 VAC options available with specific terminal types
- Viewing Angle: 30-100° (dependent on model)
- Lifespan: 100,000 hours
- Operating Temperature Range: -30°C to +85°C depending on body material
- Ingress Protection: IP67 sealing option available
- Max Panel Thickness: 11 mm
- Mounting Hole Diameter: 14 mm
- Bezel Finish: Bright chrome, black, satin grey, or anodized
- Torque: 75 cNm
- Max Reverse Voltage: 5 V
- Terminals: Solder lug, Faston, short pins, or wires up to 200 mm
- Environmental Rating: suitable for harsh environments, sealed option for IP67
- Dimensions: Panel cutout 14 mm, bezel height varies with style
- Materials: Bright chrome plated brass bezel, molded polycarbonate rear body
Buy the APEM Series Q14 LED: 14 mm Panel Mount Indicator Part Number Q14F5BXXHR110E
Enhance your control panels with the high-quality, durable LED Indicators from the Q14 series. These 14 mm indicators are designed for easy installation with options such as solder lug, Faston, and wire terminations. Available in various vibrant colors including RGB and bi-color, they provide excellent visibility and long lifespan of up to 100,000 hours. With IP67 sealing, they withstand harsh environments, making them ideal for industrial automation, machinery, and control systems. Customize with engraved labels to suit your project needs. Order your reliable LED indicator today online and ensure your systems are clearly visible and operational.
Order your APEM Series Q14 14 mm Panel Mount LED today and ensure high visibility and durable performance for your control panels and industrial projects.
Frequently Asked Questions
Where can I buy Apem Q14F5BXXHR110E?
You can click on the BUY or RFQ button to purchase Q14F5BXXHR110E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5BXXHR110E?
You can download the Q14F5BXXHR110E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5BXXHR110E?
Apem
