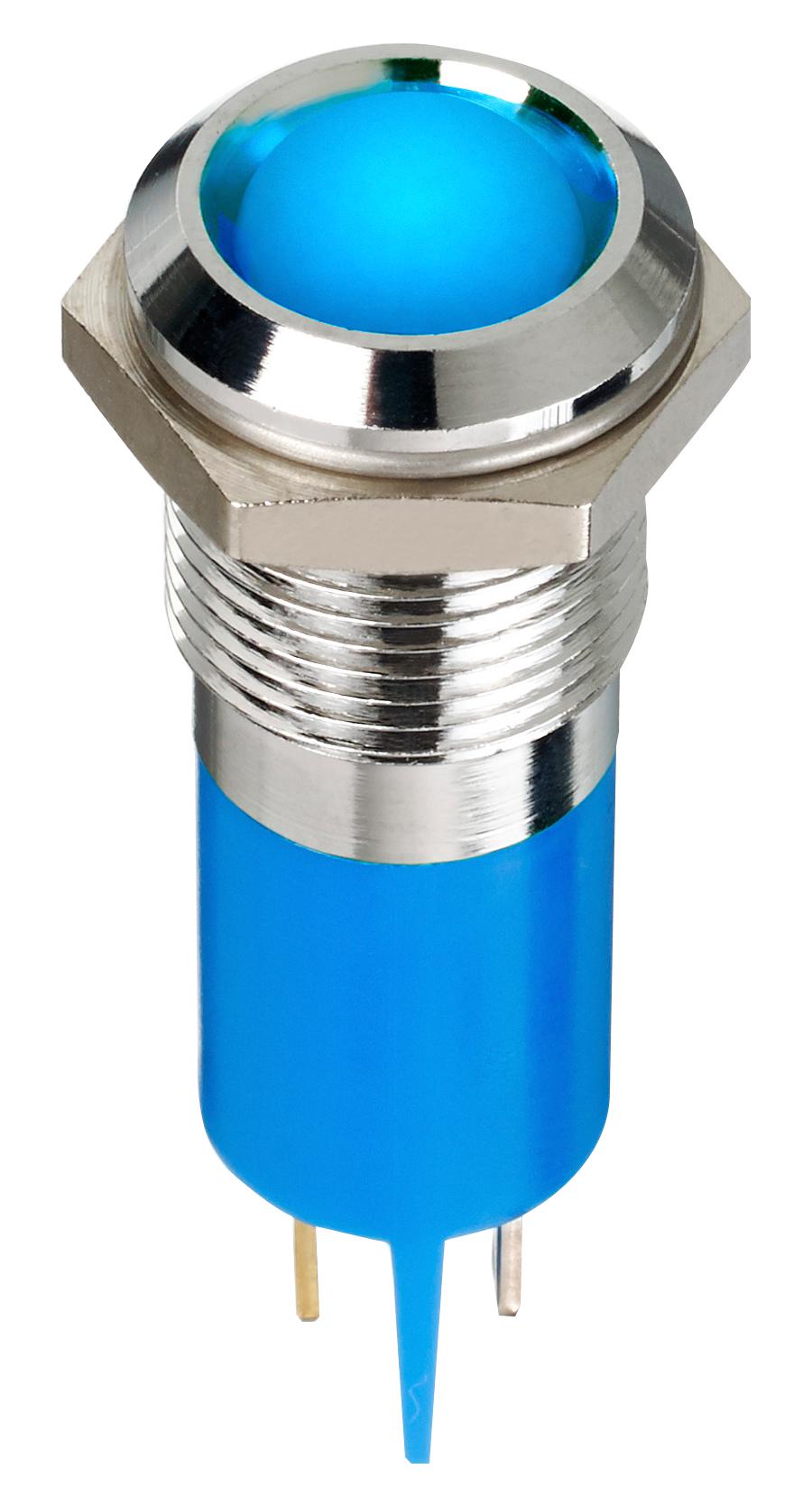

Apem Q14P1CXXB02E LED Indicator
The Q14 series panel mount LED indicators feature 14 mm diameter, flush, recessed, or water-clear diffused lens options with bright LEDs for visibility. They include a robust brass bezel finished in chrome, black, or satin grey, combined with molded polycarbonate rear bodies. Suitable for various panel thicknesses up to 11 mm, these indicators offer high durability with IP67 sealing available, ensuring environmental protection. They operate within temperature ranges from -40 °C to +85 °C and have a long lifespan of 100,000 hours. Multiple LED colors and custom engraving options improve versatility for industrial and control applications.
Apem Q14P1CXXB02E LED Indicator Specifications:
- Lens Diameter: 14 mm
- Lens Types: Diffused, Water Clear
- Bezel Finish: Bright Chrome, Black, Satin Grey
- Material: Moulded Polycarbonate rear body, Plated brass bezel
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Maximum Panel Thickness: 11 mm
- Sealing: IP67 (optional)
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5 V
- Mechanical Mounting: M14x1.0 threaded bezel
- Electrical Connections: Solder lug/faston terminals, rear epoxy wires or short body pins
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Operating Voltage: 1.8V to 33V DC, 110V AC, 220V AC, various resistor options
- Torque: 75 cNm
Buy the APEM Series Q14 LED Indicators: Q14P1CXXB02E
Discover the high-quality LED indicators of the Q14 series, designed for robust industrial and control panel applications. Featuring 14 mm diffused or water-clear lenses, they deliver super bright illumination in a variety of colors including RGB, bi-color, and tri-color options. Constructed with durable materials such as plated brass bezels finished in chrome, black, or grey, and sealed IP67 for environmental protection. With long lifespan, multiple wiring options, and optional engraving, these indicators are ideal for demanding environments. Purchase online now for quick delivery and reliable performance.
Order your APEM Series Q14 LED indicators today and enhance your control panels with bright, durable, and environmentally sealed lighting solutions.
