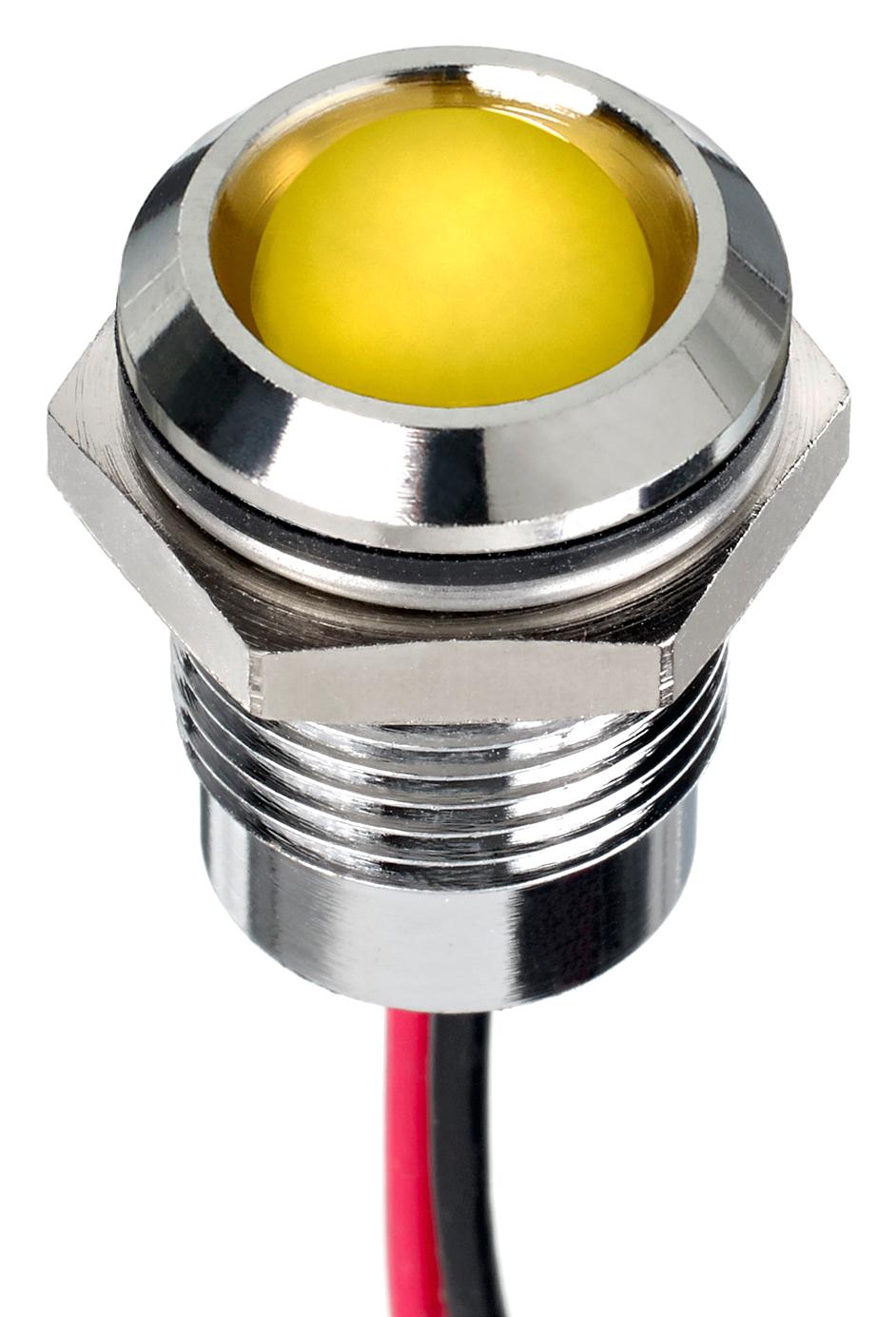

Apem Q14P5CXXHY12E Panel Mount LED Indicators
The Q14 series panel mount LED indicators feature 14 mm diameter luminous LEDs with options for diffused or water-clear lenses, multiple bezel finishes, and various terminal configurations. Designed for dependable performance, they offer a lifespan of 100,000 hours, with IP67 sealing available for rugged environments. Suitable for panel thickness up to 11 mm, these indicators support a broad operating voltage range and include options for RGB, bi-color, and tri-color illumination. The products are ideal for industrial, automotive, and electronic applications requiring high visibility and durability.
Apem Q14P5CXXHY12E Panel Mount LED Indicators Specifications:
- Lens Size: 14 mm diameter with diffused or water-clear options
- Sealing: IP67 sealing option available
- Operating Temperature: -30°C to +85°C depending on body type
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° depending on model
- Lifespan: 100,000 hours
- Material: Bright chrome-plated brass bezel, molded polycarbonate rear body
- Mounting Hole: M14x1.0
- Panel Thickness: Max 11 mm
- Electrical: Forward voltage varies by LED color, operating voltage from 1.8V to 220V, with resistor options
- Current: Up to 20 mA depending on configuration
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Terminal Options: Solder lug, Faston, rear epoxy wires or pins
- Durability: Suitable for demanding industrial and electronic environments
Buy the AEGIS Series 14 mm Panel Mount LED Indicators: Q14P5CXXHY12E
Order the high-performance panel mount LED indicators from the Q14 series today. These durable, IP67 sealed LEDs feature multiple color options including RGB, bi-color, and tri-color variants. Designed for easy mounting on panel thicknesses up to 11 mm, they provide excellent visibility with long lifespan up to 100,000 hours. Ideal for industrial, automotive, and electronic applications, these indicators ensure high reliability, bright illumination, and versatile wiring options to meet all your signaling needs. Purchase online for fast delivery and competitive pricing.
Buy AEGIS Q14P5CXXHY12E now and experience unmatched reliability and performance with high brightness LED indicators built for durability.
Frequently Asked Questions
Where can I buy Apem Q14P5CXXHY12E?
You can click on the BUY or RFQ button to purchase Q14P5CXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P5CXXHY12E?
You can download the Q14P5CXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P5CXXHY12E?
Apem
