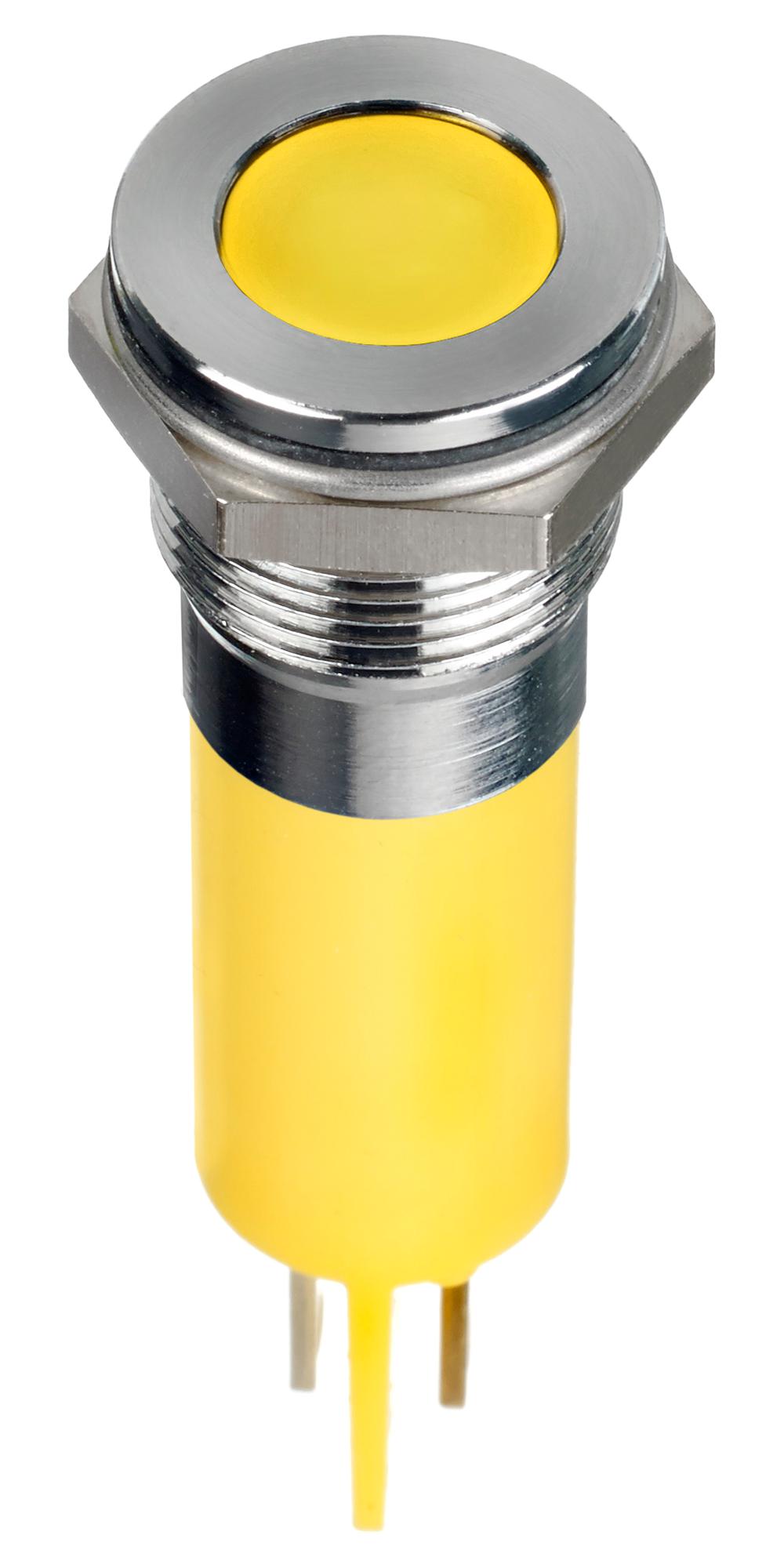

Apem Q14F1CXXY02E Panel Mount LED Indicator
The Q14 series are 14 mm panel mount LED indicators designed for various illumination needs, including standard, super bright, and RGB options. These indicators feature distinctive bezel styles such as prominent, recessed, and flush, with optional IP67 sealing. They operate within a temperature range of -40°C to +85°C and include multiple terminal configurations like solder lug, faston, pins, or wire connections. Made with molded polycarbonate bodies and plated brass bezels finished in chrome, black, or satin grey, these LEDs are suitable for demanding environments and customized engraving options.
Apem Q14F1CXXY02E Panel Mount LED Indicator Specifications:
- Size: 14 mm diameter
- Material: molded polycarbonate body, plated brass bezel
- Finish: bright chrome, black, satin grey
- Temperature Range: -40°C to +85°C
- Sealing: IP67 optional
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Torque: 75 cNm
- Max Panel Thickness: 11 mm
- LED Types: standard, super bright, hyper bright, RGB, bi-color, tri-color
- Voltage Range: 1.8 V to 33 VDC, 110 VAC, 220 VAC options
- Terminals: solder lug, Faston, short pins, wire connections
- Custom engraving available
- Environmental conditions: operated within -30°C to +85°C depending on body type
Buy the Buy LED Indicator Part Number Q14F1CXXY02E Online
Order the Q14 series panel mount LED indicators online today to enhance your control panels with reliable, high-brightness illumination. These indicators feature various bezel styles including prominent, recessed, and flush, with options for IP67 sealing for harsh environments. Suitable for a wide temperature range from -40°C to +85°C, they offer long life expectancy of 100,000 hours. Available in multiple colors and configurations, including RGB, bi-color, and tri-color options, with customizable engraving for identification needs. Easy to install with terminal options like solder lug, faston, pins, or wire.
Buy LED indicators from the Q14 series now and experience unmatched durability, high brightness, and customizable options for demanding industrial applications.
Frequently Asked Questions
Where can I buy Apem Q14F1CXXY02E?
You can click on the BUY or RFQ button to purchase Q14F1CXXY02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F1CXXY02E?
You can download the Q14F1CXXY02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F1CXXY02E?
Apem
