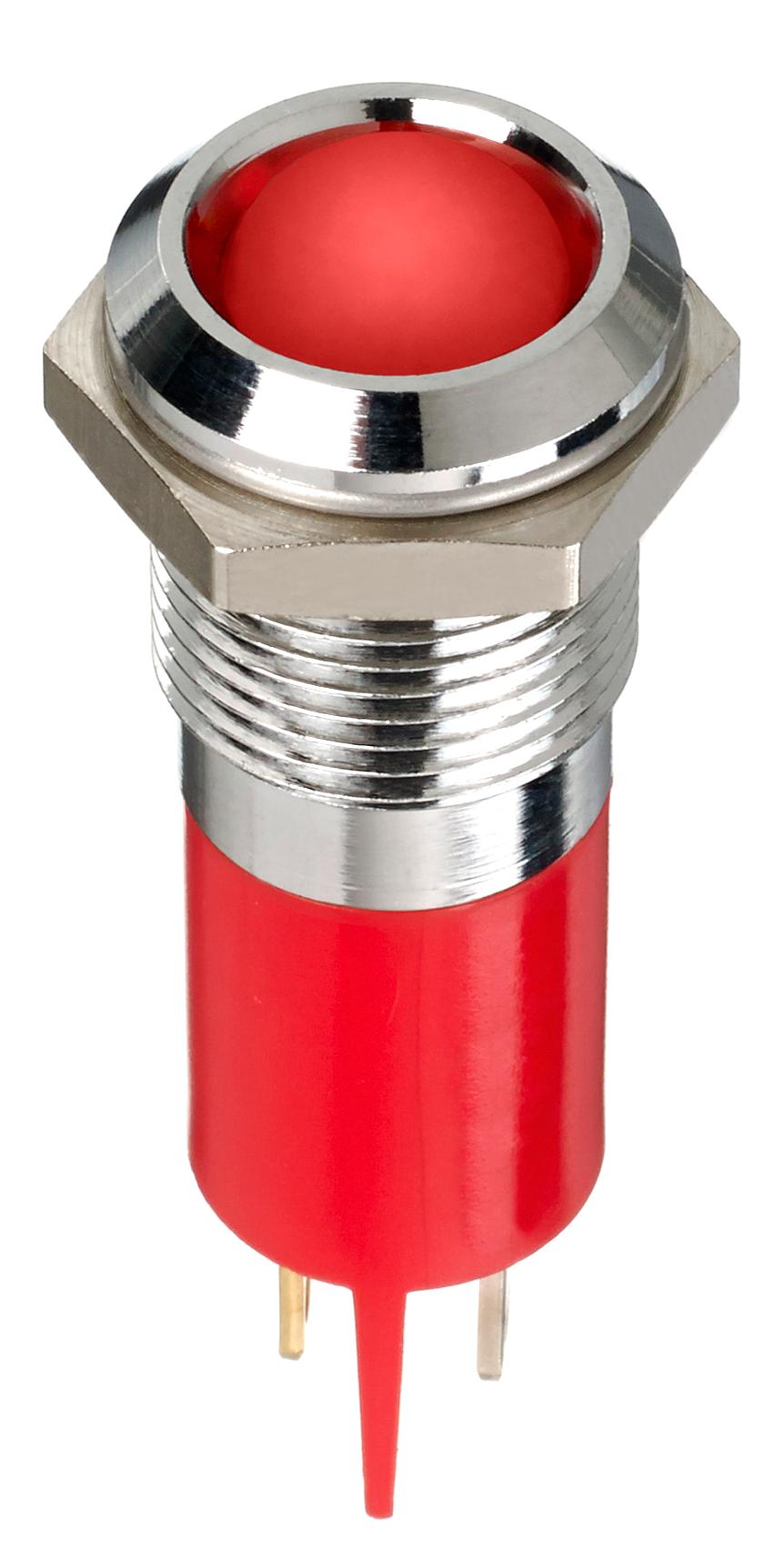

Apem Q16P1CXXHR12E LED Indicator
The Q16 series panel mount LED indicators are high-quality, 16 mm diameter illumination devices suitable for industrial and control panel applications. They feature secret until lit polycarbonate inserts for enhanced visual effect and customization. Options include water-clear or diffused epoxy lenses, with extensive various LED brightness levels—standard, super bright, and hyperbright—for visibility in different environments. The indicators are available with RGB color options, sealed IP67 variants for harsh environments, and multiple mounting styles with solder lug, faston terminals, or wires. Designed for durability, they support operating temperatures from -40°C to +85°C and have a life expectancy of 100,000 hours, ensuring reliable operation in demanding settings.
Apem Q16P1CXXHR12E LED Indicator Specifications:
- Diameter: 16 mm
- Sealing: IP67 (option)
- Operating Temperature Range: -40°C to +85°C
- Maximum Panel Thickness: 11 mm
- Bezel Material: Plated brass in bright chrome, black, satin grey
- Body Material: Moulded polycarbonate rear body
- LED Brightness Options: Standard, super bright, hyperbright
- Lens Diameter: 10 mm diffused epoxy or clear
- Viewing Angle: 30-100° (model dependent)
- Life Expectancy: 100,000 hours
- Maximum Reverse Voltage: 5 V
- Terminals: Solder lug, faston, wires, pins
- Electrical Ratings: 6 VDC to 28 VDC, 110 VAC to 220 VAC
- Color Options: Red, green, yellow, blue, white, orange, RGB, bi-color, tricolor
- Mounting Hole: 16 mm with ±0.15 mm tolerance
- Environmental Conditions: Suitable for harsh environments with sealing options
Buy the ApeM Series Q16 LED Indicator: Q16P1CXXHR12E
Enhance your control panels with the durable and versatile LED indicators of the Q16 series. These high-quality 16 mm panel mount lights feature secret until lit polycarbonate inserts, multiple color options including RGB, and various brightness levels from standard to hyperbright. With IP67 sealing, they are suitable for harsh environments and operate reliably between -40°C to +85°C. Designed for easy mounting with multiple terminal options, they have a lifespan of 100,000 hours, offering long-lasting performance and excellent visibility in demanding industrial settings. Purchase online today for trusted quality and customization.
Order your ApeM Series Q16 LED indicator with secret until lit polycarbonate inserts today and ensure reliable, customizable illumination for your control panels.
