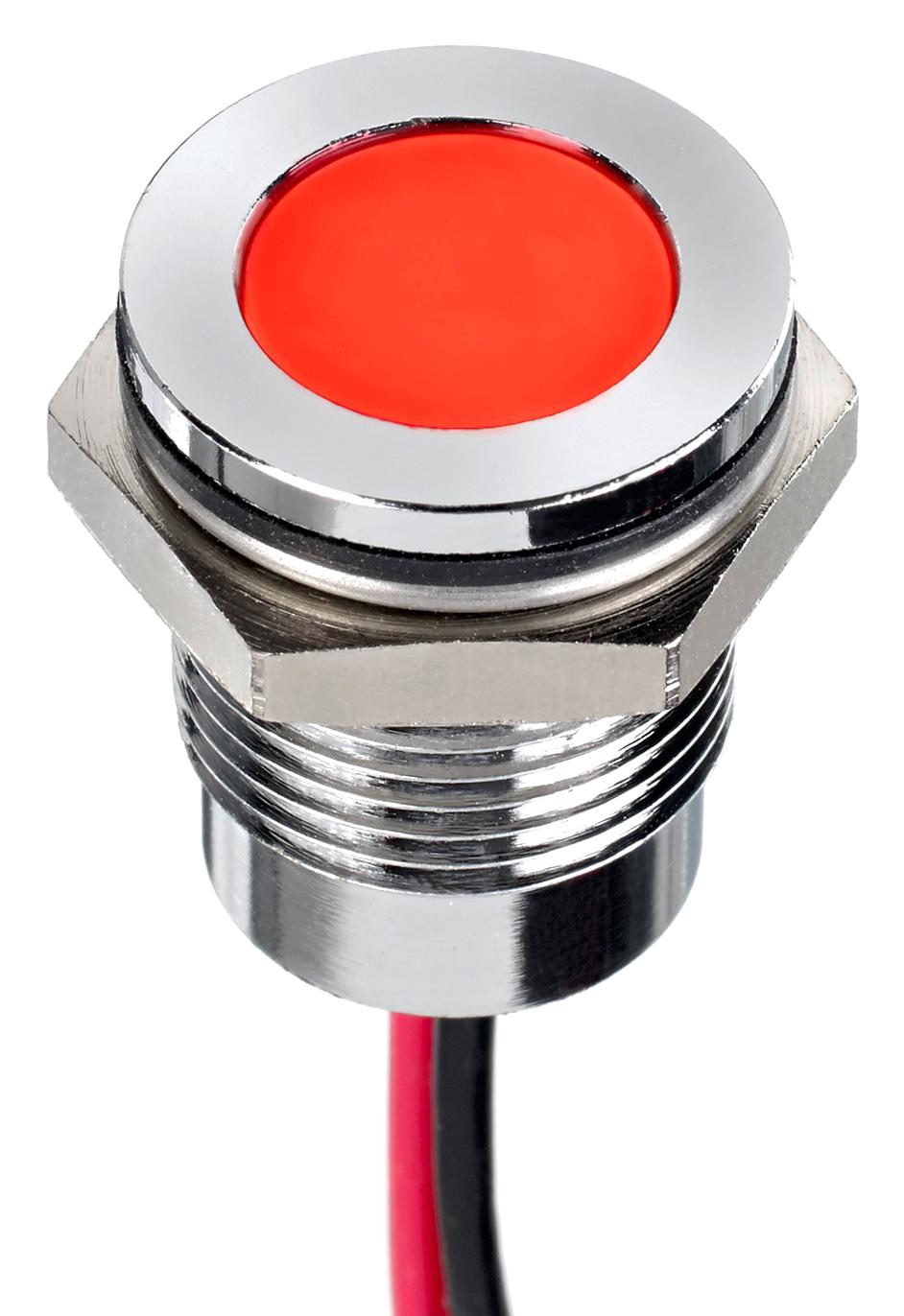

Apem Q19P5CZZRGB12ECA Panel Mount LED Indicator
The Q19 series panel mount LED indicators are designed for panel applications, featuring 19 mm diameter with various bezel styles including prominent, recessed, and extra prominent options. They come with diverse illumination options such as standard, super bright, hyper bright, RGB, bi-color, and tri-color LEDs. Constructed with durable materials like plated brass bezels finished in chrome, black, or satin gray, along with molded polycarbonate bodies, they are sealed to IP67 standards (model dependent). These indicators operate across a wide voltage range, with long life expectancy and multiple termination types including solder lug, faston, pins, and wire terminations for flexible installation.
Apem Q19P5CZZRGB12ECA Panel Mount LED Indicator Specifications:
- Diameter: 19 mm
- Bezel Finish: Bright chrome, black, satin grey, extra prominent
- Lens Colors: Red, green, yellow, blue, white, orange, RGB, bi-color, tri-color
- Mounting Thickness: Max 11 mm
- Sealing: IP67 (model dependent)
- Operating Temperatures: Rear plastic body -30 °C to +65 °C, rear epoxy body -40 °C to +85 °C
- Lifespan: 100,000 hours
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5 V
- Electrical: Various voltage options from 6 VDC to 220 VAC, including 12 V, 24 V, 110 V, 220 V
- LED Intensity: Standard, Super Bright, Hyper Bright, RGB options available
- Connections: Solder lug, faston, wire, pins, epoxy wires for RGB
- Terminals: Metal, solder lug, faston, pins, epoxy wires
- Material: Plated brass bezel, molded polycarbonate body
- Maximum Panel Thickness: 11 mm
- Custom engraving: Available with legend code suffix
Buy the Buy APEM Q19 Series Panel Mount LED Indicators Part Number Q19P5CZZRGB12ECA Online
Purchase the APEM Q19 Series 19 mm LED indicator online today for your industrial or electronic projects. These durable indicators feature IP67 sealing, long lifespan, and versatile mounting options including solder lug, faston, and wires. With colors ranging from standard to super bright, hyper bright, RGB, bi-color, and tri-color options, they suit a wide variety of signaling needs. Their sturdy construction from plated brass and polycarbonate ensures reliability even in harsh environments, making them ideal for control panels, machinery, and safety systems. Easy to install and customize with engraving.
Order your APEM Q19 Series LED Indicator with RGB illumination today and enhance your panels with reliable, high-brightness LED light solutions.
Frequently Asked Questions
Where can I buy Apem Q19P5CZZRGB12ECA?
You can click on the BUY or RFQ button to purchase Q19P5CZZRGB12ECA from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q19P5CZZRGB12ECA?
You can download the Q19P5CZZRGB12ECA datasheet or visit the Apem website for support.
Who is the manufacturer of Q19P5CZZRGB12ECA?
Apem
