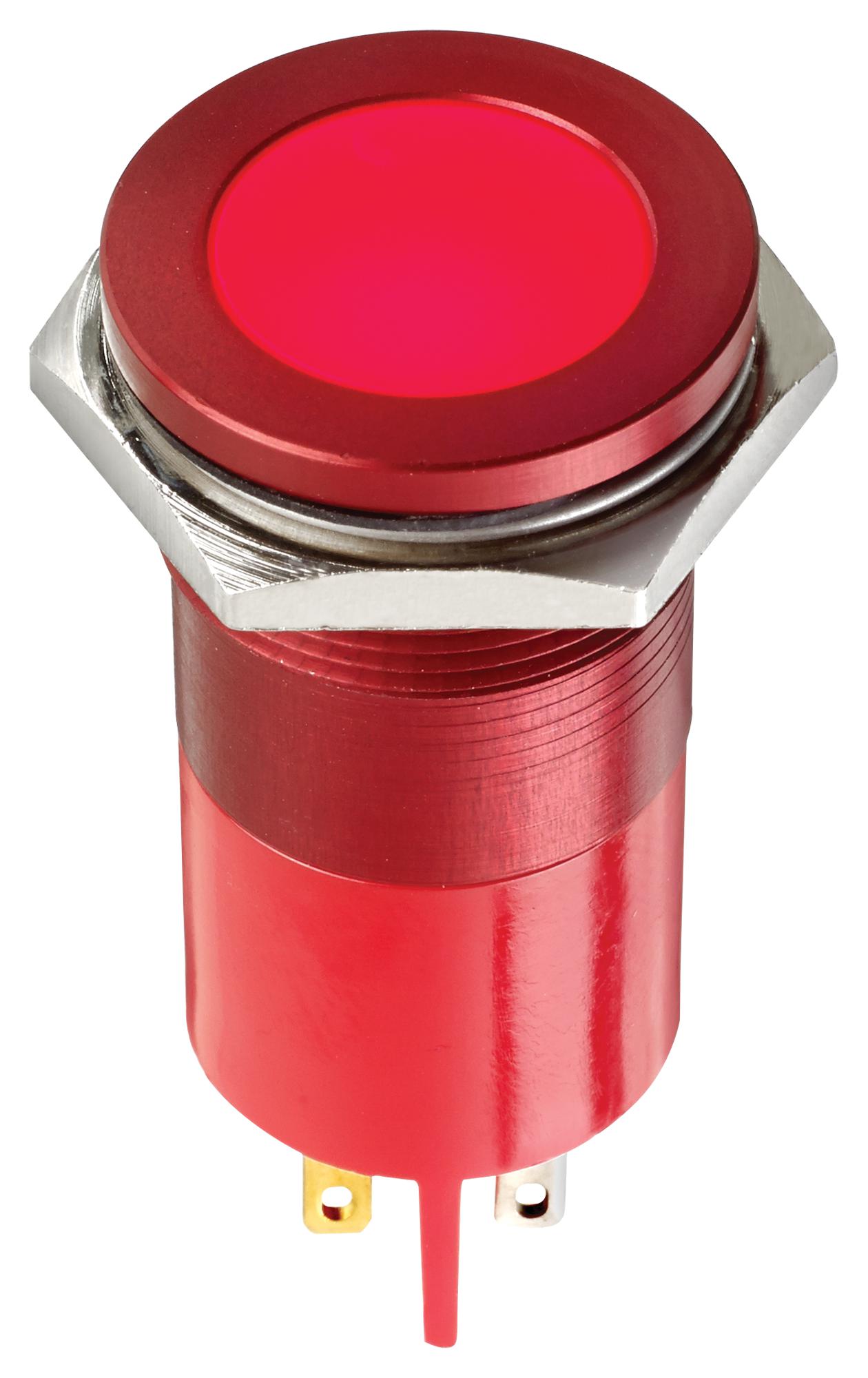

Apem Q22F1ARXXSR24AE Panel Mount LED Indicator
The Q22 series panel mount LED indicators feature 22mm size with various mounting styles including prominent, recessed, and flush bezels, suitable for industrial control panels. They offer options with diffused epoxy lenses, super bright LEDs, and custom engraving. Equipped with solder lug, faston terminals, or wire terminations, they are sealed to IP67 standard, providing reliable illumination for industrial applications. Operating at voltages from 3.3V to 264V DC/AC with a life expectancy of 100,000 hours, they are durable and versatile for demanding environments.
Apem Q22F1ARXXSR24AE Panel Mount LED Indicator Specifications:
- Size: 22mm panel mounting
- Operating Voltage Range: 3.3V to 264V DC/AC
- LED Types: Diffused epoxy, super bright
- illumination: Multiple colors including red, green, yellow, blue, white, bi-color, tri-color
- Sealing: IP67
- Operating Current: 40mA max
- Viewing Angle: 30-100°
- Luminous Intensity: 60-465mcd varies with LED type
- Forward Voltage: 3.3V to 9.9V depending on color and type
- Operating Temperature: -40°C to +85°C
- Material: Plastic bezel, epoxy lenses, polycarbonate rear body
- Terminals: Solder lug, faston, wire termination, or epoxy sealed pins
- Panel thickness: Prominent bezel up to 12mm, flush bezel up to 10mm
- Bezel Finish: Bright chrome, black chrome, satin grey, stainless steel, aluminum
- Durability: Life expectancy 100,000 hours
- Sealing Type: IP67, suitable for harsh environments
- Certification: UL Recognized
- Max Reverse Voltage: SV
- Torque: 100 cNm
Buy the APEM Q22F1ARXXSR24AE – Reliable Panel Mount LED Indicators for Industrial Applications
Enhance your industrial control panels with the APEM panel mount LED indicator. Featuring a 22mm size, IP67 sealing, multiple illumination options, and various mounting styles, it ensures durable, reliable performance. These indicators operate at a wide voltage range and are suitable for harsh environments. Easy to install with solder lug, faston, or wire termination options, they provide clear visual signals. Perfect for industrial automation, machinery, and control systems, order online now for fast delivery and exceptional performance.
Buy APEM Q22F1ARXXSR24AE now and experience unmatched reliability and performance in industrial indicator solutions.
Frequently Asked Questions
Where can I buy Apem Q22F1ARXXSR24AE?
You can click on the BUY or RFQ button to purchase Q22F1ARXXSR24AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22F1ARXXSR24AE?
You can download the Q22F1ARXXSR24AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q22F1ARXXSR24AE?
Apem
