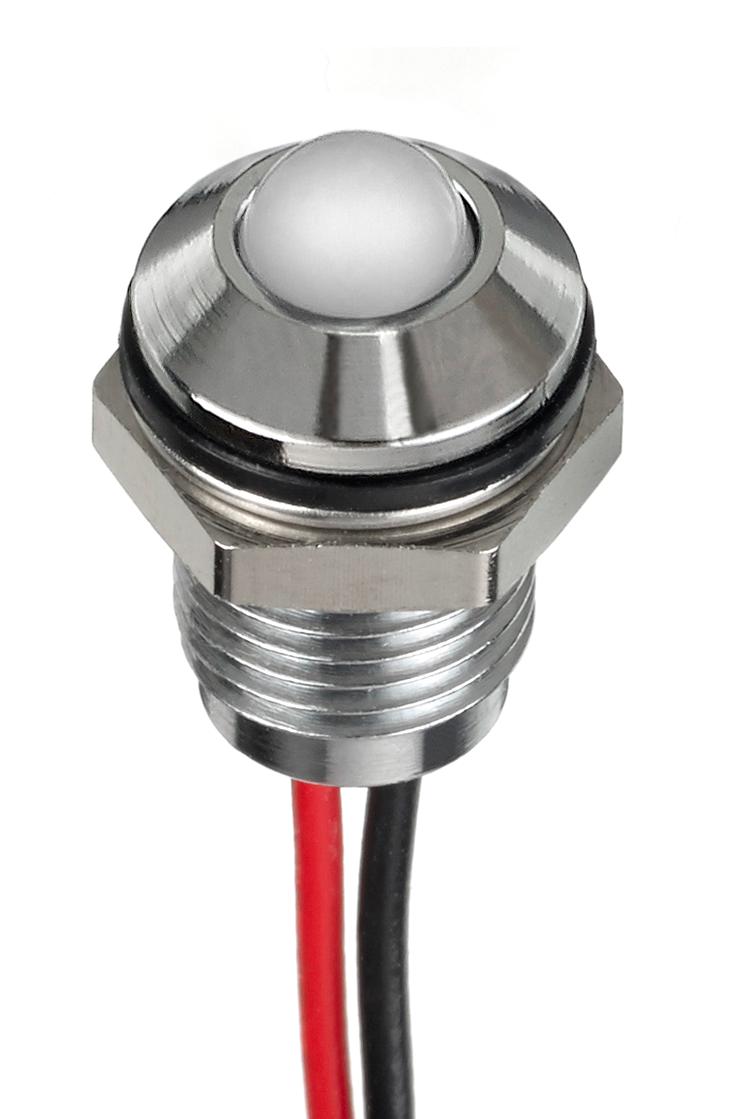

Apem Q6P5CXXW12E LED Indicator
The Q6 series 6 mm panel mount LED indicators offer high durability and visibility with diffused epoxy lenses and super bright LEDs in various colors. Features include recessed and flush bezel options, IP67 sealing for rugged environments, and multiple terminal configurations such as solder lug, pins, and wire leads up to 200 mm. Suitable for panel thicknesses up to 7 mm, these indicators operate efficiently across a wide temperature range, with life expectancy exceeding 100,000 hours. Ideal for signaling and illumination in industrial settings, they combine aesthetic versatility with technical performance.
Apem Q6P5CXXW12E LED Indicator Specifications:
- Lens Diameter: 3 mm diffused epoxy or water clear
- Max Panel Thickness: 7 mm
- Sealing: IP67 (optional)
- Operating Temperature Range: -30°C to +65°C rear plastic body, -40°C to +85°C epoxy body
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Materials: Plated brass bezel finished in bright chrome, black or satin grey; molded polycarbonate rear body
- Mounting Hole: 6 mm
- Electrical: Standard voltage options from 1.8 V to 28 VDC, with resistor options for current regulation
- LED Types: Diffused, super bright, hyper bright, in multiple colors including red, green, yellow, blue, white, and orange
- Terminals: Solder lug, pins, or 200 mm wires, various styles available
- Operating & Storage Temperature: Up to 85°C for epoxy bodies, down to -40°C for rear epoxy bodies
- Features: Prominent and recessed styles, multiple label options, bi-color configurations available
- Environmental: Rugged, sealed, suitable for industrial applications
Buy the Acme Series Q6 LED Indicators: Q6P5CXXW12E
Enhance your control panels with the high-performance Q6 series LED indicators, featuring diffused lenses and multiple mounting options. These rugged indicators are IP67 sealed for maximum durability and lifespan over 100,000 hours. Perfect for industrial environments, they come in various colors and brightness levels, including super and hyper bright options. Easy to install with solder lug, pins, or long wire connections, ensuring seamless integration into your projects. Order online now for fast delivery and dependable quality in signaling solutions.
Order your Acme Series Q6 LED indicators today and enjoy reliable, high-brightness signaling for industrial projects.
