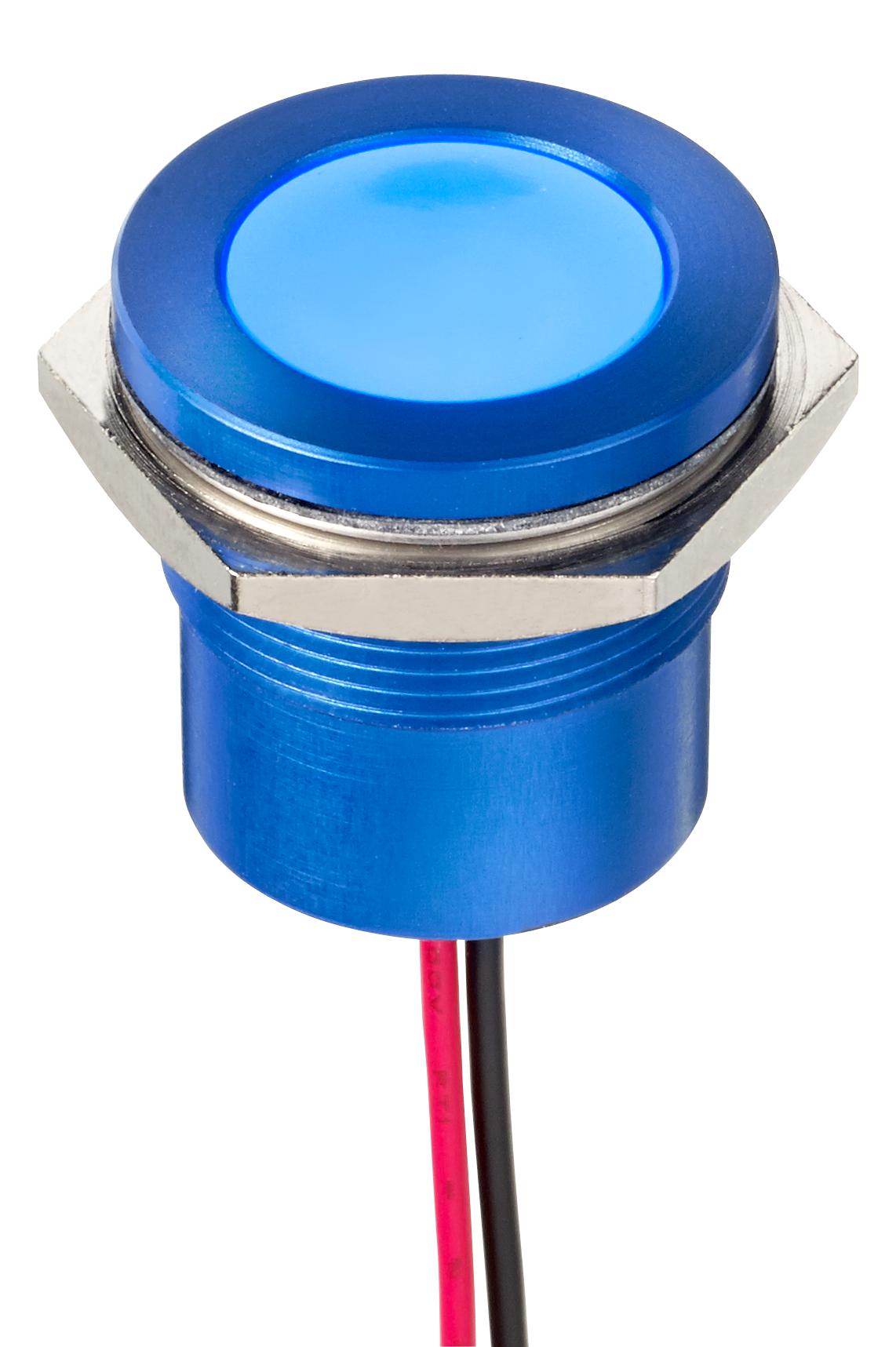

Apem Q22F5ABXXB220E Panel Mount LED Indicator
The Q Series 22mm panel mount LED indicators provide reliable illumination with multiple color options, high IP67 sealing, and various bezel styles including prominent, recessed, and flush. Available with solder lug, Faston terminals, or wire terminations, these indicators feature high durability, long life expectancy of 100,000 hours, and operate across a wide voltage range from 3.3V to 253VAC. Constructed with high-quality materials like plated brass bezels, polycarbonate bodies, and optional stainless steel or anodized aluminum bezels, they are ideal for industrial applications requiring visibility, durability, and custom engraving options.
Apem Q22F5ABXXB220E Panel Mount LED Indicator Specifications:
- Diameter: 22mm
- Bezel Material: Plated brass finished in bright chrome, black chrome, satin grey, stainless steel, or anodized aluminum
- Lens Type: Diffused epoxy or super bright LEDs
- Viewing Angle: 30-100° depending on model
- Operating Voltage: 3.3-99VDC, 12VDC, 24VDC, 28VDC, 110VAC, 220VAC
- Operating Current: Max 40mA
- Life Expectancy: 100,000 hours
- Temperature Range: -40 to +85°C
- Sealing: IP67 (optional)
- Panel Cutout: 22mm diameter
- Connection Options: Solder lug, Faston terminals, wire termination
- LED Types: Monochrome, bi-color, tri-color
- LED Forward Voltage: Red 5.7V, Green 6.0V, Yellow 5.9V, Blue 9.9V, White 3.3V
- Luminous Intensity: Red 82mcd, Green 95mcd, Yellow 60mcd, Blue 120mcd, White 150mcd at typical operating current
- Bezel Options: Prominent, recessed, flush
- Extra Features: Custom engraving, secret until lit options, fixing nut and spring washer included
Buy the APEM Q22F5ABXXB220E – Reliable Industrial Panel Mount LED Indicators
Purchase the reliable APEM Panel Mount LED Indicator today to enhance visibility in industrial settings. Designed with high IP67 sealing, customizable bezel styles, and multiple LED color options, it offers long life expectancy and wide voltage compatibility. Easy to install with solder lug, Faston terminals, or wire terminations, this indicator ensures durability, quick troubleshooting, and clear status indication. Order now for dependable performance in machinery, control panels, and automation systems, ensuring safety and operational efficiency.
Get APEM Q22F5ABXXB220E today—built for durability and high visibility in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q22F5ABXXB220E?
You can click on the BUY or RFQ button to purchase Q22F5ABXXB220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22F5ABXXB220E?
You can download the Q22F5ABXXB220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22F5ABXXB220E?
Apem
