Apem Q22F5AYXXSY28AE Panel Mount LED Indicator
The Q22 series panel mount LED indicators feature 22mm diameter with various bezel finishes, including bright chrome, black chrome, satin gray, and stainless steel options. They accommodate different LED types, including diffused epoxy and super bright LEDs, with multiple color and multi-color configurations such as bi-color and tri-color versions. These indicators operate across a wide voltage range, from 3.3VDC to 253VAC, with a life expectancy of 100,000 hours. They are sealed, durable, and suitable for various industrial panel applications, offering customizable engravings and multiple termination options for flexible wiring.
Apem Q22F5AYXXSY28AE Panel Mount LED Indicator Specifications:
- Diameter: 22mm
- Bezel finishes: Bright chrome, black chrome, satin gray, stainless steel, anodized aluminum
- LED types: Diffused epoxy, super bright LEDs, bi-color, tri-color
- Voltage Range: 3.3VDC to 253VAC
- Current: Max 40mA
- Luminous Intensity: Red 82mcd to 465mcd, Green 66mcd to 980mcd, Yellow 59mcd to 1250mcd, Blue 101mcd, White 150mcd
- Forward Voltage: 3.3V to 9.9V depending on color
- Viewing Angle: 30-100°
- Operating Temperature: -40°C to +85°C
- Sealing: IP67 option available
- Life Expectancy: 100,000 hours
- Terminals: Solder lug, faston, rear epoxy wires, pins
- Max Panel Thickness: 10-12mm
- Material: ABS plastic bezel, polycarbonate rear body
- Custom engravings and secret until lit options available

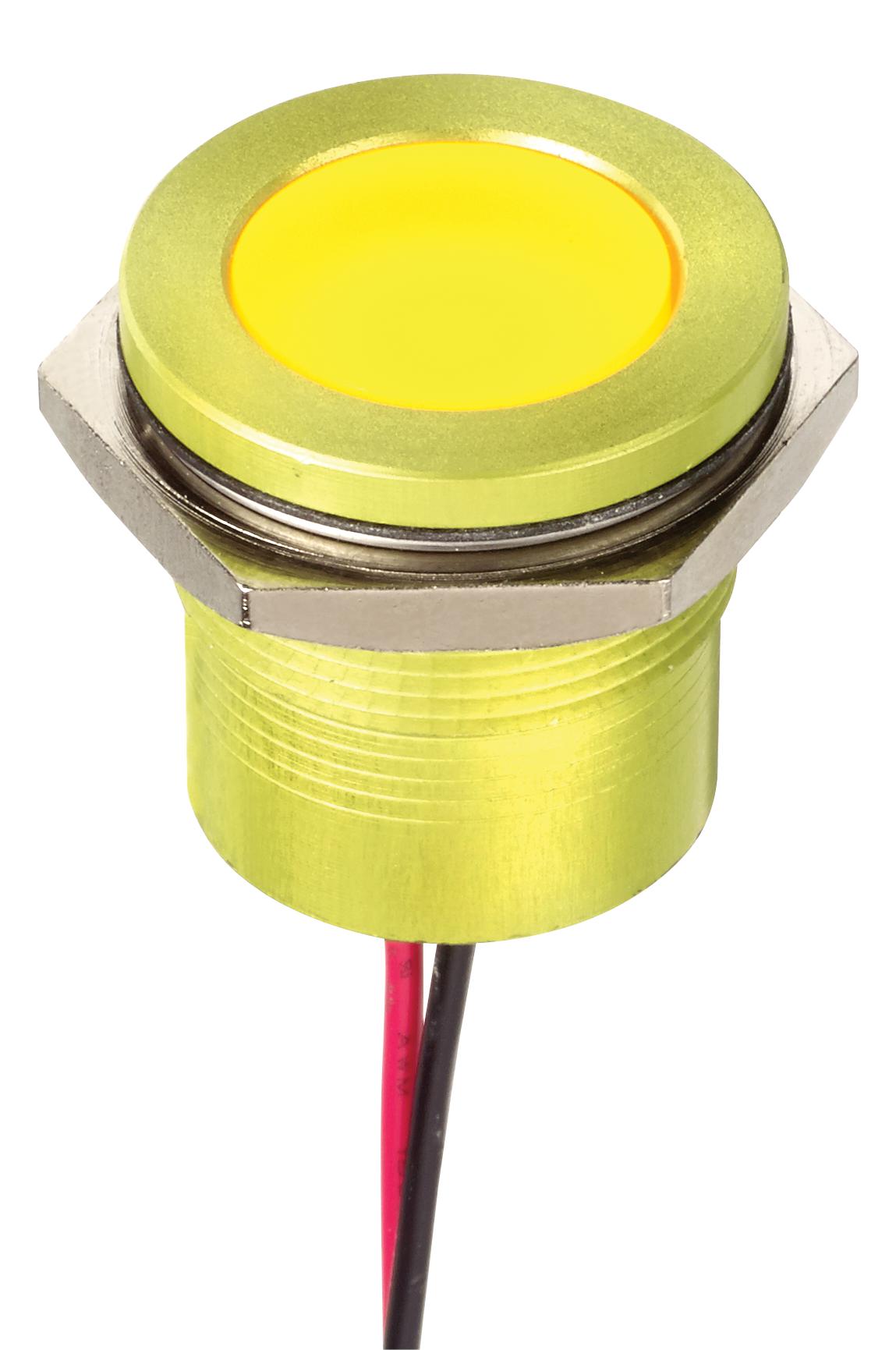

Buy the APEM Series Q22LEDPanel Indicator: Q22F5AYXXSY28AE
Purchase the APEM Series Q22 panel mount LED indicator online today and upgrade your control panels with a high-quality, durable, and customizable lighting solution. Designed with a 22mm diameter, these indicators come in various bezel finishes like bright chrome, black chrome, satin gray, and stainless steel, offering excellent visibility in industrial environments. They support multiple voltages from 3.3VDC to 253VAC, provide up to 100,000 hours of lifespan, and feature options for custom engravings, secret lit markings, and IP67 sealing. Versatile wiring options include solder lug, faston, epoxy wires, and pins, making installation straightforward and flexible.
Order your APEM Series Q22F5AYXXSY28AE panel mount LED indicator today and enhance your industrial panel with reliable, durable lighting solutions.
Frequently Asked Questions
Where can I buy Apem Q22F5AYXXSY28AE?
You can click on the BUY or RFQ button to purchase Q22F5AYXXSY28AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22F5AYXXSY28AE?
You can download the Q22F5AYXXSY28AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q22F5AYXXSY28AE?
Apem
