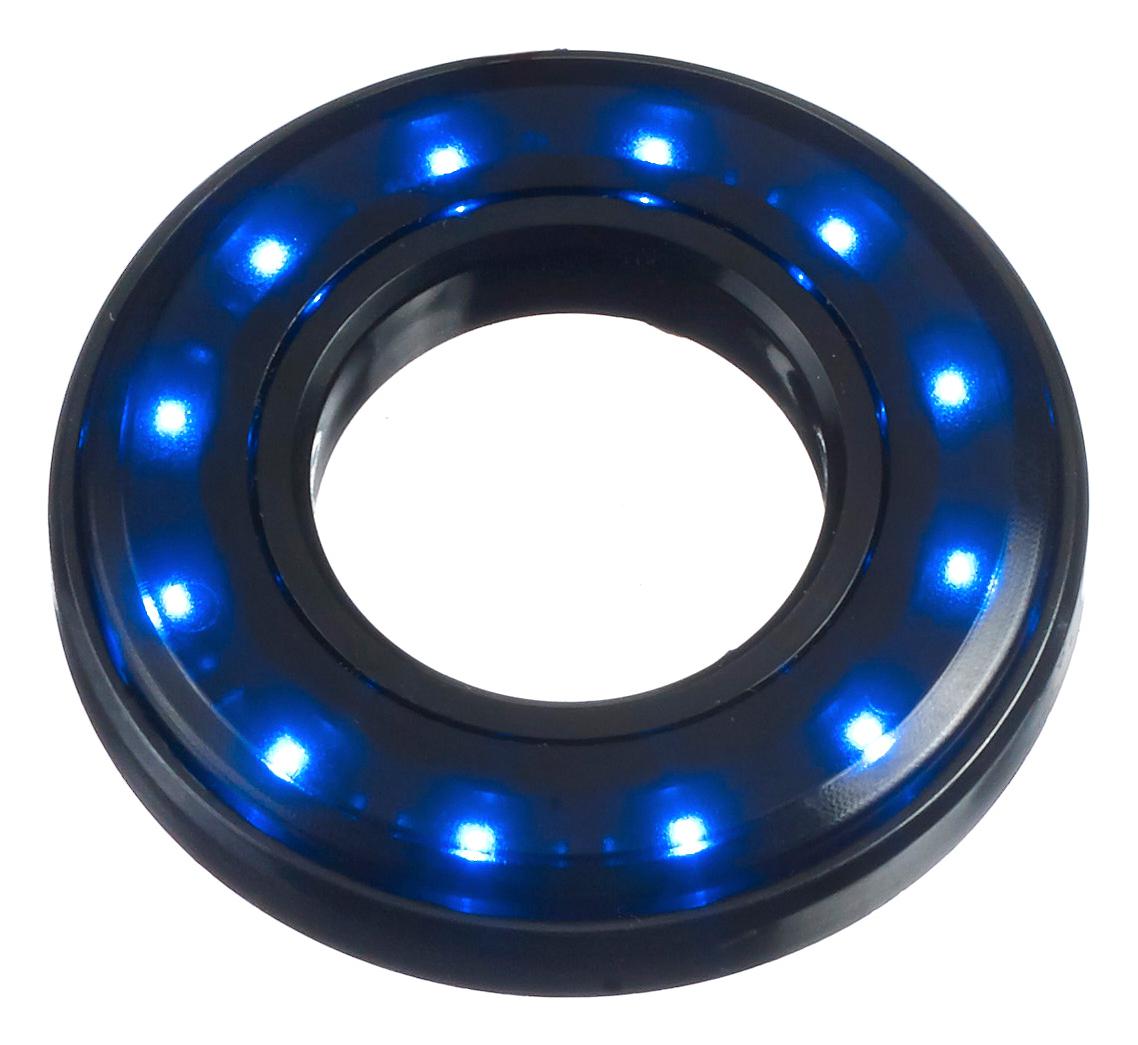

Apem QH19028RGBC Halo LED indicator
The QH series Halo LED illumination offers versatile, panel-sealed lighting solutions with single, dual, and RGB color options, designed for easy integration with switch panels and indicators. Available in sizes 16mm, 19mm, and 22mm, they feature a robust body and lens material made of PC, ensuring durability up to IP67 standards. These LEDs operate at 12-24 VDC with a lifespan of 50,000 hours, providing high luminous intensity for industrial and automation applications. Their environmental resilience, including EMC immunity and temperature tolerance, makes them suitable for demanding operational conditions.
Apem QH19028RGBC Halo LED indicator Specifications:
- Size options: 16mm, 19mm, 22mm, 22mm oversized
- Body: PC, Lens: PC
- Panel Seal: IP67 according to EN60529:1992
- Operating Voltage: 12VDC to 24VDC with 26.4V max
- Operating Current: 42 mA to 20 mA
- Life Expectancy: 50,000 hours
- LED Types: Single, Dual, RGB with 12 LEDs
- Colors Available: White, Red, Green, Yellow, Blue, RGB
- Wire Length: 200 mm, 26 AWG UL1061
- Environmental Resistance: EMC immunity EN61000-4-3, EN61000-6-4, electrostatic up to +/-15 KV
- Operating Temperature: -30°C to +70°C
- Material: PC for body and lens
- Max Reverse Voltage: 5 VDC
Buy the APEM Series QH Halo LED Illumination: QH19028RGBC
Enhance your industrial control panels with the APEM Halo LED indicator from the QH series. Available in multiple sizes and colors, these robust LEDs feature IP67 sealing for maximum environmental protection. Easy to install with 200 mm wire leads, they operate reliably at 12 to 24 VDC and provide a lifespan of 50,000 hours. Ideal for automation, equipment, and safety indicator applications, ensuring clear visual signals even in harsh conditions, backed by high luminosity and durable materials.
Buy APEM QH19028RGBC now and experience unmatched reliability and performance with durable IP67 sealing and vibrant color options for industrial indicator lighting.
Frequently Asked Questions
Where can I buy Apem QH19028RGBC?
You can click on the BUY or RFQ button to purchase QH19028RGBC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH19028RGBC?
You can download the QH19028RGBC datasheet or visit the Apem website for support.
Who is the manufacturer of QH19028RGBC?
Apem
