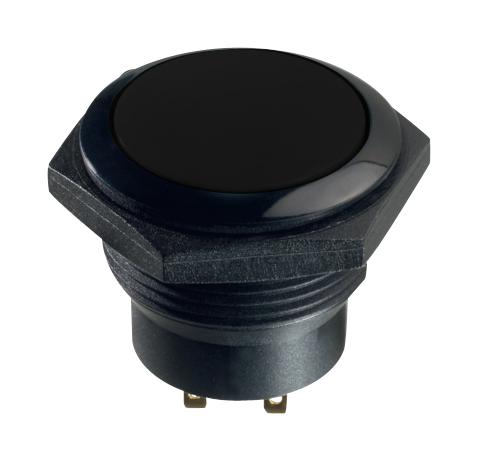

Apem FPDR1B1422X0XXX Industrial Pushbutton Switch
The FP series fully illuminated pushbutton switches feature 30 mm bushing, available in momentary or latching functions, with electrical ratings of up to 4A 12VDC for resistive loads. Constructed with durable materials like PA46 for the case, ABS bezels, and actuator in PA12, these switches provide long electrical life, with momentary models rated for 1 million cycles and latching for 200,000 cycles. They are suitable for industrial control panels, with options for LED illumination, symbols, and various mounting configurations, ensuring reliable operation in demanding environments.
Apem FPDR1B1422X0XXX Industrial Pushbutton Switch Specifications:
- Bushing Diameter: 30 mm
- Case Material: PA46
- Actuator Material: PA12, gloss finish
- Bezel Material: ABS, gloss finish
- Electrical Ratings: 4A 12VDC resistive load (silver contacts), 200mA 12VDC (gold plated contacts)
- Electrical Life: 1 million cycles (momentary, gold contacts), 400,000 cycles (silver contacts), 200,000 cycles (latching)
- Contact Resistance: 50 mΩ max
- Insulation Resistance: 1 GΩ min at 500 VDC
- Dielectric Strength: 1,000 Vrms min.
- Panel Thickness: 1.5 to 2.5 mm (snap-in), up to 9 mm (threaded bushing)
- Total Travel: 2.8 mm + 0.5 mm
- Operating Temperature: -40°C to +75°C
- Operating Force: 8N ± 2N
- Torque: 2 Nm max.
- Wiring Terminals: Solder lugs
- Mounting Options: Snap-in, threaded bushing
- Symbols and LED options available
- Suitable for industrial control, automation, machinery panels
Buy the Acme FP – Reliable Pushbutton Switches for Industrial Applications
Discover the durable and reliable FP series fully illuminated pushbutton switches, perfect for industrial control panels. With 30 mm bushing diameter, options for momentary or latching functions, adjustable panel mountings, and LED illumination, these switches ensure long-lasting performance. Made with sturdy materials like PA46, ABS, and PA12, they thrive in tough environments. Easy to install, maintain, and customize with various symbols and lighting options, they are ideal for automation, machinery, and control applications. Purchase online today for quality you can trust and seamless integration into your projects.
Order your Acme FP series pushbutton switches today and enhance your control panels with dependable, versatile, LED-illuminated operation in demanding environments.
Frequently Asked Questions
Where can I buy Apem FPDR1B1422X0XXX?
You can click on the BUY or RFQ button to purchase FPDR1B1422X0XXX from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part FPDR1B1422X0XXX?
You can download the FPDR1B1422X0XXX datasheet or visit the Apem website for support.
Who is the manufacturer of FPDR1B1422X0XXX?
Apem
