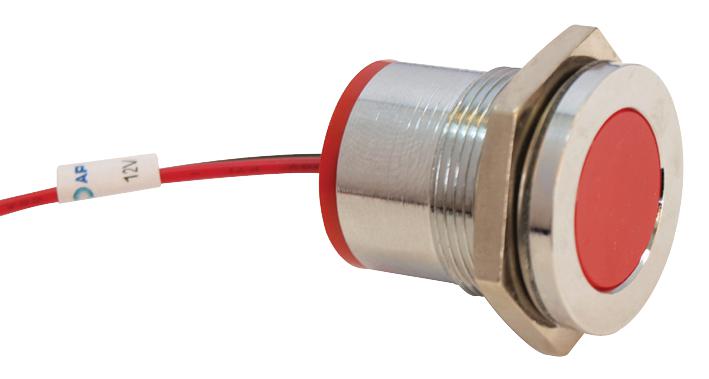

Apem Q22F7CXXR12E LED Indicator
The Q series panel-mount LED indicator features a plated brass bezel in bright chrome, black chrome, or satin grey, along with ABS plastic bezels in bright chrome, satin grey, gold, and black. Equipped with an 18mm diffused epoxy lens, it includes epoxy-sealed pin and wire options at the rear. Capable of producing two colors with bicolour LEDs and yellow with tricolour LEDs, the device supports voltages up to 28V DC. It comes with a 200mm long wire, Faston terminals for easy wiring, and supports daisy chaining and lamp testing, making it ideal for industrial signaling.
Apem Q22F7CXXR12E LED Indicator Specifications:
- Bezel Finish: Bright Chrome, Black Chrome, Satin Grey, Gold, Black
- Lens: 18mm diffused epoxy
- Terminals: 200mm long wire, Faston, pins, or solder lugs
- Material: Plated brass, ABS plastic
- Max Panel Thickness: 12mm (prominent), 10mm (flush)
- Voltage Range: 5.5VDC to 28VDC, 110VAC, 230VAC
- Forward Voltage: Red 5.7V, Green 5.9V, Yellow 5.9V, Blue 10V, White 3.6V
- Luminous Intensity: Red 885 mcd, Green 980 mcd, Yellow 1250 mcd, White 200 mcd
- Viewing Angle: 100°
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C
- IP67 sealing option available
- Max Panel Thickness: 12mm for prominent, 10mm for flush bezel
- LED Colors: Red, Green, Yellow, Blue, White, Bicolour (Red/Green), Tricolour (Red/Green/Yellow)
Buy the APEM Series Q LED Indicator: Q22F7CXXR12E
Order the APEM Series Q LED Indicator online today and enhance your industrial signaling with durable, high-performance indicators. Featuring 22mm panel mounting, diffused epoxy lenses, and a variety of bezel finishes, these indicators are suitable for various voltage applications up to 28V DC or AC. They come with epoxy-sealed pin and wire options, Faston terminals, and support daisy chaining and lamp testing functions. Ideal for alert, status, and control signaling in demanding environments, ensuring long-lasting reliability and visibility.
Buy APEM Q22F7CXXR12E LED indicator now and experience reliable industrial signaling with multi-voltage compatibility and durable construction.
Frequently Asked Questions
Where can I buy Apem Q22F7CXXR12E?
You can click on the BUY or RFQ button to purchase Q22F7CXXR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22F7CXXR12E?
You can download the Q22F7CXXR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22F7CXXR12E?
Apem
