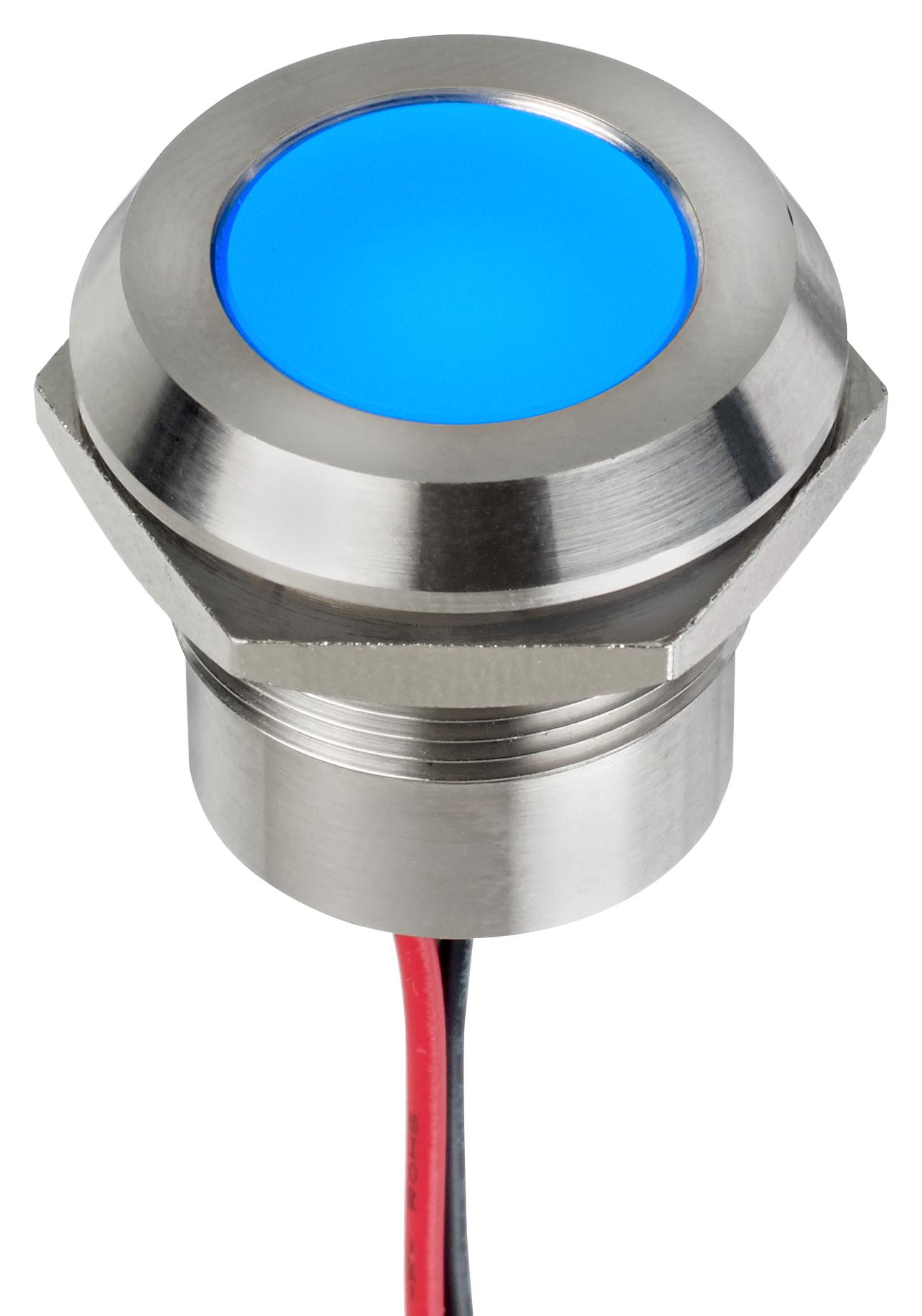

Apem Q22Y5SXXB24E LED Indicator
The Q22 series is a range of 22 mm panel mount LED indicators designed for industrial and automation applications. These indicators feature various lens options, including diffused epoxy or super bright LEDs, and can be customized with secret until lit decals or engraving. They offer multiple mounting configurations such as solder lug, faston terminals, pins, or wire terminations, with sealing options up to IP67. Suitable for panel thickness up to 12 mm, these indicators provide high brightness, long life expectancy of 100,000 hours, and operate within a temperature range of -40°C to +85°C, ensuring durability in harsh environments.
Apem Q22Y5SXXB24E LED Indicator Specifications:
- Lens options: 16.75 mm diffused epoxy or super bright LEDs
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Panel Thickness: Max 12 mm (Prominent), 10 mm (Flush)
- Materials: Plated brass bezel in chrome, black or satin grey, polycarbonate rear body
- Electrical: Various voltage options from 3.3V to 235VAC; LED intensity varies with color and brightness
- Sealing options: Unsealed, IP67 (with sealing option), with different termination configurations
- Mounting: Panel mount with threading M22x1.0, and compatible with solder lug, faston, pins, or wiring
Buy the BrandPartNumber – Reliable Indicator for Industrial Applications
Enhance your industrial control systems with the Q22 series LED indicators. Featuring customizable lenses, sealing options up to IP67, and a variety of mounting and termination styles, these indicators deliver high brightness and long-lasting performance. Ideal for panel mounting in harsh environments, they operate efficiently across a wide temperature range. Easy to install and highly durable, the Q22 series is the perfect solution for clear, reliable status indication in automation and manufacturing settings. Purchase online today for quick delivery and unmatched quality.
Buy Q22 series LED indicators from BrandPartNumber now and experience unmatched reliability and performance in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXB24E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXB24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXB24E?
You can download the Q22Y5SXXB24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXB24E?
Apem
