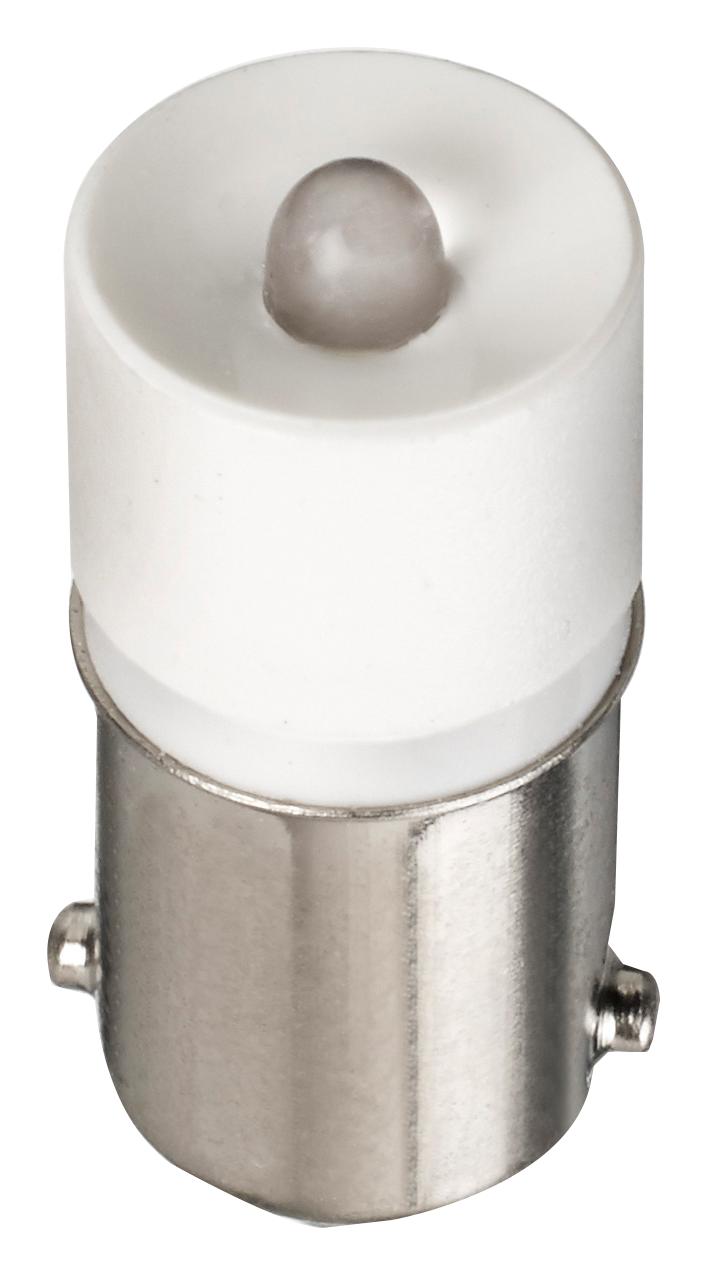

Apem BA9SW230A Bayonet Cap LED
The BA9SW230A is a bayonet cap-based LED suitable for both bulb replacement and illumination, available in single and multichip configurations. It supports operating temperatures from -20 °C to +70 °C and is compatible with voltages from 6 VDC to 230 VAC, with current variations depending on the version. Constructed with a polycarbonate body and nickel-plated brass base, it offers diverse color options like red, green, yellow, blue, and white, with luminous intensities ranging from 105 to 2,070 mcd. Ideal for various applications, it combines durability and reliable brightness in secure bayonet fittings.
Apem BA9SW230A Bayonet Cap LED Specifications:
- Operating Temperature Range: -20 °C to +70 °C
- Supported Voltages: 6 VDC to 230 VAC
- Current Range: 9 to 17 mA depending on version
- Luminescent Intensity: 105 to 2,070 mcd
- Material Body: Polycarbonate
- Base Material: Nickel plated brass
- Color Options: Red, Green, Yellow, Blue, White
- Build Options: Single chip, Multichip configurations
- Voltage Options: 6V, 12V, 24V, 28V, 48V, 130VAC, 230VAC
- Bayonet Cap Design for secure installation
- Suitable for automation, indicator, and replacement lighting applications
Buy the Buy APEM BA9SW230A Part Number BA9SW230A Online
Discover the reliable and energy-efficient APEM Bayonet Cap LED model BA9SW230A, designed for precise bulb replacement and illumination. Compatible with voltages from 6 VDC to 230 VAC and built with durable polycarbonate and nickel-plated brass, this LED offers a wide range of colors including red, green, yellow, blue, and white, with luminous intensities up to 2,070 mcd. Suitable for various industrial applications, its compact bayonet cap ensures easy installation. Purchase online today to benefit from fast delivery, competitive pricing, and trusted quality for your lighting needs.
Order your APEM Series BA9SW230A LED today and enhance your lighting projects with reliable, high-brightness bayonet cap illumination.
Frequently Asked Questions
Where can I buy Apem BA9SW230A?
You can click on the BUY or RFQ button to purchase BA9SW230A from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part BA9SW230A?
You can download the BA9SW230A datasheet or visit the Apem website for support.
Who is the manufacturer of BA9SW230A?
Apem
