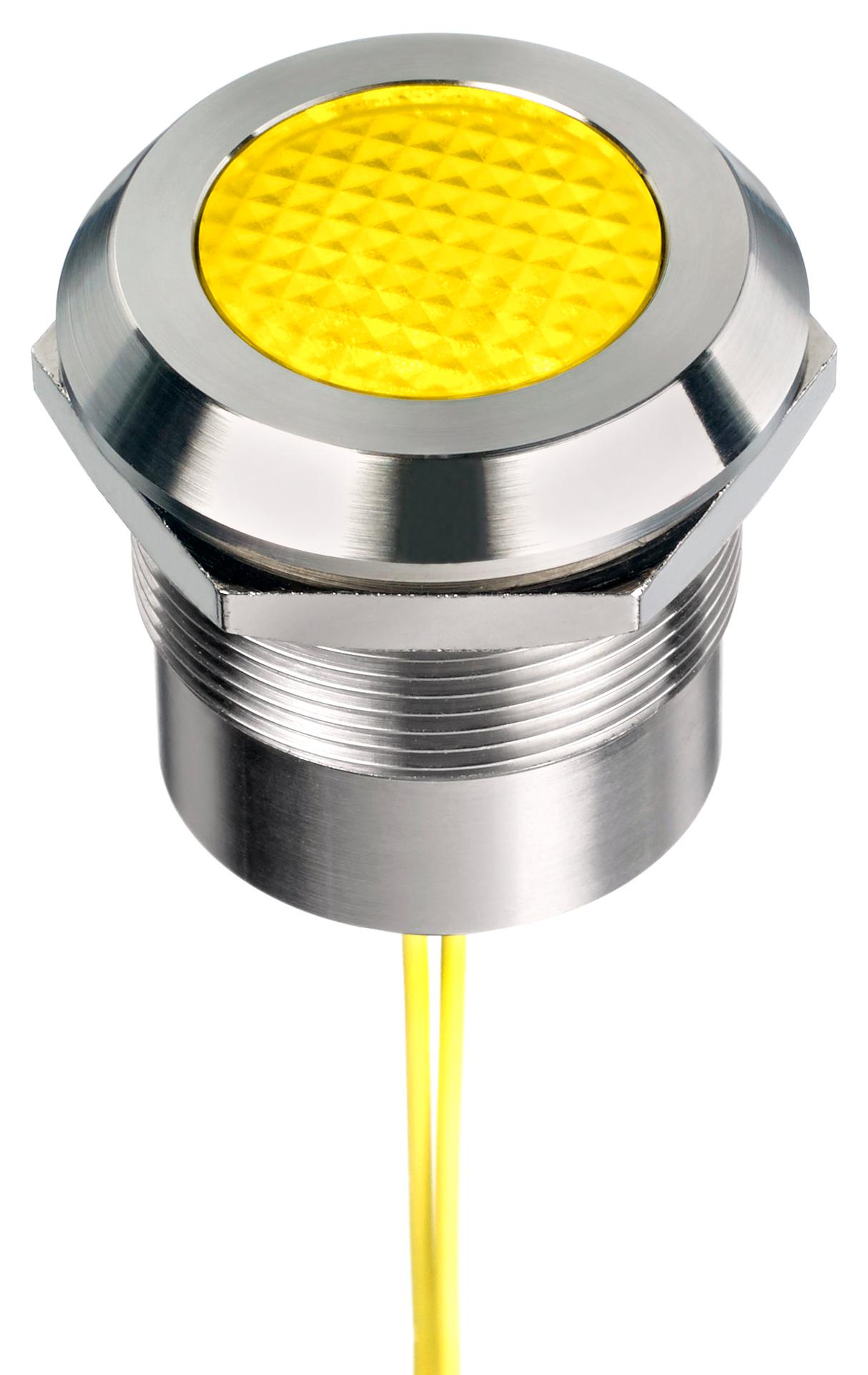

Apem Q25Y5SXXY1AE Industrial LED Indicator
The Q25 series features 25mm panel mount LED indicators designed for industrial visibility. These indicators incorporate an 18.2mm colored Fresnel lens, sealed rear epoxy construction, and a stainless steel 316L body for durability. Operating at 12 to 24 Vac/d with a current of 30mA, they have no polarity and include over-voltage protection at 36 V. Suitable for panel thickness up to 9mm, they deliver a life expectancy of 100,000 hours, offer a 60° viewing angle, and are tested to IP67 & IP69K standards. The indicators include 200 mm UL1007 wire leads for versatile installation. Available in various LED colors, they are ideal for industrial automation and control panels.
Apem Q25Y5SXXY1AE Industrial LED Indicator Specifications:
- Size: 25mm panel mount
- Lens: 18.2mm colored Fresnel
- Material: Stainless steel 316L body, PC lens, Nitrile O-ring
- Sealing: Rear epoxy sealed, tested to IP67 & IP69K
- Operating Voltage: 12 to 24 Vac/d
- Current Consumption: 30mA at 30mA typical
- Over-voltage Protection: Activates at 36 V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 9mm
- Wire Length: 200 mm, UL1007 20 AWG
- Temperature Range: Operating -40°C to +85°C, Storage -40°C to +100°C
- Body Material: Stainless steel 316L
- LED Colors: Red, Green, Yellow, Blue, White
- Mounting Torque: 75 cNm / 0.75 Nm
Buy the APEM Q25Y5SXXY1AE – Reliable LED Indicators for Industrial Applications
Buy the APEM SeriesQ25 LED indicator online today for your industrial control panels. Featuring a 25mm size, sealed design, stainless steel body, and multiple LED color options, this reliable indicator operates at 12 to 24 VAC with 30mA current. It’s protected against dust, water, and impact with IP67 & IP69K ratings, ensuring durability in harsh environments. Easy to install with 200mm wire leads, it offers a lifespan of 100,000 hours and a 60° viewing angle, making it the perfect choice for industrial automation needs.
Order your APEM SeriesQ25 LED indicators today and enhance your industrial control panels with dependable, sealed LED indicators designed for harsh environments.
Frequently Asked Questions
Where can I buy Apem Q25Y5SXXY1AE?
You can click on the BUY or RFQ button to purchase Q25Y5SXXY1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q25Y5SXXY1AE?
You can download the Q25Y5SXXY1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q25Y5SXXY1AE?
Apem
