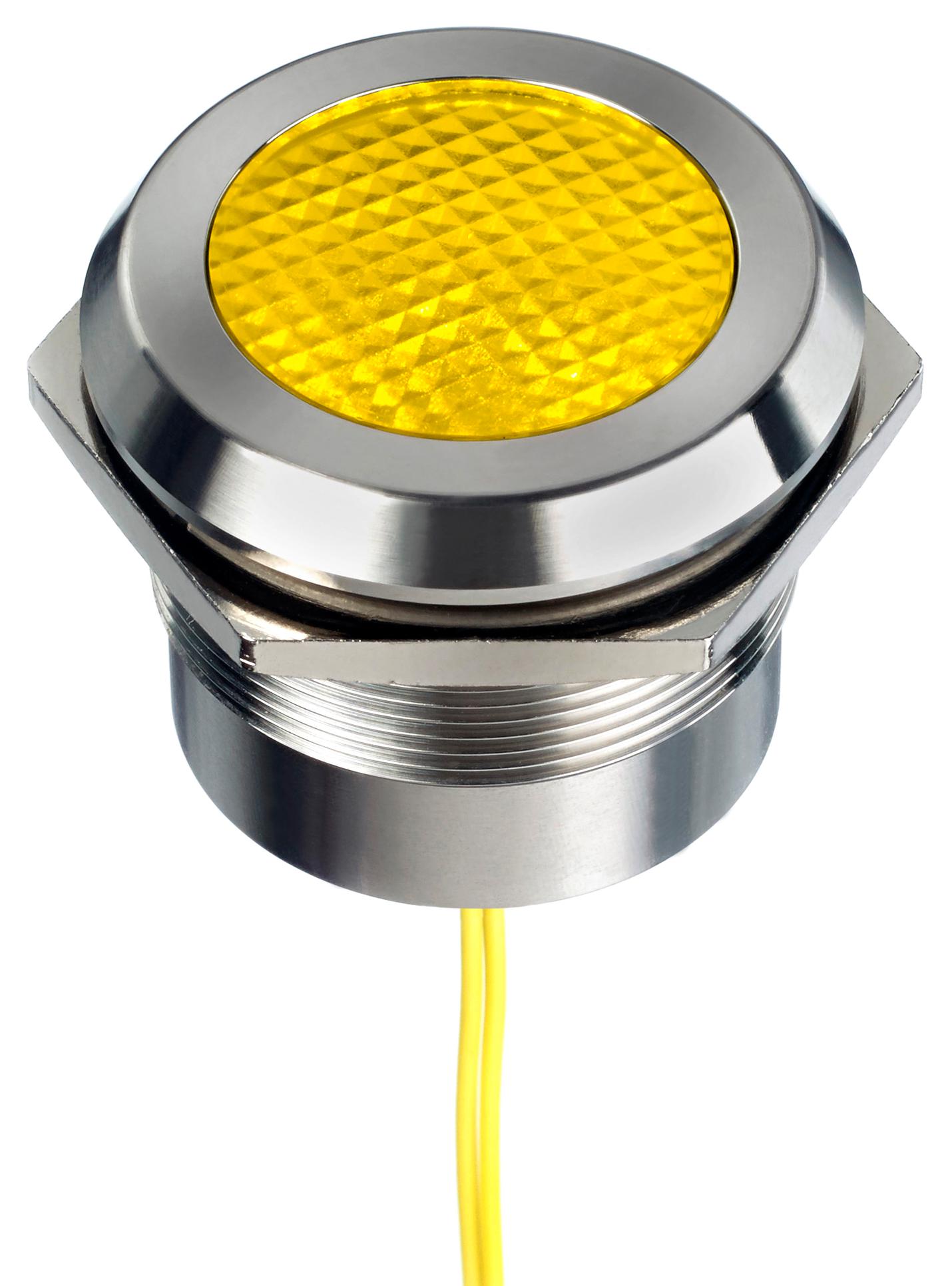

Apem Q30Y5SXXY1AE Panel Mount LED Indicator
The Q30 series is a line of durable, panel-mounted LED indicators designed for industrial applications. Featuring a 23.2mm Fresnel lens and stainless steel 316L body, these indicators operate at 12 to 24Vac/dc with low current consumption of 30mA. They offer high sealing IP67 & IP69K, ensuring performance in harsh environments. With a viewing angle of 60° and a lifespan of 100,000 hours, they are suitable for demanding control and automation systems. The indicators include a 200mm wire termination and over-voltage protection, making them reliable for long-term use.
Apem Q30Y5SXXY1AE Panel Mount LED Indicator Specifications:
- Operating voltage: 12 to 24Vac/dc
- Current consumption: 30mA (nominal)
- Reverse voltage protection: No polarity
- Over-voltage protection: activates at 36V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Sealing: IP67 & IP69K tested
- Maximum panel thickness: 9mm
- Material: Stainless steel 316L body, PC lens, Nitrile o-ring
- Wire length: 200 mm, 20 AWG UL1007
- Operating temperature range: -40°C to +85°C
- Storage temperature: -40°C to +100°C
- Mounting torque: 75cNm/0.75Nm
- Finish: Stainless steel
- LED colors: Red, Green, Yellow, White, Blue
- Typical intensity: 38-5200 med
- Forward Voltage: ~2V
- Material: Stainless steel, PC lens, Nitrile
Buy the Buy Stainless Steel Panel Mount LED Indicators Part Number Q30Y5SXXY1AE Online
Enhance your control system with the reliable stainless steel panel mount LED indicator from the Q30 series. Designed for harsh industrial environments, it features a 23.2mm Fresnel lens, sealing to IP67 & IP69K, and a lifespan of 100,000 hours. Operates between 12 and 24Vac/dc with low current draw of 30mA. The indicator includes a 200mm wire termination, over-voltage protection, and a wide temperature range from -40°C to +85°C. Perfect for automation and machinery applications, ensuring visibility and durability in demanding conditions.
Get Stainless Steel Panel Mount LED Indicators Q30Y5SXXY1AE today—built for harsh environments, long-lasting operation, and high visibility in control panels.
Frequently Asked Questions
Where can I buy Apem Q30Y5SXXY1AE?
You can click on the BUY or RFQ button to purchase Q30Y5SXXY1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q30Y5SXXY1AE?
You can download the Q30Y5SXXY1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q30Y5SXXY1AE?
Apem
