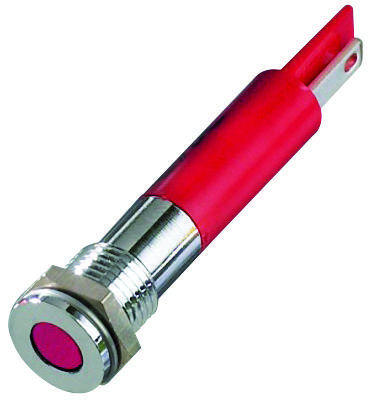

Apem Q6F1CXXR12E LED Indicator
This 6mm panel mount LED indicator features a flush bezel with a bright chrome finish, designed for IP67 sealing for water and dust resistance. It offers multiple LED color options including red, green, yellow, blue, white, and orange, with standard and super bright intensities. Operating at voltages from 2VDC to 28VDC, it includes solder lug, pin, or wire terminations, and is suitable for use in various industrial and electronic applications. The indicator provides a viewing angle up to 100°, with an average lifespan of 100,000 hours, supporting reliable performance in harsh environments.
Apem Q6F1CXXR12E LED Indicator Specifications:
- Size: 6mm diameter
- Bezel Finish: Bright chrome
- Sealing: IP67 rated for water and dust resistance
- Voltages: 2VDC to 28VDC, with operating current of 20mA
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- Viewing Angle: 30-100° depending on model
- Luminous Intensity: Standard and super bright options
- Forward Voltage: 2.0V to 3.3V depending on color
- Terminations: Solder lug, pins, or 200mm wire
- Temperature Range: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 30.8VDC
- Operating Temperature: -40°C to +85°C
- Material: Brass bezel, epoxy lens
- Mounting: Panel mounting with M6 x 0.5 thread
- Certifications: UL Recognized
Buy the Buy APEM LED Indicator Part Number Q6F1CXXR12E Online
Purchase the APEM LED Indicator online today to ensure reliable, waterproof illumination for industrial and electronic applications. Featuring a durable chrome bezel, multiple LED color options including red, green, yellow, and blue, and operating voltages from 2VDC to 28VDC, this indicator is perfect for harsh environments requiring long-lasting performance. It comes with flexible termination options such as solder lug, pins, or wire, and meets IP67 standards for sealing against dust and water, ensuring dependable operation in demanding conditions.
Get APEM Q6F1CXXR12E today—built for durability and high visibility in harsh environments.
Frequently Asked Questions
Where can I buy Apem Q6F1CXXR12E?
You can click on the BUY or RFQ button to purchase Q6F1CXXR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F1CXXR12E?
You can download the Q6F1CXXR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F1CXXR12E?
Apem
