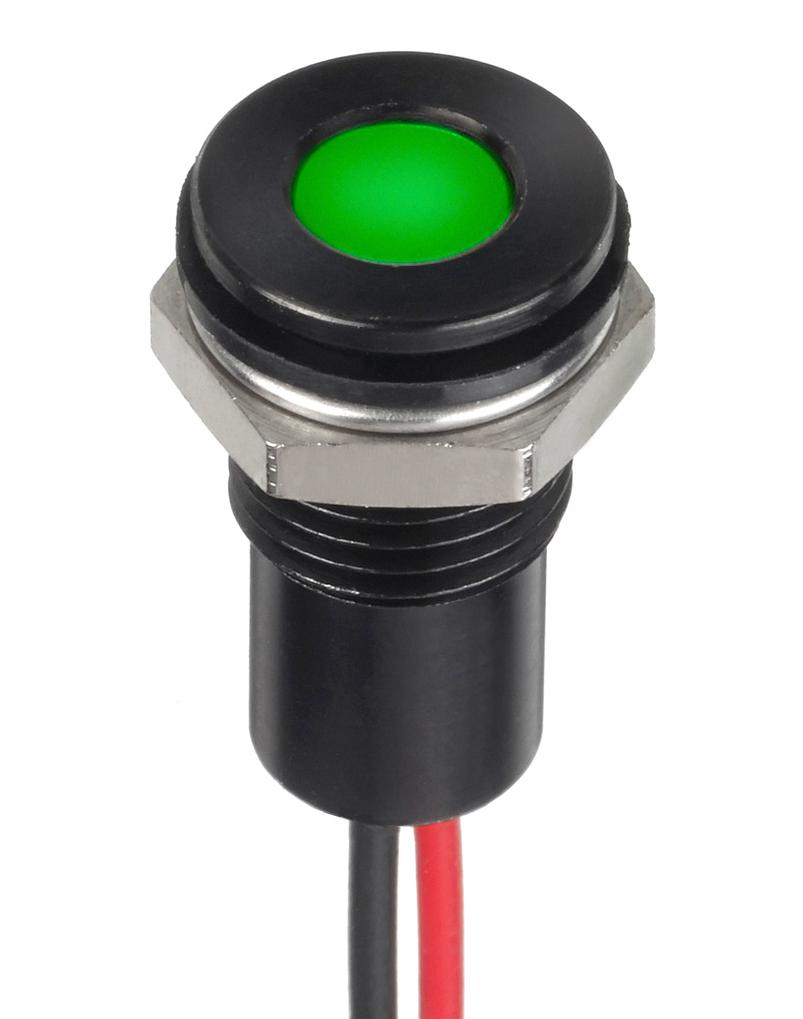

Apem Q6F5BYYRG24E LED Indicator Light
The Q6 series panel-mount LED indicators feature 6 mm diffused epoxy lenses in multiple colors, including red, green, yellow, blue, and white, with super bright and hyper bright options. They have a rugged construction with plated brass bezels finished in chrome, black, or satin grey, and molded polycarbonate bodies suitable for panel thickness up to 7 mm. These indicators offer high luminance, a long life expectancy of 100,000 hours, and operating temperatures from -30°C to +85°C depending on the body type. They include various mounting, terminal, and sealing options, and operate within specified voltage ranges with maximum reverse voltage of 5 V.
Apem Q6F5BYYRG24E LED Indicator Light Specifications:
- Material: Plated brass bezel finished in chrome, black or satin grey, molded polycarbonate body
- Lens Size: 3 mm diffused epoxy or water clear
- Mounting Hole: 6 mm, max panel thickness 7 mm
- Sealing: IP67 option available, otherwise unsealed
- Operating Temperature Range: -30°C to +85°C depending on body type
- Reverse Voltage: Max 5 V
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100° (model dependent)
- Torque: 4 cNm
- LED Types: Standard, Super Bright, Hyper Bright, Bi-color options available
- Voltage Range: 1.8 V to 33 VDC, with specific voltage and current ratings for different models
- Terminals: Solder lug, Faston, wire, or pin options
- Sealed and unsealed variants available for different environmental conditions
Buy the Generic 24C5BYYRG24E – Reliable LED Indicator for Industrial Applications
Purchase the Q6 series LED indicator lights online today and experience superior brightness, durability, and versatile mounting options ideal for industrial panels. These reliable indicators deliver long-lasting performance with a lifespan of 100,000 hours, multiple color options, and sealing variants up to IP67 for harsh conditions. Ensure optimal visibility in your control panels, machinery, or automation systems with these compact, high-performance LED indicators. Easy to install and compatible with various voltage ranges, they are the perfect choice for demanding industrial applications.
Buy Q6 series LED indicators now and enhance your panel visibility with high-quality, durable LED lights designed for industrial environments.
Frequently Asked Questions
Where can I buy Apem Q6F5BYYRG24E?
You can click on the BUY or RFQ button to purchase Q6F5BYYRG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5BYYRG24E?
You can download the Q6F5BYYRG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5BYYRG24E?
Apem
