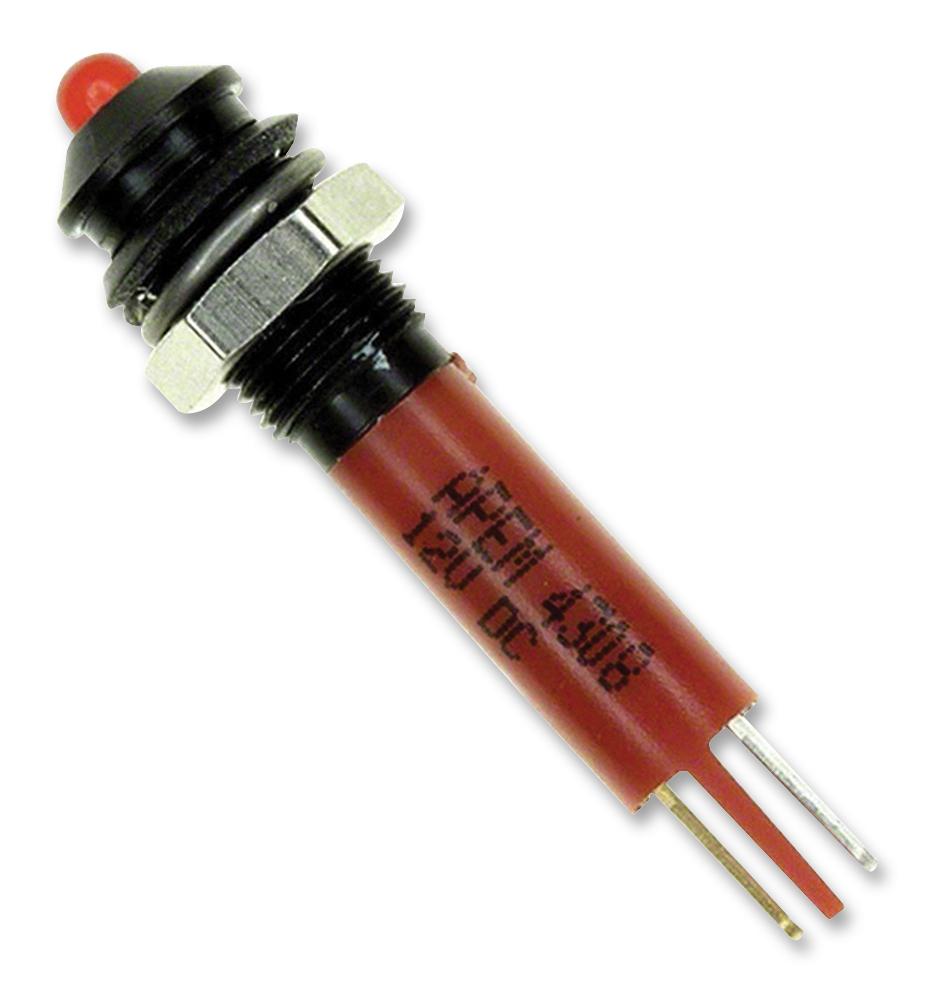

Apem Q6P1BXXR12E LED Indicator
The Q6 Series 6mm panel mount LED indicator features a durable black bezel with a prominent design, IP67 waterproof sealing, and a 12V direct current operating voltage. It is available in red, green, yellow, blue, white, orange, and bi-color options, making it suitable for various industrial and outdoor applications. Designed for easy panel installation with solder lug or wire terminations, these LEDs offer high luminous intensity, long life expectancy of 100,000 hours, and operating temperature from -40°C to +85°C. Ideal for status indication in harsh environments.
Apem Q6P1BXXR12E LED Indicator Specifications:
- Size: 6mm diameter
- Bezel: Black, prominent, IP67 sealing
- Voltage Range: 2VDC to 28VDC
- Operating Voltage: 12VDC
- Current: 20mA typical
- Luminous Intensity: Red 40mcd, Green 40mcd, Yellow 30mcd, Blue 1200mcd, White 1200mcd, Orange 60mcd, Bi-color Red/Green 20/15mcd
- Forward Voltage: Red 2.0V, Green 2.2V, Yellow 2.1V, Blue 3.3V, White 3.3V, Orange 2.0V
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Temperature Range: -40°C to +85°C
- Sealing: IP67
- Terminals: Solder lug, pins, or 200mm wire
- Mounting: Panel mounting with M6 x 0.5 thread
- Material: Diffused epoxy lens
- UL Recognized Component
Buy the Buy APEM LED Indicator Part Number Q6P1BXXR12E Online
Purchase the APEM LED indicator Q6P1BXXR12E online to upgrade your industrial equipment with a durable, waterproof, high-brightness 12V LED. Its IP67 sealing ensures protection against dust and water, making it ideal for outdoor and harsh environment applications. Easy to install with solder lug or wire terminations, it offers a long lifespan of 100,000 hours and excellent luminous intensity in multiple colors. Get this reliable and energy-efficient indicator today for enhanced status visibility and equipment safety.
Buy APEM LED indicator Q6P1BXXR12E now and experience unmatched reliability and performance in harsh environments with IP67 sealing and brightness.
