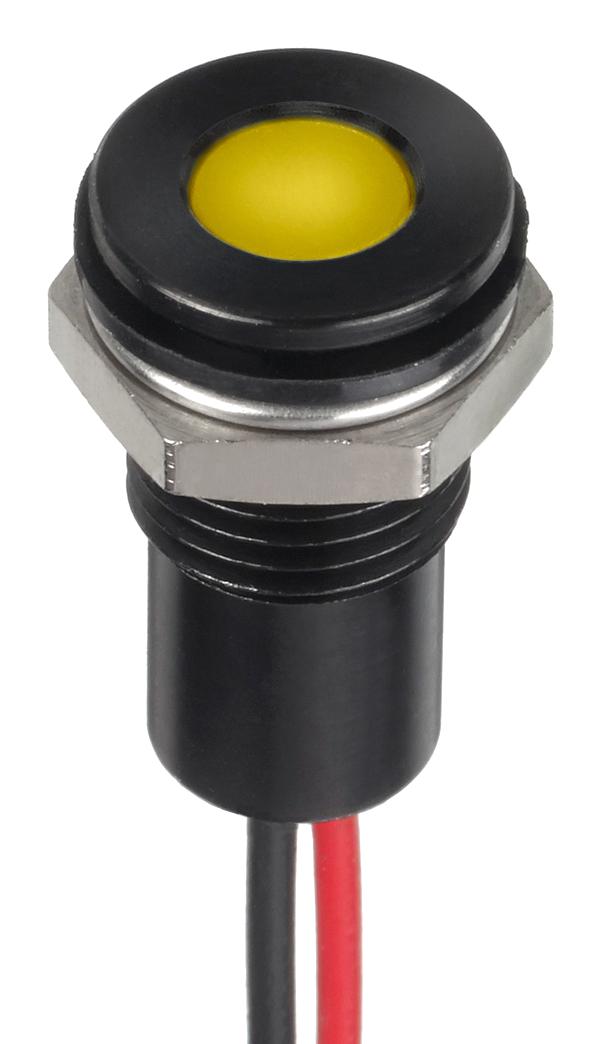

Apem Q8F5BXXHY24E LED Indicator
The Q8 series are 8 mm panel mount LED indicators featuring high brightness LEDs with various color options, including red, green, yellow, blue, white, and orange. These indicators offer distinctive recessed and flush bezel styles with optional IP67 sealing for environmental protection. They support multiple terminal options such as solder lug, fastons, pins, or wires, and are suitable for panel thicknesses up to 7 mm. Designed for durability, they have a life expectancy of 100,000 hours and operate across a wide temperature range, making them ideal for industrial and automation applications.
Apem Q8F5BXXHY24E LED Indicator Specifications:
- LED Colors Available: Red, Green, Yellow, Blue, White, Orange, Tricolor, Bi-color
- Lens Type: Diffused epoxy or water clear
- Color Intensity: Standard and hyper-bright options, up to 110,000 lux
- Operating Voltage: 1.8 to 33 VDC, 110/220 VAC, with resistor required for some types
- Forward Voltage: 1.8 to 33 VDC, with specific voltages per color
- Operating Current: Up to 20mA typical, depending on LED type and voltage
- Maximum Panel Thickness: 7 mm
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Environmental Sealing: Optional IP67
- Materials: Bright chrome, black, satin grey plated brass bezel, molded polycarbonate rear body, stainless steel in flush version
- Mounting Options: Short body, extended short body, flush bezel, recessed bezel, solder lug, fastons, pins, wires
- Temperature Range: -40°C to +85°C (rear epoxy), -30°C to +65°C (plastic body)
- Max Reverse Voltage: 5V
- Torque: 20 to 25 cNm
Buy the Buy Industrial LED Indicator Part Number Q8F5BXXHY24E Online
Order the Q8 series LED indicator online today and enjoy high luminance and reliable performance suitable for industrial environments. With diverse mounting options, robust materials, and sealing up to IP67, these indicators are perfect for durable error or status indication in automation, manufacturing, and control systems. Fast delivery and secure checkout make it easy to upgrade your panels with bright, long-lasting LEDs ensuring visibility and safety in critical applications. Invest in quality with quick online purchasing today.
Buy industrial LED indicator Part Number Q8F5BXXHY24E now and experience unmatched durability and high brightness for your control panels.
Frequently Asked Questions
Where can I buy Apem Q8F5BXXHY24E?
You can click on the BUY or RFQ button to purchase Q8F5BXXHY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BXXHY24E?
You can download the Q8F5BXXHY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BXXHY24E?
Apem
