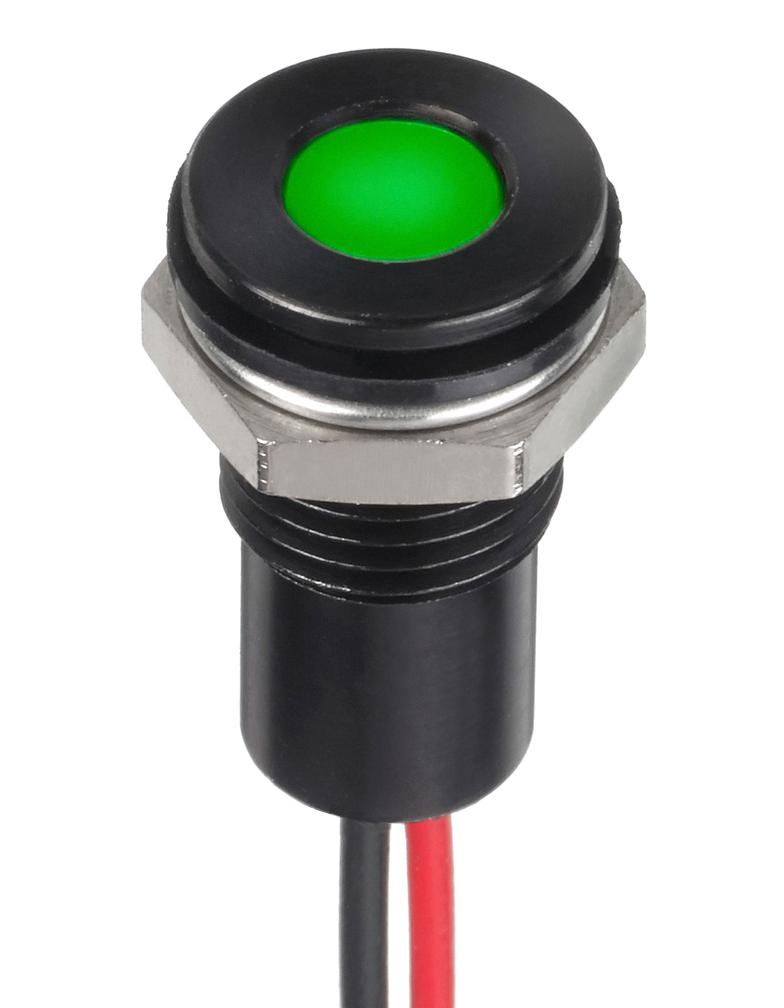

Apem Q8F5BZZRYG24E LED Indicator
The Q8 series panel mount LED indicators are designed for reliable indication with high brightness LEDs and various mounting options including prominent, recessed, and flush bezels. They feature easy wiring via solder lug, faston terminals, or pin connections, with sealing options up to IP67 for harsh environments. Suitable for panel thickness up to 7mm, these indicators operate at voltages ranging from 1.8V to 235V with a life expectancy of 100,000 hours and a max reverse voltage of 5V, ideal for industrial control and automation applications.
Apem Q8F5BZZRYG24E LED Indicator Specifications:
- Lens Diameter: 8 mm
- Sealing: IP67 option available
- Operating Voltage Range: 1.8V to 235V DC/AC
- Maximum Panel Thickness: 7 mm
- Lighting Colors: Red, Green, Yellow, Blue, White, Orange
- LED Types: Super Bright and Hyper Bright
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Mounting Options: Prominent, recessed, flush bezel
- Material: Polycarbonate rear body, plated brass or stainless steel bezel
- Terminals: Solder lug, faston, pins, or wires
- Temperature Range: -40°C to +85°C
Buy the Buy Brand Q8 Series LED Indicators Part Number Q8F5BZZRYG24E Online
Enhance your industrial control or automation projects by ordering the high-brightness LED indicator from the Q8 series today. Featuring multiple mounting options including prominent, recessed, and flush bezels, these indicators are built to withstand harsh environments with IP67 sealing. Available in various colors like red, green, yellow, and white, they operate across a wide voltage range up to 235V with a life expectancy of 100,000 hours. Easy wiring via solder lug, faston terminals, or wires makes installation straightforward and reliable.
Order your Brand Q8 Series LED indicator with high brightness and IP67 sealing today and enhance your industrial control projects with reliable, long-lasting illumination.
Frequently Asked Questions
Where can I buy Apem Q8F5BZZRYG24E?
You can click on the BUY or RFQ button to purchase Q8F5BZZRYG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BZZRYG24E?
You can download the Q8F5BZZRYG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BZZRYG24E?
Apem
