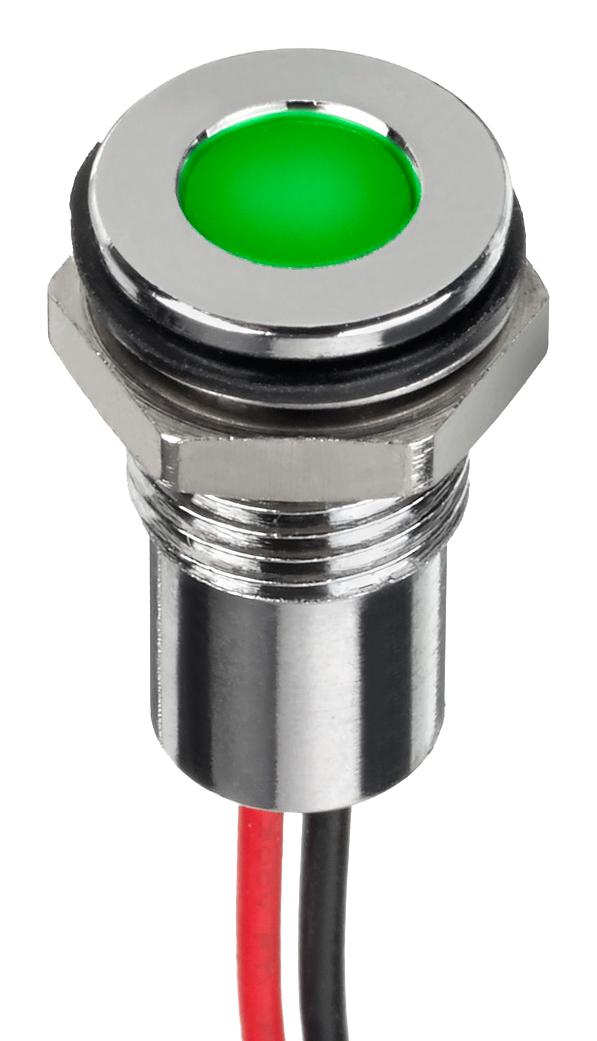

Apem Q8F5CZZRYG24E Panel Mount LED Indicators
The Q8 series panel mount LED indicators feature 8 mm size with various bezel styles, including prominent, recessed, and flush. They incorporate super bright LED options with high luminous intensity, offering enhanced visibility and reliability. These indicators support multiple termination types, such as solder lug, fastons, and wires, suitable for different mounting applications. They have an IP67 sealing option for environmental protection, and operating temperatures range from -40°C to +85°C depending on the body type. Designed for panel thickness up to 7 mm, they include a variety of colors like red, green, yellow, blue, white, and orange, suitable for industrial and signaling applications.
Apem Q8F5CZZRYG24E Panel Mount LED Indicators Specifications:
- Size: 8 mm
- Bezel styles: prominent, recessed, flush
- LED colors: red, green, yellow, blue, white, orange, multi-color options
- LED intensity: super bright and hyper bright options with high lumens
- Termination types: solder lug, fastons, wires, pins
- Sealing: IP67 sealing option available
- Operating temperature: -40°C to +85°C depending on body type
- Max panel thickness: 7 mm
- Viewing angle: 30-100° (model dependent)
- Life expectancy: 100,000 hours
- Max reverse voltage: 5 V
- Mounting: panel mount with various bezel and mounting styles
- Material: molded polycarbonate, plated brass bezel or stainless steel (flush version)
Buy the Innovative Series 8 mm Panel Mount LED Indicators: Q8 Series Q8F5CZZRYG24E
Secure your industrial signaling needs with the Q8 series panel mount LED indicators. Featuring super bright LEDs, multiple bezel styles, environmentally sealed options, and versatile terminations, they are ideal for demanding environments. Whether for status indicators or warning lights, these reliable, long-lasting LEDs offer high visibility, easy installation, and durability up to 100,000 hours. Enhance your equipment with these professional-grade indicators available for purchase online today and ensure superior operational clarity.
Buy Q8 series 8 mm panel mount LED indicators now and experience unmatched reliability and performance in industrial signaling and status indication.
Frequently Asked Questions
Where can I buy Apem Q8F5CZZRYG24E?
You can click on the BUY or RFQ button to purchase Q8F5CZZRYG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5CZZRYG24E?
You can download the Q8F5CZZRYG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5CZZRYG24E?
Apem
