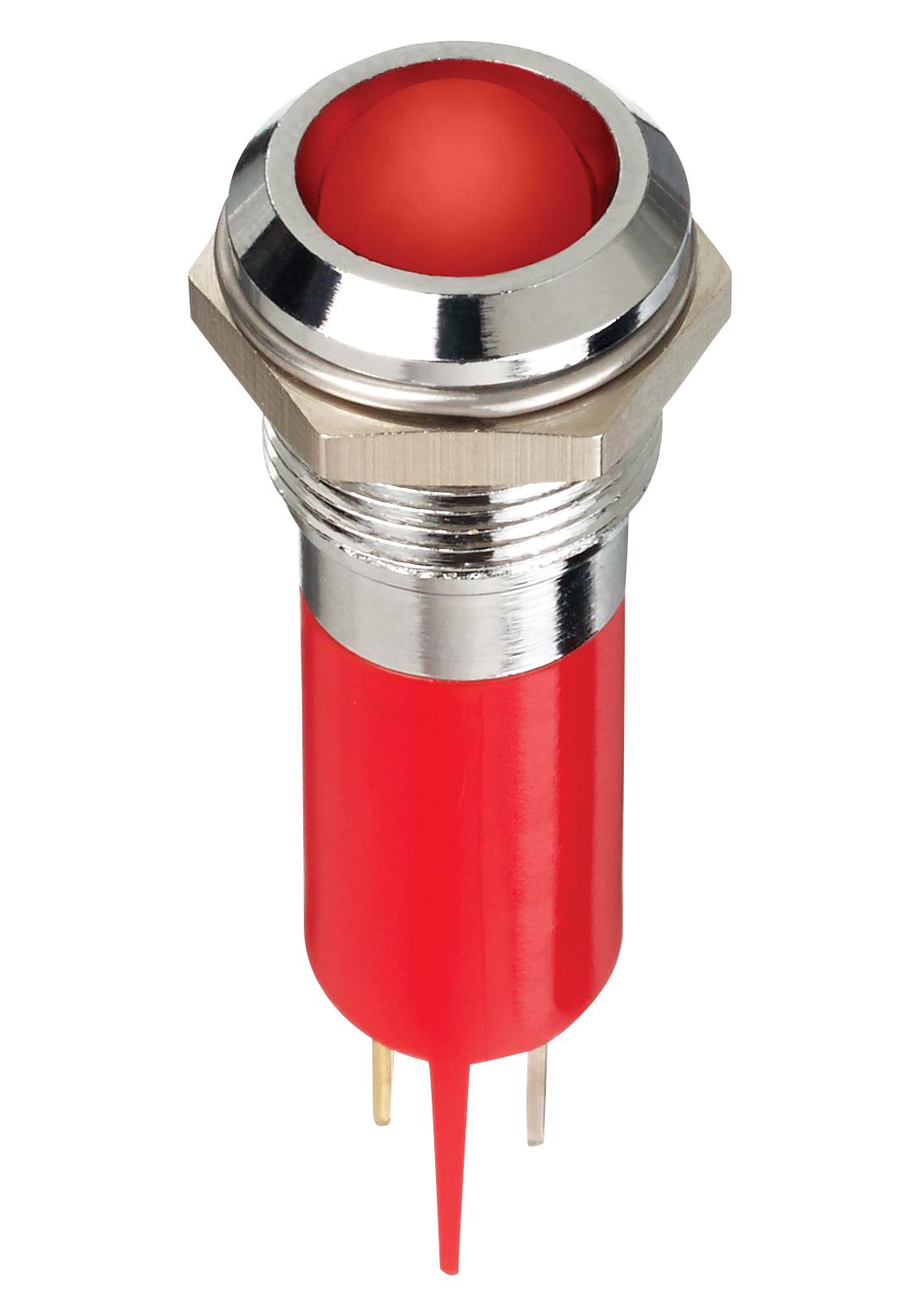

Apem Q12P1CXXR12 LED Indicator
The Q12 Series panel mount LED indicators feature a 12mm diameter, prominent bezel, and come with various LED color options including red, green, yellow, blue, orange, and white. They are available with different terminal types like solder lug, pins, or wire terminations, and have sealing options up to IP67 for environmental protection. These LEDs operate across a broad voltage range from 2VDC to 220VAC, with a typical lifespan of 100,000 hours, making them suitable for multiple industrial and electronic applications requiring bright, durable status indicators.
Apem Q12P1CXXR12 LED Indicator Specifications:
- Diameter: 12mm
- Bezel finish: Bright Chrome, Satin Grey, or Fixed Light
- Lens Type: Diffused epoxy or water clear
- Operating Voltage: 2VDC to 220VAC
- Current: 20mA maximum
- Lifespan: 100,000 hours
- Temperature Range: -40 to +85°C
- Sealing: IP67 option available
- Terminal Types: Solder lug, faston, pins, or wires
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Panel Thickness: Up to 7mm
- Operating Life: Approximate 100,000 hours
- Certifications: UL Recognized
- Max Voltage for Pins and Wires: 28V
- Connections: Gold Faston (Anode +), Silver terminal (Cathode -)
- Built for industrial signaling and status indication applications
Buy the APEM Series Q12 LED Indicator: Q12P1CXXR12
Enhance your industrial control panels with the durable and bright LED indicators from the APEM Q12 Series. Featuring 12mm diameter, a wide array of colors like red, green, yellow, and blue, and options for sealed IP67 protection, these indicators are designed to withstand harsh environments. They operate across a broad voltage range from 2VDC to 220VAC, ensuring versatile application. With a lifespan of 100,000 hours, ease of installation through versatile terminals, and robust construction, these LEDs are ideal for clear, reliable status indication in industrial systems. Buy online now for quick, trusted delivery!
Order your APEM Series Q12 LED indicator today and give your projects the dependable, bright signaling solution they deserve.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXR12?
You can click on the BUY or RFQ button to purchase Q12P1CXXR12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXR12?
You can download the Q12P1CXXR12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXR12?
Apem
