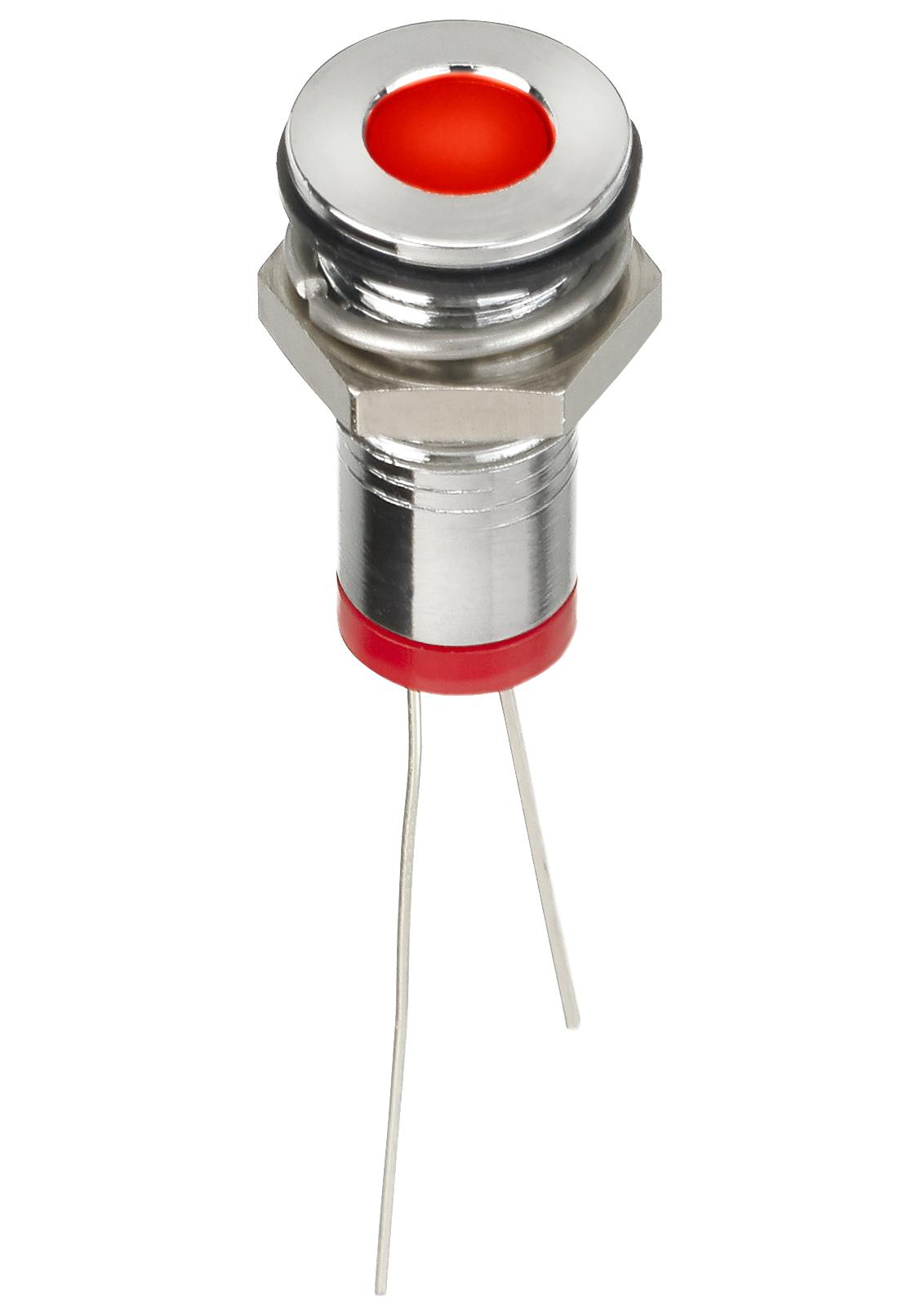

Apem Q8F6BXXR02E LED Indicator
The Q Series 8mm panel mount LED indicator features a durable design with a bright chrome finish bezel, available in black chrome or satin grey. It offers multiple illumination options, including super bright and hyperbright LEDs in various colors such as red, green, yellow, blue, white, orange, and bi-color configurations. Designed for versatile voltage operation from 2VDC to 220VAC, it provides IP67 sealing, ensuring protection against dust and water. Suitable for panel cutouts up to 7mm thickness, it delivers a long life expectancy of up to 100,000 hours, highly reliable for industrial and control applications.
Apem Q8F6BXXR02E LED Indicator Specifications:
- Diameter: 8mm (.315 inch)
- Bezel Finish: Bright chrome, black chrome, or satin grey
- LED Colors: Red, green, yellow, blue, white, orange, bi-color, tri-color options
- Voltage Range: 2VDC to 220VAC
- Luminous Intensity: 10,000mcd (Bright) variants, 350mcd (Standard)
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5V
- Operating Temperature: -40 to +85°C
- Life Expectancy: Up to 100,000 hours
- Ingress Protection: IP67
- Terminals: Solder lug/faston, pins, wires (200mm length)
- Panel Cutout: Max 7mm thickness
- Seal: IP67 sealing option available
- Max Thread Length: 0.75 inch
- Forward Voltage: Red 2.0V, Green 2.2V, Yellow 2.1V, Blue 3.3V, White 3.3V, Orange 2.2V
- Electrical Current: 20mA
- Mounting Style: Prominent, recessed, flush
- Additional Features: Suitable for AC/DC operation, bi-color and tri-color options
Buy the APEM Series Q8 LED: Part Number Q8F6BXXR02E
Purchase the APEM Series Q8 LED indicator online today to enhance your control system with a high-quality, durable, and bright LED solutions. This 8mm panel mount indicator comes with IP67 sealing, multiple color options, and operates across a broad voltage range from 2VDC to 220VAC. Its long life expectancy of 100,000 hours guarantees dependable operation in demanding environments. Easy to install with various terminal options, it’s ideal for industrial, automation, and control applications. Experience reliable illumination with quick online ordering today.
Order your APEM Series Q8 LED indicator today and ensure reliable, high-visibility lighting for your industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q8F6BXXR02E?
You can click on the BUY or RFQ button to purchase Q8F6BXXR02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F6BXXR02E?
You can download the Q8F6BXXR02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F6BXXR02E?
Apem
