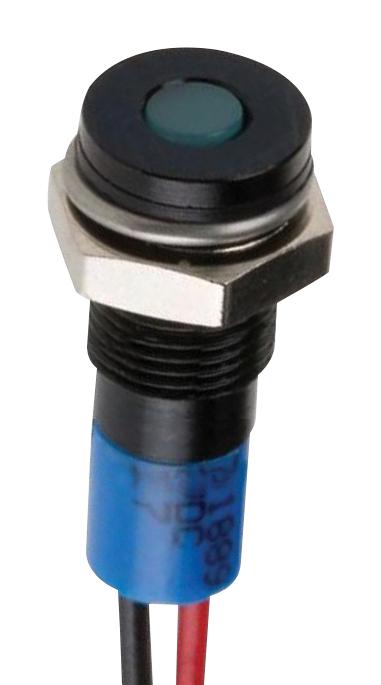

Apem Q8F7BXXB02E LED Indicator
The Q8 series panel mount LED indicators feature 8 mm diameter, offering high brightness and pin configurations suitable for industrial control panels. These indicators come with options including prominent, recessed, and flush bezel styles, with diffused or water-clear lenses in multiple colors like red, green, yellow, blue, and white. They support various termination types such as solder lug, faston, pins, or wire leads, and are rated for IP67 sealing for harsh environments. The indicators operate within -30°C to +85°C, ensuring durability in diverse conditions, with a life expectancy of 100,000 hours and maximum panel thickness of 7 mm.
Apem Q8F7BXXB02E LED Indicator Specifications:
- Diameter: 8 mm
- Lens Types: Diffused, Water clear
- Colors: Red, Green, Yellow, Blue, White, Orange
- Bezel Material: Plated brass with bright chrome, black, satin grey finishes, or stainless steel 316L for flush version
- Sealing: IP67 option available
- Operating Temperature: -30°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Maximum Panel Thickness: 7 mm
- LED Current: 20 mA max
- Voltage Range: 1.8 V to 33 VDC, 110 VAC, 220 VAC
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Terminations: Solder lug, faston, pins, wires (200 mm long)
- Mounting Hole: 8 mm
- Ingress Protection: IP67 sealing option
Buy the Brand Name Q8 Series – Reliable LED Indicators for Industrial Applications
Enhance your control panel with the durable and high-brightness LED indicators from the Q8 series. These 8 mm diameter indicators feature multiple mounting styles, colors, and termination options, all designed for tough industrial environments. With IP67 sealing, they resist dust and water ingress, ensuring long-lasting performance. Easy to install, these indicators operate within a broad voltage range and provide up to 100,000 hours of reliable service. Order now online for quick delivery and get premium visibility for your equipment needs.
Buy Q8 series LED indicators now and experience unmatched reliability and performance for your industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q8F7BXXB02E?
You can click on the BUY or RFQ button to purchase Q8F7BXXB02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F7BXXB02E?
You can download the Q8F7BXXB02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F7BXXB02E?
Apem
