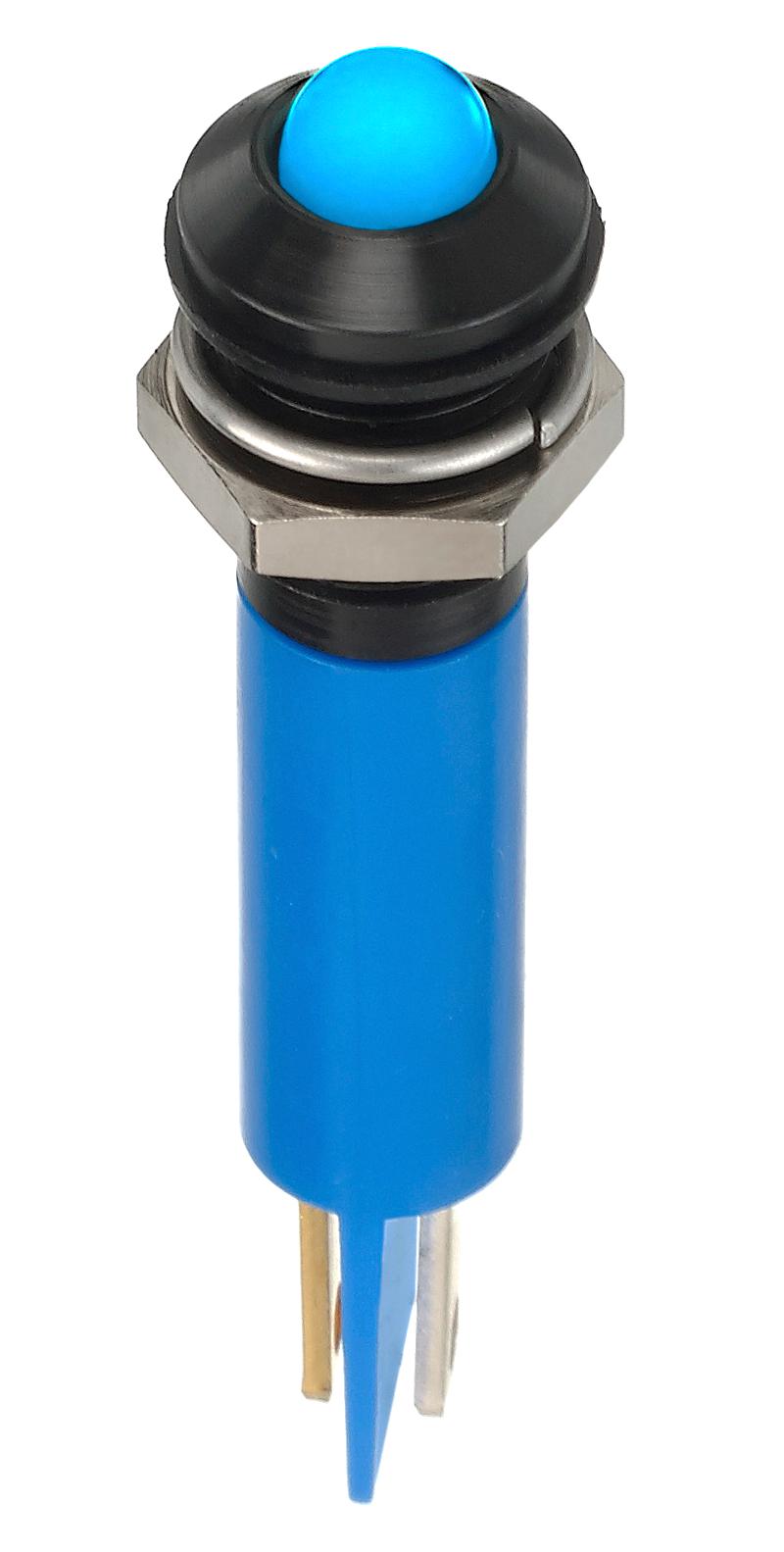

Apem Q8P1BXXB02E Panel Mount LED Indicator
The Q8 series 8 mm panel mount LED indicators are designed with high-brightness LEDs and feature water-clear or diffused epoxy lenses, prominent or recessed bezels, and multiple terminal options including solder lug, fastons, pins, or wire terminations. They are suitable for various industrial applications, offering IP67 sealing for enhanced environmental protection and a lifespan of up to 100,000 hours. Models include standard, hyper-bright, and super-bright LED intensities, with voltage and color options reaching from 1.8 VDC to 110 VAC, and suitable for panel thickness up to 7 mm. Constructed with durable materials like chromed brass or stainless steel and molded polycarbonate, these indicators ensure reliable operation in harsh conditions.
Apem Q8P1BXXB02E Panel Mount LED Indicator Specifications:
- Lens Options: 5 mm diffused epoxy or water-clear
- Bezel Material: Plated brass finished in chrome, black, satin grey, or stainless steel 316L in flush version
- Operating Temperature Range: -30°C to +85°C depending on body type
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Panel Thickness: Max 7 mm
- LED Types: Standard, Hyper-Bright, Super-Bright
- Voltage Range: 1.8 VDC to 110 VAC, with resistor options for certain models
- Sealing: IP67 (optional)
- Constructed with molded polycarbonate rear body, stainless steel or chrome bezel
- Mounting Hole Diameter: 8 mm
- Torque: 20-25 cNm
Buy the Buy Q8 series Panel Mount LED Indicators Part Number Q8P1BXXB02E Online
Discover the high-performance Q8 series panel mount LED indicators designed for industrial environments. Featuring water-clear or diffused lenses, IP67 sealing, long lifespan of 100,000 hours, and multiple terminal options including solder lug, fastons, and wires, they ensure reliable and bright illumination. Suitable for panel thickness up to 7 mm, with high and super-bright LED intensities, they are perfect for industrial, control, and automation applications. Purchase online today for fast delivery and trusted quality.
Get Q8 series LED indicator today—built for high brightness, durability, and versatile mounting options for industrial applications.
Frequently Asked Questions
Where can I buy Apem Q8P1BXXB02E?
You can click on the BUY or RFQ button to purchase Q8P1BXXB02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P1BXXB02E?
You can download the Q8P1BXXB02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P1BXXB02E?
Apem
