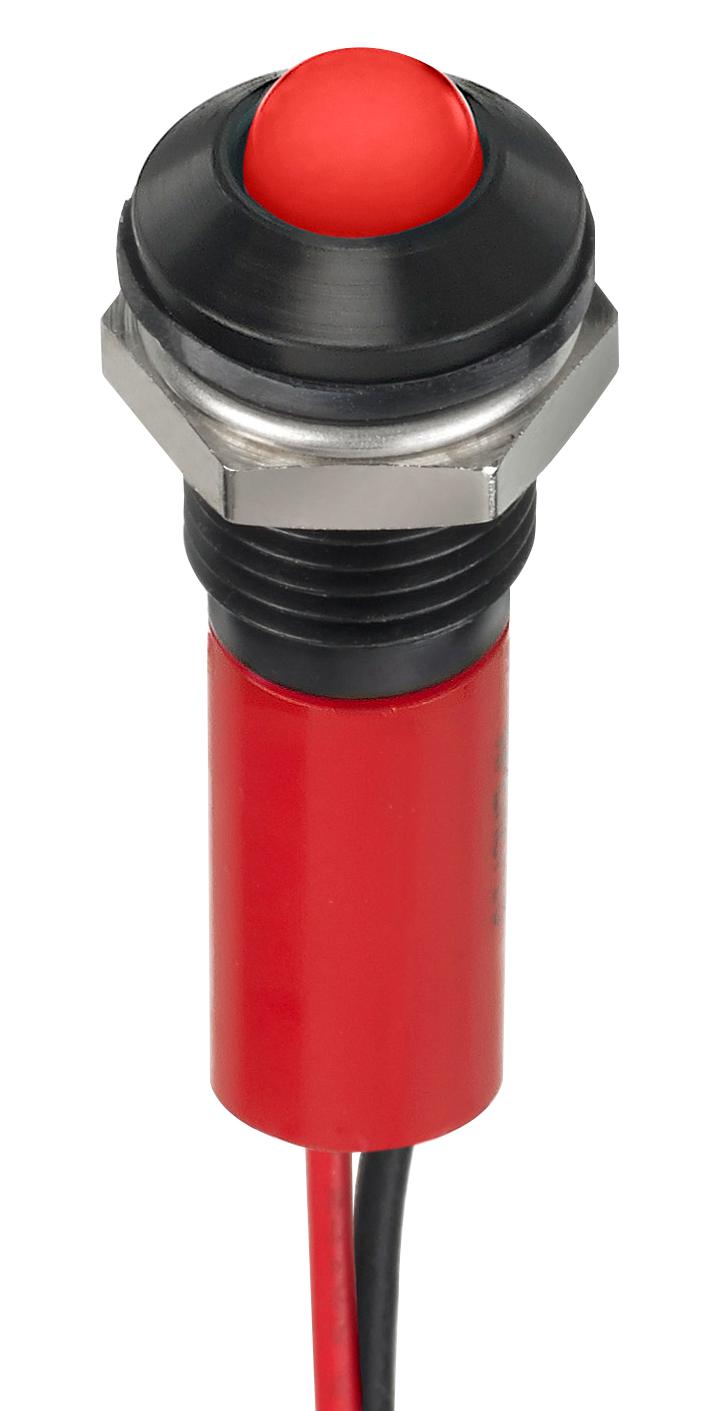

Apem Q8P3BXXR12E LED Indicator
The Q8 series panel mount LED indicators feature 8 mm diameter, 5 mm diffused epoxy lens or water-clear LEDs with super bright illumination, recessed and flush bezel styles, and various termination options including solder lug, faston, pins, or long wires. Designed for durability, they are sealed to IP67, operate within -40 °C to +85 °C, and have a maximum panel thickness of 7 mm. Available in multiple colors such as red, green, yellow, blue, orange, white, and tricolor versions, with a life expectancy of 100,000 hours. Suitable for industrial applications requiring high visibility and reliability.
Apem Q8P3BXXR12E LED Indicator Specifications:
- Lens: 5 mm diffused epoxy or water-clear
- LED Colors: Red, Green, Yellow, Blue, Orange, White, Tricolor
- Operating Voltage: 1.8 to 33 VDC, 20 mA max; 110 VAC/220 VAC options with lower current
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Temperature Range: -40°C to +85°C for epoxy body, -30°C to +65°C for plastic body
- Sealing: IP67 option available
- Panel Thickness: Maximum 7 mm
- Material: Bright chrome, black, satin grey plated brass bezel, or stainless steel 316L flush version
- Terminals: Solder lug, faston, pins, or long wires, with standard wire length 200 mm
- Operating & Storage Temperature: -40°C to +85°C
- Torque: 20-25 cNm
- Dimensions: 8 mm diameter, various lengths for mounting options
Buy the APEM Series 8 mm LED Indicator: Q8P3BXXR12E
Purchase the APEM Series 8 mm LED indicator online today and experience high visibility with super bright LEDs, IP67 sealing for harsh environments, and versatile mounting options. Perfect for industrial control panels, machinery, and equipment, this durable indicator delivers reliable performance with a lifespan of 100,000 hours. Choose from a wide range of colors including red, green, yellow, blue, orange, and white, as well as tricolor variants. Easy to install with solder lug, faston, pins, or long wire terminations. Order now for fast delivery and keep your equipment clearly visible and operational 24/7.
Order your APEM Series 8 mm LED indicator today and enhance your control panels with reliable, ultra-bright illumination for industrial applications.
