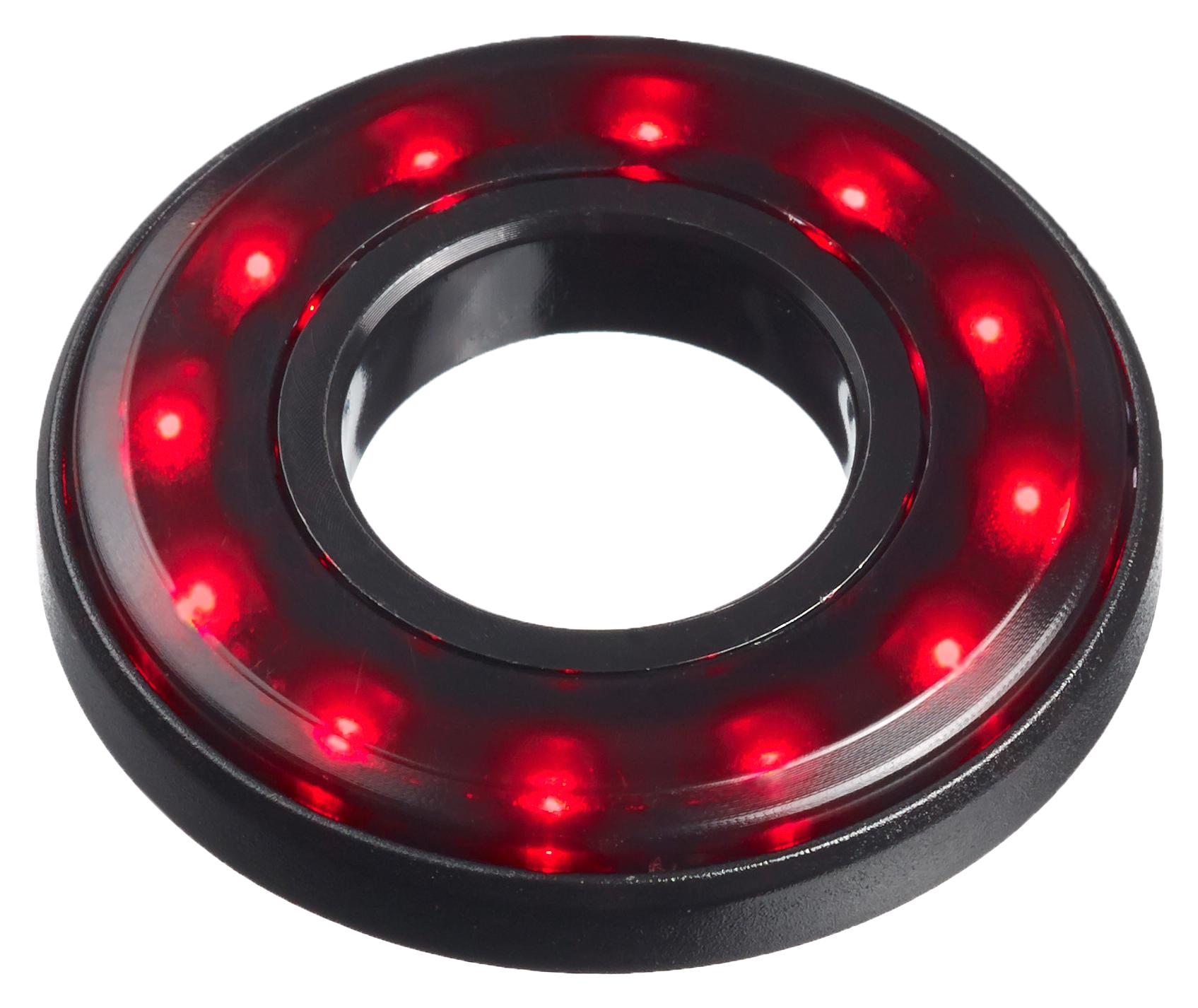

Apem QH16028RC Halo LED Indicator
The QH series Halo LED illumination features single, dual, and RGB color options with panel sealing up to IP67, designed for integration in control panels. It has a durable PC body and lens, with a life expectancy of 50,000 hours. Operating within -30°C to +70°C, it supports voltage from 12VDC to 24VDC, drawing 42 mA to 20 mA, and offers high luminous intensity with various LED color configurations. It includes UL1061 wire terminations and is suitable for applications requiring reliable visual indicators in industrial environments.
Apem QH16028RC Halo LED Indicator Specifications:
- Body Material: PC
- Lens Material: PC
- Panel Seal: IP67 to EN60529 : 1992
- Operating Voltage: 12 VDC to 24 VDC
- Operating Current: 42 mA to 20 mA
- Life Expectancy: 50,000 Hours
- Temperature Range: -30°C to +70°C
- LED Types: Single, dual (alternating), RGB
- LED Count: 12 LEDs
- Wire Terminations: 200 mm, 26 AWG UL1061
- Max Reverse Voltage: 5 VDC
- Dimensions: 16mm, 19mm, 22mm, and oversized 22mm (QH22L)
- Sealing: Up to IP67
- EMC Immunity: EN61000-4-3, EN61000-4-2
- EMC Emissions: EN61000-6-4
- Environmental: Suitable for industrial environments, resistant to electrostatic discharge
Buy the Buy APEM QH Series Halo LED Part Number QH16028RC Online
Purchase the APEM QH Series Halo LED Indicator online today to improve your control panel visibility and safety. These IP67-sealed indicators are available in multiple colors, supporting 12 to 24 VDC operation with a lifespan of 50,000 hours. Easy to install with standard 200 mm UL1061 wire terminations, they are suitable for industrial environments requiring durable and reliable visual signals. Choose the correct size and color for your application and enjoy convenient online ordering with fast delivery and customer support.
Order your APEM QH Series QH16028RC today and enhance your control panels with reliable, long-lasting LED indicator lighting.
Frequently Asked Questions
Where can I buy Apem QH16028RC?
You can click on the BUY or RFQ button to purchase QH16028RC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH16028RC?
You can download the QH16028RC datasheet or visit the Apem website for support.
Who is the manufacturer of QH16028RC?
Apem
