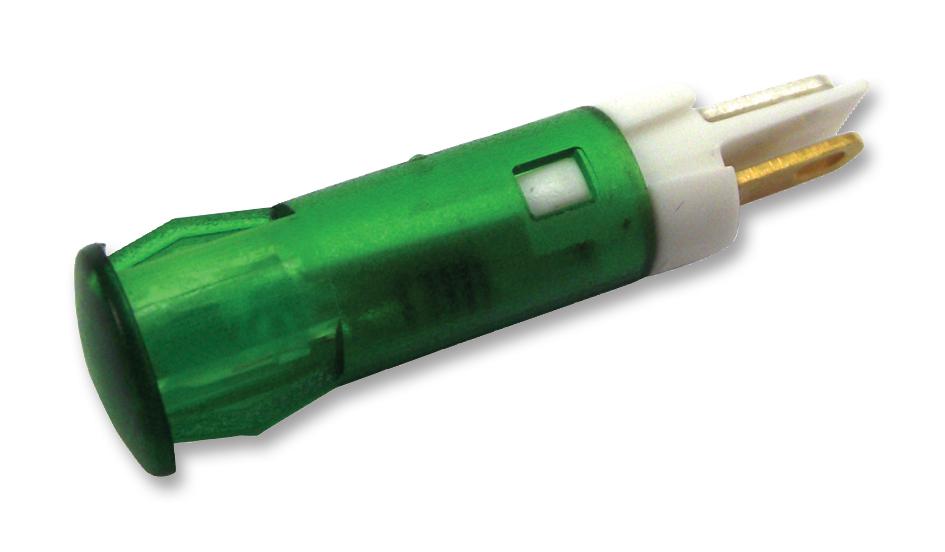

Apem QS61XXG24 LED Indicator
The QS Series Snap-in Panel Mount LED Indicators are designed for easy front panel mounting with no additional hardware. They feature a variety of sizes from 6mm to 12mm and come with diffused flat lenses in multiple colors including Red, Green, Yellow, Blue, Orange, and White. These LEDs operate on voltages from 2VDC to 220VAC, with options for standard and high brightness versions suitable for daylight viewing. The indicators have solder lug or faston terminations, robust polycarbonate lenses and bodies, with a typical life expectancy of 100,000 hours, operating within -30°C to +85°C. Suitable for panel thicknesses from 0.8mm to 1.6mm.
Apem QS61XXG24 LED Indicator Specifications:
- Size options: 6mm, 8mm, 10mm, 12mm
- Lens Material: Polycarbonate (UL94V-0)
- Body Material: Polycarbonate (UL94V-0)
- Terminals: Solder lug/faston, 6mm (2.0 x 0.5mm), 8mm, 10mm, 12mm (2.8 x 0.8mm), wires (200mm length)
- Wires: 6mm and 8mm use 24AWG, 10mm and 12mm use 22AWG
- Color options: Red, Green, Yellow, Blue, Orange, White (clear)
- Voltage range: 2VDC - 220VAC
- Forward current: 20mA (standard), varies for high brightness versions
- Viewing angle: 30° (standard), 45° (high brightness)
- Maximum reverse voltage: 5V
- Life expectancy: 100,000 hours
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +100°C
- Panel thickness: 0.8mm to 1.6mm
Buy the Buy APEM QS Series LED Indicator Part Number QS61XXG24 Online
Purchase the APEM QS Series LED indicator online today for quick, secure delivery. These durable indicators are suitable for various panel sizes and voltages, providing bright, reliable visibility in industrial environments. Easy to install with snap-in mounting, they include multiple color options and sizes, backed by a lifespan of 100,000 hours. Whether for status signals or illumination, these LEDs are perfect for automation, control panels, and instrumentation, ensuring consistent performance and seamless integration into your systems.
Buy APEM QS Series LED Indicator Part Number QS61XXG24 now and experience reliable, durable illumination for your industrial panels.
Frequently Asked Questions
Where can I buy Apem QS61XXG24?
You can click on the BUY or RFQ button to purchase QS61XXG24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS61XXG24?
You can download the QS61XXG24 datasheet or visit the Apem website for support.
Who is the manufacturer of QS61XXG24?
Apem
