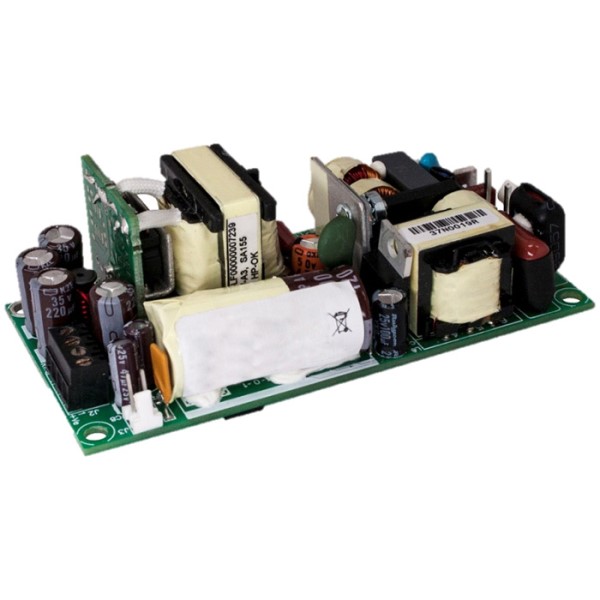

BEL POWER SOLUTIONS ABC1501T12G 150W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC150 series of open-frame power supplies delivers 150W of output power with a wide universal input range, ensuring compatibility across diverse applications. Its high efficiency and power density minimize power loss, enhancing reliability and simplifying thermal management. Ideal for telecom, datacom, industrial equipment, and other applications requiring a compact and efficient power solution, the ABC150 series meets regulatory approvals for environmentally-friendly designs. It is available with various output voltages and connector options, including JST headers and screw terminals, and offers Class I and Class II earthing options.
BEL POWER SOLUTIONS ABC1501T12G 150W Open Frame Power Supply Specifications:
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 1.70 A max.
- Input Current (230 VAC): 0.85 A max.
- No Load Power: 1.2 W
- Inrush Current (120 VAC): 35 A max.
- Inrush Current (230 VAC): 65 A max.
- Leakage Current (120 VAC): < 150 µA
- Leakage Current (230 VAC): < 300 µA
- Output Voltage: 5 V to 48 V
- Output Power: 150 W
- Fan Output Voltage: 12 V
- Efficiency (120 VAC): 84% typical
- Efficiency (230 VAC): 86% typical
- Hold Up Time (120 VAC): 6 ms
- Hold Up Time (230 VAC): 10 ms
- Power Factor (120 VAC): 0.99
- Power Factor (230 VAC): 0.95
- Line Regulation: ± 0.5%
- Load Regulation: ± 2.0%
- Transient Response: < 10%
- Ripple: 1.0 % max
- Rise Time: < 100 ms
- Set Point Accuracy: ± 1%
- Output Voltage Adjustment: ± 3 %
- Over Current Protection: 110% typical above rating
- Over Voltage Protection: 110 to 150%
- Short Circuit Protection: Automatic recovery
- Isolation Voltage: Min. 4000 VDC
- Safety Standards: EN / IEC / UL 62368-1 (Ed.3)
- Agency Approvals: Nemko, UL, C-UL, IEC
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 70°C
- Altitude (Operating): 10,000 ft.
- Altitude (Non-Operating): 40,000 ft.
- Reliability: 2.4 million hours
