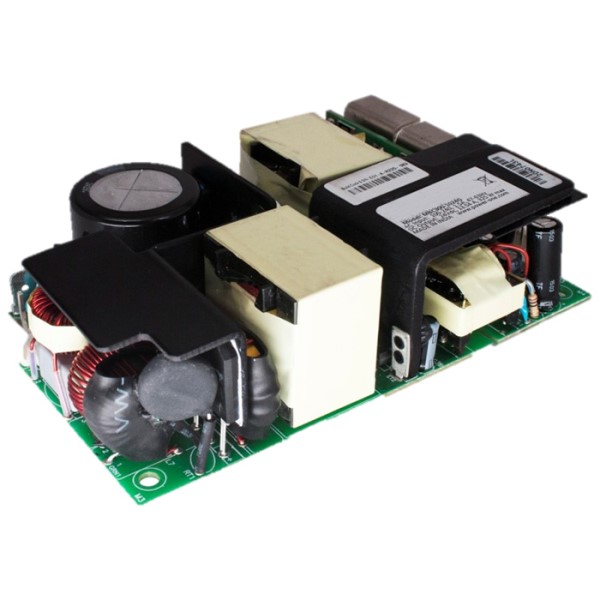

BEL POWER SOLUTIONS ABC3001T24G 300W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC300 series of open-frame power supplies delivers 300W of output power with a wide universal 90-264 VAC input range. Designed for high efficiency and power density, this series minimizes power loss in end-use equipment, contributing to higher reliability and easier thermal management. Ideal for applications in telecom, datacom, industrial equipment, instrumentation, lighting, and robotics, the ABC300 series offers features like convection cooling, IEC protection class options, and Inhibit & Power Good signals. It is IEC/EN/UL 62368-1 compliant and RoHS compliant.
BEL POWER SOLUTIONS ABC3001T24G 300W Open Frame Power Supply Specifications:
- Form Factor: 5 x 3 x 1.5 inch
- Convection Cooled Power: 200 W
- Minimum Load: 0.0 A
- 5 V Standby Output: Yes
- 12 V Fan Output: Yes
- Inhibit & Power Good Signals: Yes
- Output Voltage: 24 VDC
- Max Convection: 28.0 A
- Load 300 LFM: 13.54 A
- Ripple & Noise: 2%
- Power: 325 W
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 to 63 Hz
- Input Current (120 VAC): 3.2 A max
- Input Current (230 VAC): 1.65 A max
- No Load Power: 0.8 W
- Inrush Current (120 VAC): 35 A max
- Inrush Current (230 VAC): 65 A max
- Leakage Current (120 VAC): < 150μA
- Leakage Current (230 VAC): < 300μA
- Switching Frequency: 80 kHz typical
- Efficiency: 88% typical (120 VAC), 92% typical (230 VAC)
- Hold Up Time: 10 ms
- Power Factor: 0.98 (120 VAC), 0.95 (230 VAC)
- Line Regulation: ± 0.5 %
- Load Regulation: ± 2 %
- Transient Response: < 10 %, recovery time < 5 ms
- Rise Time: < 100 ms
- Set Point Tolerance: ± 1 %
- Voltage Output Adjustment: ± 3 %
- Over Voltage Protection: Automatic recovery (110 to 150 %)
- Over Current Protection: Automatic recovery (110 to 150 %)
- Short Circuit Protection: Short term, automatic recovery
- Over Temperature Protection: Automatic Recovery (110° C)
- Cooling: Convection (140 W max), 200 W max with 300 LFM
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 85°C
- Altitude: 10,000 ft (Operating), 40,000 ft (Non-Operating)
- Reliability: 1.77 million hours
Buy the ABC300-1T24G BEL POWER SOLUTIONS 300W Open Frame Power Supply | myMectronic
Purchase the BEL POWER SOLUTIONS ABC300-1T24G securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS ABC3001T24G?
You can click on the BUY or RFQ button to purchase ABC3001T24G from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ABC3001T24G?
You can download the ABC3001T24G datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of ABC3001T24G?
BEL POWER SOLUTIONS
