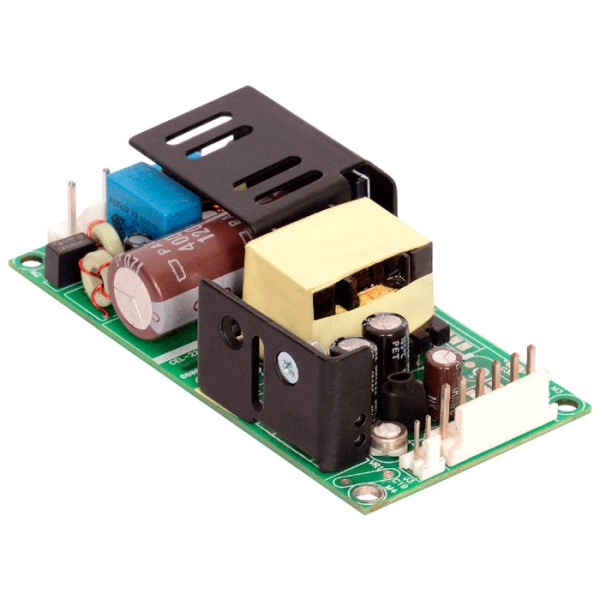

BEL POWER SOLUTIONS MBC401012G 40W Medical Power Supply
The BEL POWER SOLUTIONS MBC40 series provides a reliable and efficient power solution for medical equipment. This open-frame power supply delivers 40W of output power with a wide universal input voltage range (90-264 VAC). Designed and approved to meet stringent medical standards (EN/IEC 60601-1), the MBC40 series offers 2 x MOPP isolation for enhanced safety in Class I & Class II applications. Suitable for dialysis, monitoring, home health equipment, surgical devices, and ultrasound systems, the MBC40-1012G ensures stable and safe power delivery for critical medical applications.
BEL POWER SOLUTIONS MBC401012G 40W Medical Power Supply Specifications:
- Input Voltage: 90 - 264 VAC
- Input Frequency: 47 to 400 Hz
- Input Current: 0.85 A max. @ 120 VAC, 0.45 A max. @ 230 VAC
- No Load Power: < 0.3 W (Single output), < 0.5 W (Multi output)
- Inrush Current: 30 A max. @ 120 VAC, 60 A max. @ 230 VAC
- Leakage Current: < 140 µA @ 120 VAC, < 250 µA @ 230 VAC
- Switching Frequency: Typical 67 kHz
- Efficiency: Typical 85%
- Hold Up Time: >10 ms
- Output Power: Derate output power linearly to 80% from 90 VAC to 80 VAC input. 40 W
- Line Regulation: ± 0.3%
- Load Regulation: ± 5%
- Transient Response: < 5 ms
- Set Point Tolerance: ± 10% (V1), ± 5% (V2 & V3)
- Output Voltage Adjustment: ± 10% (V1)
- Over Current Protection: Typical above rating, 130%
- Over Voltage Protection: Typical for V1 only, 130%
- Short Circuit Protection: Short term, autorecovery
- Cooling: Convection
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to +70°C
- Relative Humidity: Non Condensing, 95%
- Altitude: Operating: 10,000 ft, Non-Operating: 40,000 ft
- Reliability: 1.87 million hours (MTBF)
- Dimensions: 101.6 x 50.8 x 30.48 mm (4 x 2 x 1.2 inch)
- Weight: 150 g (0.33 lbs.)
- Isolation Voltage: 4000 VAC (Input to Output, 2MOPP), 1500 VAC (Input to Ground, 1MOPP), 500 VAC (Output to Ground, 1MOPP)
