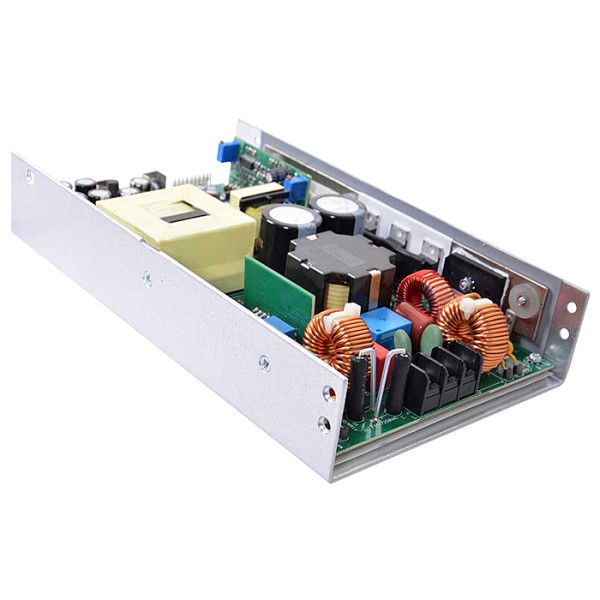

BEL POWER SOLUTIONS ABC8001T48 800W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC800 series of open frame power supplies delivers up to 800W of output power with forced air cooling in a compact footprint. These power supplies boast a wide universal AC input range (85-264 VAC) and high efficiency, minimizing power loss and facilitating thermal management. They are well-suited for applications in medical devices, telecommunications equipment, datacom infrastructure, industrial automation, and renewable energy systems. Features include current sharing, peak power capability, and various output options, making them a versatile choice for demanding power requirements.
BEL POWER SOLUTIONS ABC8001T48 800W Open Frame Power Supply Specifications:
- Input Voltage: 85 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 8.00 A max.
- Input Current (240 VAC): 3.64 A max.
- Input Protection: F16 A / 250 V
- No Load Power: 3 W typ.
- Inrush Current (240 VAC): 25 A max.
- Leakage Current (240 VAC / 50 Hz): < 100 µA
- Power Factor (120 VAC): 0.98
- Power Factor (240 VAC): 0.95
- Output Voltage: 12 V to 58 V
- Standby Output Voltage: 5 V
- Output Power (Convection): up to 750 W
- Peak Power (for 1 ms): 960 W
- Efficiency (120 VAC): 88% Typical
- Efficiency (240 VAC): 93%
- Hold-up Time (120 VAC / 240 VAC): 8 ms
- Line Regulation: ± 0.5%
- Load Regulation: ± 1.0%
- Transient Response: < 5 ms
- Voltage Adjustment: ± 3%
- Set Point Tolerance: ± 1%
- Rise Time: <100 ms
- Over Current Protection: Hic-Up Type, autorecovery
- Over Voltage Protection: Latch Type, AC Power to be recycled for recovery
- Short Circuit Protection: Latch Type, AC Power to be recycled for recovery
- Over Temperature Protection: Autorecovery
- Current Share: Up to 3 supplies connected in parallel
Buy the ABC800-1T48 BEL POWER SOLUTIONS 800W Open Frame Power Supply | myMectronic
Purchase the BEL POWER SOLUTIONS ABC800-1T48 power supply securely online and benefit from our reliable shipping and exceptional customer support.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS ABC8001T48?
You can click on the BUY or RFQ button to purchase ABC8001T48 from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ABC8001T48?
You can download the ABC8001T48 datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of ABC8001T48?
BEL POWER SOLUTIONS
