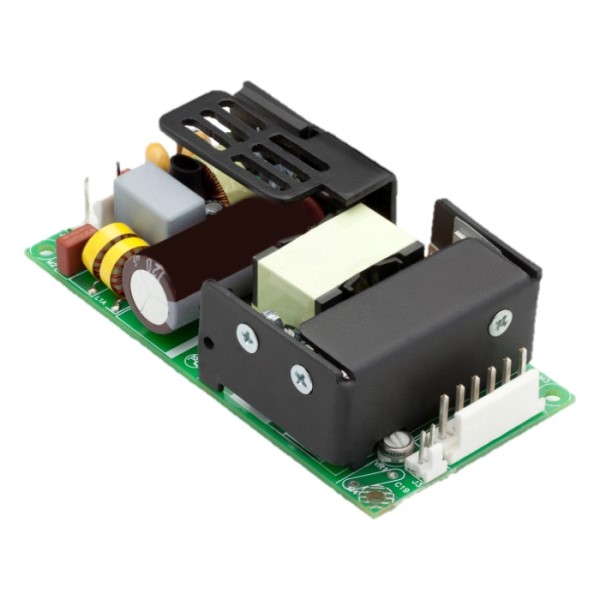

BEL POWER SOLUTIONS ABC601048G 60W AC-DC Power Supply
The BEL POWER SOLUTIONS ABC60 Series AC-DC open-frame power supplies deliver 60W of output power with a wide universal 90-264 VAC input range. Designed for high power density and efficiency, these power supplies minimize power loss and facilitate thermal management. They are ideal for telecom, datacom, industrial equipment, and other applications requiring a compact and reliable power solution. The ABC60 series meets regulatory approvals for environmentally-friendly end products and offers options for Class I or Class II operation.
BEL POWER SOLUTIONS ABC601048G 60W AC-DC Power Supply Specifications:
- Form Factor: 4 x 2 x 1.2 Inch (101.6 x 50.8 x 30.48 mm)
- Convection Cooled: 50 - 65 W
- Outputs: Single to Triple
- Efficiency: > 85%
- No Load Power: < 0.3 W
- IEC Protection Class: Class I (J4), Class II (-2 suffix)
- Conducted EMI: EN 55022-B, FCC Part 15 Level B
- Compliance: IEC / EN / UL 62368-1
- Input Voltage: 90 - 264 VAC
- Input Frequency: 47 to 400 Hz
- Input Current (120 VAC): 1.5 A max.
- Input Current (230 VAC): 0.75 A max.
- Inrush Current (120 VAC): 30 A max.
- Inrush Current (230 VAC): 60 A max.
- Leakage Current (120 VAC): < 500 µA
- Leakage Current (230 VAC): < 1000 µA
- Switching Frequency: Typical 67 kHz
- Output Power: 50 - 65 W
- Line Regulation: ± 0.3%
- Load Regulation: ± 5%
- Transient Response: < 5 ms
- Set Point Tolerance: ± 5%
- Output Voltage Adjustment: ± 10%
- Over Current Protection: 130%
- Over Voltage Protection: 130%
- Isolation Voltage: 4000 VAC/VDC
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to +85°C
- Altitude: 10,000 ft (Operating), 40,000 ft (Non-Operating)
- Reliability: 1.87 million hours (MTBF)
