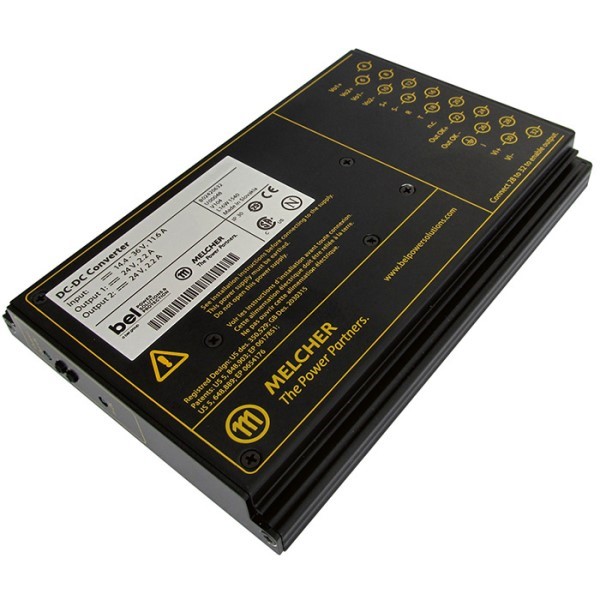

BEL POWER SOLUTIONS BQ26609RG DC-DC Converter
The BEL POWER SOLUTIONS BQ2660-9RG is an extremely compact DC-DC converter designed for demanding applications, particularly in railway environments. It incorporates essential features like input and output filters, signaling, and protection. Key advantages include flexible output power through primary current limitation, high efficiency, excellent reliability, low ripple and RFI noise, full input-to-output isolation, negligible inrush current, over-temperature protection, and input over-/undervoltage lockout. The converter's rugged design, compliance with European railway standards (EN 50155 and EN 50121-3-2), and fully enclosed aluminum case provide robust performance and RFI shielding. It's ideal for modular power supplies and distributed power systems, offering a low-profile design with high reliability.
BEL POWER SOLUTIONS BQ26609RG DC-DC Converter Specifications:
- Wattage: 66 - 132 Watt
- Input Voltage: 14.4 - 36 VDC or 21.6 - 54 VDC
- Output Voltage: 3.3 to 24 VDC
- Efficiency: Up to 90%
- Operating Temperature: 71°C or 50°C
- Compliance: EN 45545 (V106 or later), IEC/EN 60950-1, UL/CSA 60950-1
- Form Factor: 3 U / 4 TE
- Protection: Open and short-circuit proof, surge and transient protection, over-temperature protection, input over-/undervoltage lockout
Buy the BQ2660-9RG BEL POWER SOLUTIONS DC-DC Converter | myMectronic
Purchase the BEL POWER SOLUTIONS BQ2660-9RG DC-DC converter securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS BQ26609RG?
You can click on the BUY or RFQ button to purchase BQ26609RG from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part BQ26609RG?
You can download the BQ26609RG datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of BQ26609RG?
BEL POWER SOLUTIONS
